Ø65 I 4W

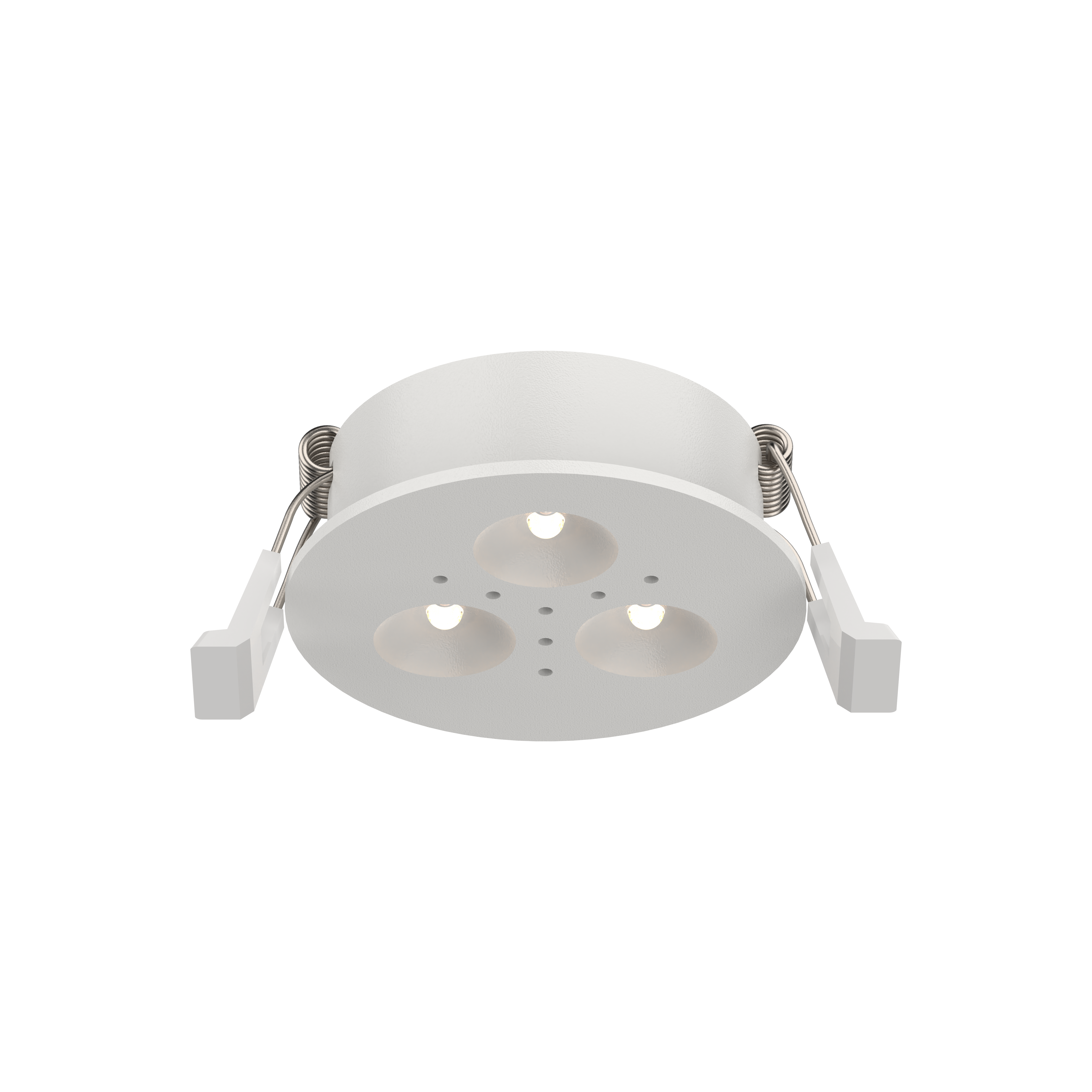

L00522 Spotlight    IP20

Aluminium material and powder coating. Remote LED driver version. High level of visual comfort. Dimmable. CRI>90

The fixing spotlight with decorative metal baffle, visual comfort low glare optic. Uniform distribution and soft light. Spring for easy installation. The basic model comes in white and black colors. Easy lighting demand, for a wide scala of projects, from residential to hotels, restaurants, retail and much more. Customized color finishing, power changes are possible depending on the request and the quantity. Height reduced , high power. 3 LEDs.

TECHICAL DATA

  • 320lm
  • Remote LED Driver
  • Aluminium lighting fixture, powder coated.
  • 300-400mm cable with quick connector.
  • DALI I Triac I 0/1-10V I Tunable white dimming
  • Ceiling, wall recessed.
  • COB LED CRI90+

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L00522

IP20

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium material and powder coating

Ceiling recessed, Ceiling thickness 3-25mm

400-600mm cable with quick connector

SMD CRI90+

Flicker Free, Remote LED Driver version.

Decorative metal baffle, visual comfort low glare optic

0/1-10V I Triac I DALI dimmable

UNIFORM DISTRIBUTION I HEIGHT REDUCED

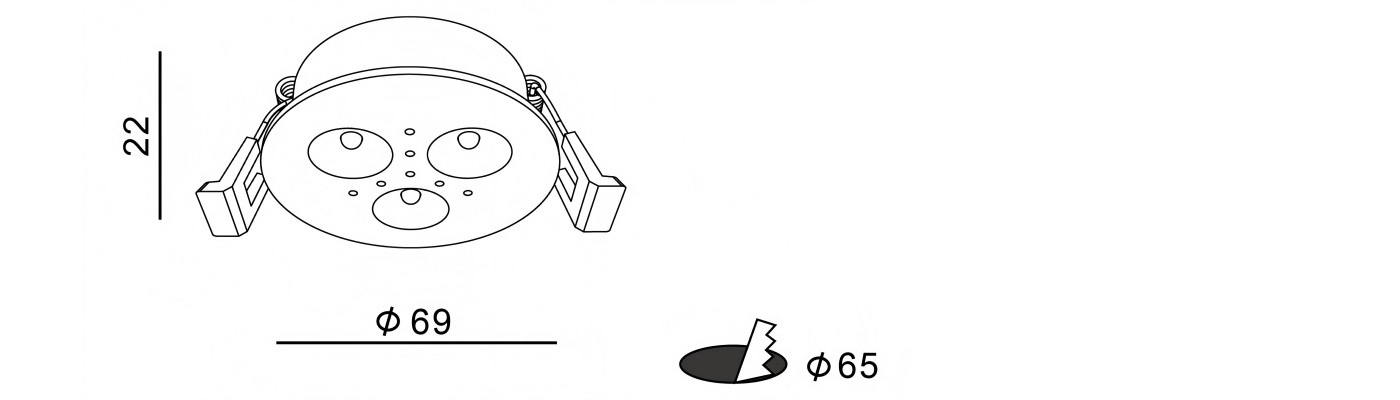

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L00522-4 4W 320lm
69xH22mm
65mm		 400mA

FEATURES

The fixing spotlight with decorative metal baffle, visual comfort low glare optic. Uniform distribution and soft light. Spring for easy installation. The basic model comes in white and black colors. Easy lighting demand, for a wide scala of projects, from residential to hotels, restaurants, retail and much more. Customized color finishing, power changes are possible depending on the request and the quantity. Height reduced , high power. 3 LEDs.

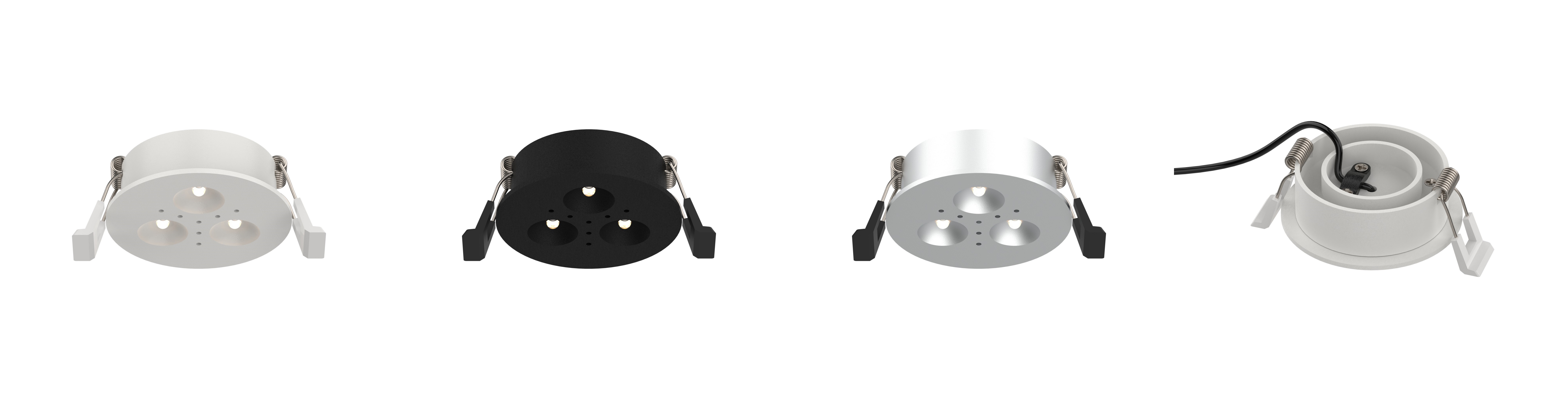

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
4W   400mA
