Ø30 - Ø60

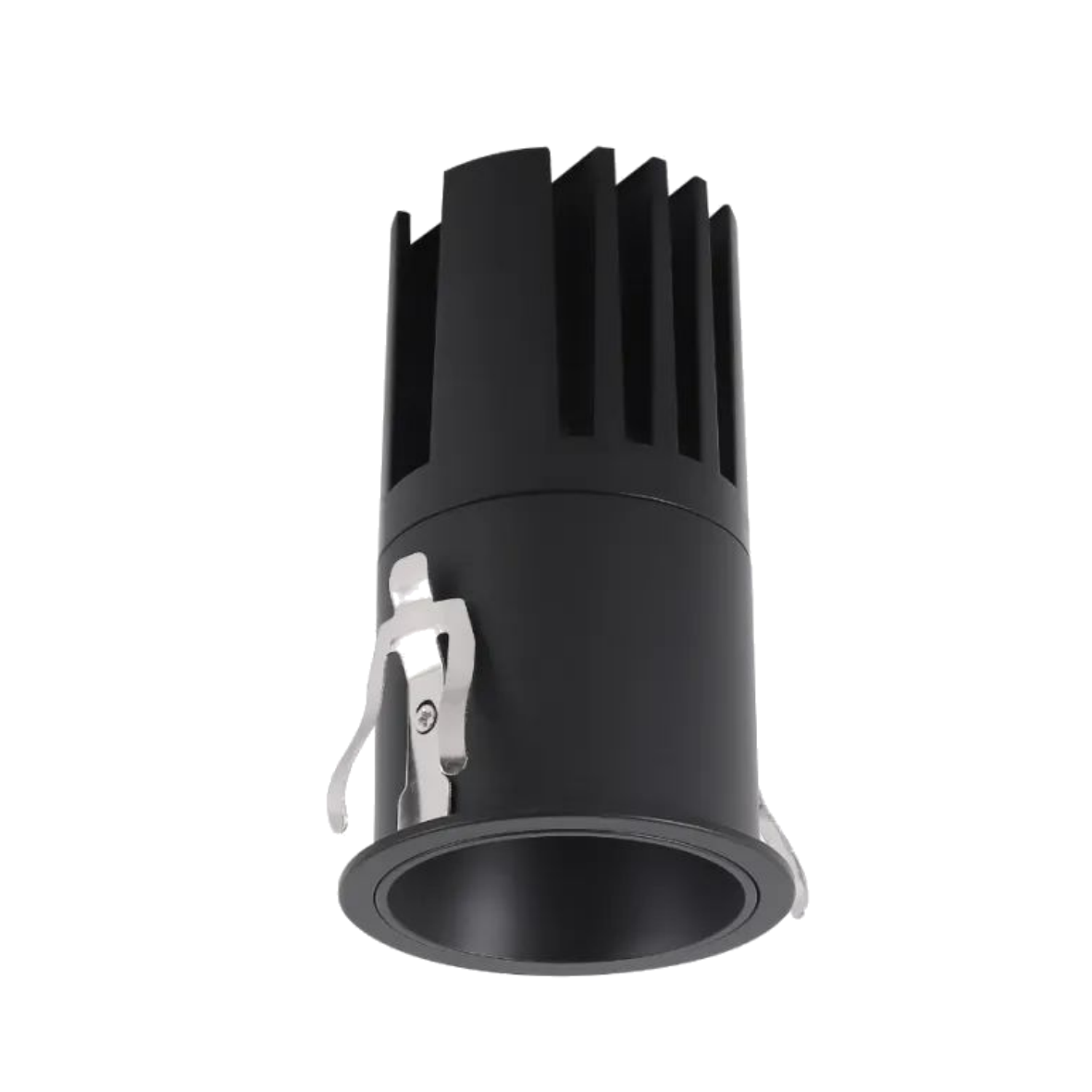

L03058 Spotlight    IP20

Aluminium material and powder coating. Remote LED driver version. High level of visual comfort. Dimmable. CRI>90

The fixing spotlight with decorative metal baffle and trim, visual comfort low glare optic with recessed light source. Uniform distribution and soft light. Spring for easy installation. The basic model comes in white and black colors. Easy lighting demand, for a wide scala of projects, from residential to hotels, restaurants, retail and much more. Customized color finishing, power changes are possible depending on the request and the quantity.

TECHICAL DATA

  • 490-1300lm
  • Remote LED Driver
  • Aluminium lighting fixture, powder coated.
  • 300-400mm cable with quick connector.
  • DALI I Triac I 0/1-10V I Tunable white dimming
  • Ceiling, wall recessed.
  • COB LED CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03058

IP20

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium material and powder coating

Ceiling recessed, Ceiling thickness 3-25mm

400-600mm cable with quick connector

COB LED 3SDCM CRI90+

Flicker Free, Remote LED Driver version.

Deeply recessed light source.

0/1-10V I Triac I DALI Tunable white dimming

HIGH LEVEL OF VISUAL COMFORT AND UNIFORM DISTRIBUTION

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L03058-7 7W 490lm
35xH70mm
30mm		 150mA
L03058-10 10W 700lm
45xH70mm
40mm		 250mA
L03058-12 12W 850lm
55xH72mm
50mm		 300mA
L03058-18 15W 1300lm
65xH85mm
60mm		 450mA

FEATURES

The fixing spotlight with decorative metal baffle and trim, visual comfort low glare optic with recessed light source. Uniform distribution and soft light. Spring for easy installation. The basic model comes in white and black colors. Easy lighting demand, for a wide scala of projects, from residential to hotels, restaurants, retail and much more. Customized color finishing, power changes are possible depending on the request and the quantity.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
7W   150mA
10W   250mA
12W   300mA
15W   450mA
