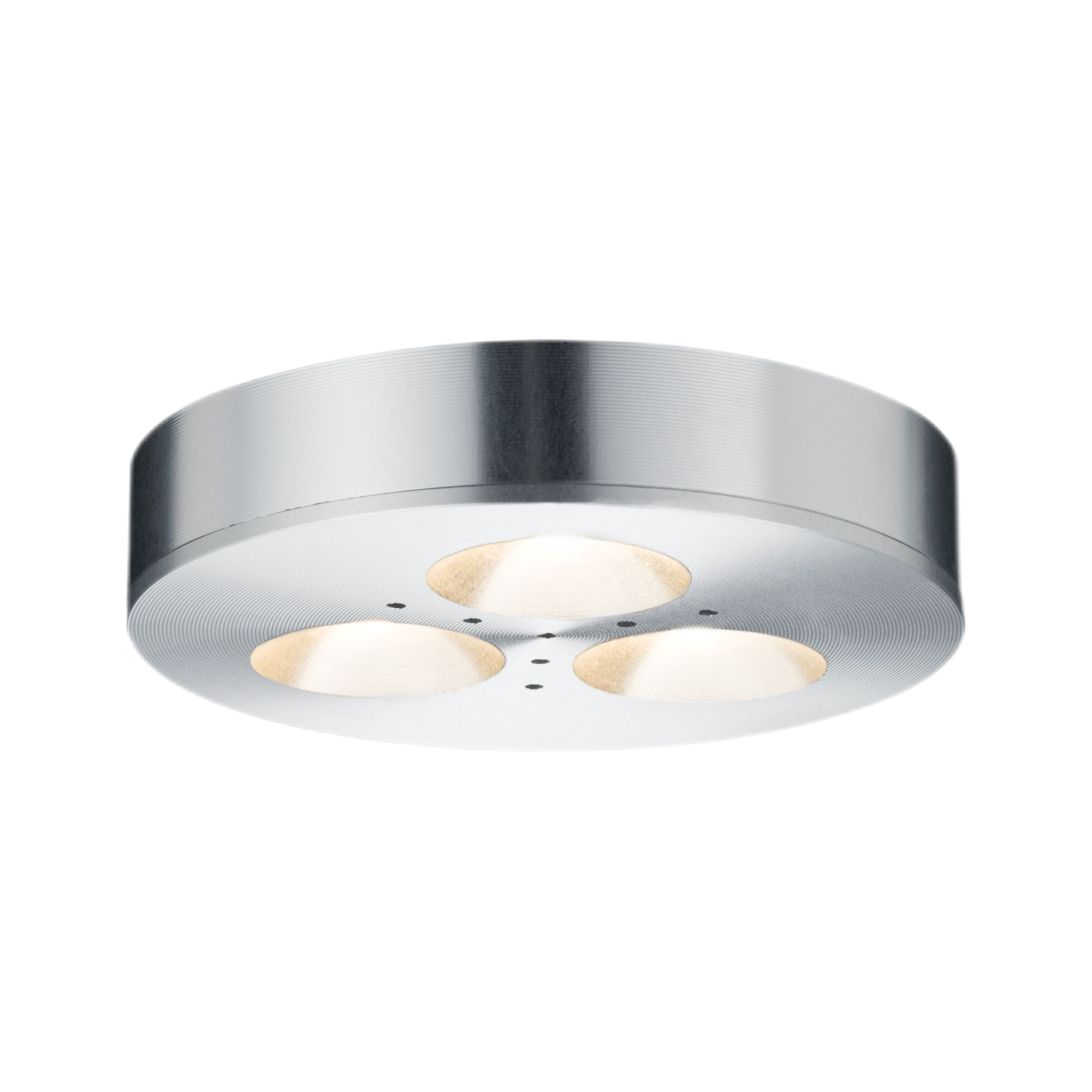

Surface Mounted I 4W

L00523 Spotlight    IP20

Aluminium material and powder coating. Remote LED driver version. High level of visual comfort. Dimmable. CRI>90

The fixing spotlight with decorative metal baffle, visual comfort low glare optic. Uniform distribution and soft light. Surface mounted installation. The basic model comes in white silver and black colors. Easy lighting demand, for a wide scala of projects, from residential to hotels, restaurants, retail and much more. Customized color finishing, power changes are possible depending on the request and the quantity. Height reduced , high power. 3 LEDs.

TECHICAL DATA

  • 320lm
  • Remote LED Driver
  • Aluminium lighting fixture, powder coated.
  • 300-400mm cable with quick connector.
  • DALI I Triac I 0/1-10V I Tunable white dimming
  • Surface Mounted
  • SMD LED CRI90+

Product is Europe Standard & CE Certificate.

INTERIOR LED SURFACE MOUNTED SPOTLIGHT

L00523

IP20

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium material and powder coating

Surface Mounted

400-600mm cable with quick connector

SMD CRI90+

Flicker Free, Remote LED Driver version.

Decorative metal baffle, visual comfort low glare optic

0/1-10V I Triac I DALI dimmable

UNIFORM DISTRIBUTION I HEIGHT REDUCED

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L00523-4 4W 320lm
69xH22mm
mm		 400mA

FEATURES

The fixing spotlight with decorative metal baffle, visual comfort low glare optic. Uniform distribution and soft light. Surface mounted installation. The basic model comes in white silver and black colors. Easy lighting demand, for a wide scala of projects, from residential to hotels, restaurants, retail and much more. Customized color finishing, power changes are possible depending on the request and the quantity. Height reduced , high power. 3 LEDs.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
4W   400mA
