Ø55 I Ø75 I Ø95 I Ø115

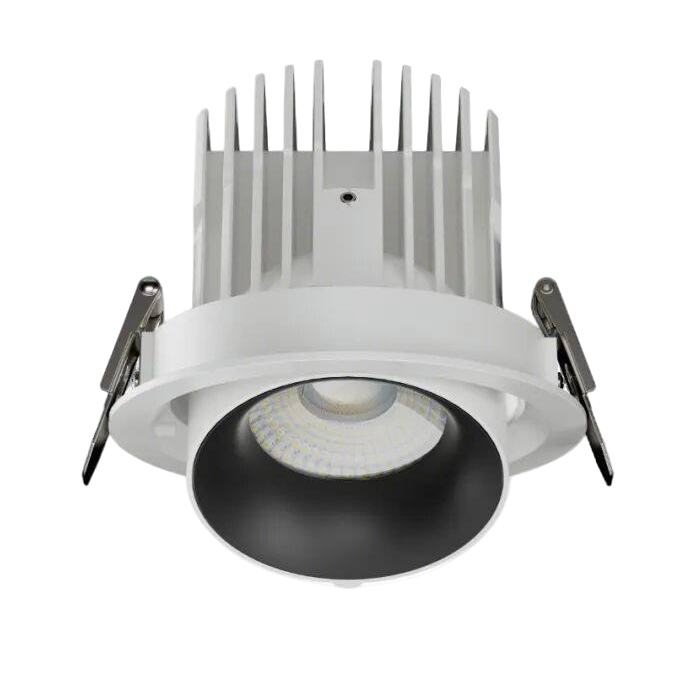

L03650 Spotlight    IP20

Aluminium die-casting material and powder coating. Remote LED driver version. High level of visual comfort. Dimmable.

Die casting aluminum material and powder coating. Double adjustability, 45°adjustable 360°rotation spotlight, Luminaires in this line have modular design. They comprise a LED light module, a metal baffle and a metal mounting frame. One housing achieved multiple options and different light distributions for a wide varirty of applications, the new creating that meets the needs of your residential and commercial projects. The spotlight offer homogeneous and uniform light distribution. deep cut-off angle 68°. High level of visual comfort low glare optic with recessed light source. Achieved visible lighting effect, invisible lighting fixtures. High Definition optical lenses in thermoplastic material. cross lighting. Specialized optics and optical filters can be ordered. Available for four different output beams 15/24/36/55°. The decorative secondary optic available in multiple color finishing, Black I White I Chromed Silver. The basic model comes in white color. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation with spring, The rotation and the right angled inclination make this product to be highly flexible and easy to handle. It is presented to its customers as a clean and non-dazzling product. Famous brand LED chips CRI90+ 2steps. Smart lighting, achieved CASAMBI I DALI DT8 dimmable.

TECHICAL DATA

  • 800-3200lm
  • Remote LED Driver
  • Aluminium die-casting lighting fixture, powder coated.
  • 300-400mm cable with quick connector.
  • DALI I Triac I 0/1-10V I Tunable white dimming
  • Ceiling, wall recessed.
  • Famous brand COB LED CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03650

IP20

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die casting material and powder coating

Ceiling recessed, Ceiling thickness 3-25mm

400-600mm cable with quick connector

Famous brand COB LED 2SDCM

Flicker Free, Remote LED Driver version.

Deeply recessed light source. High level of visual comfort

0/1-10V I Triac I DALI Tunable white dimming

HIGH LEVEL OF VISUAL COMFORT AND UNIFORM DISTRIBUTION

Code System Power
W
Output Lumen
lm
Dimension
mm
Cut Hole
mm
Power Supply
mA
L03650-10 10W 800lm
60xH80mm
55mm
250mA
L03650-15 15W 1200lm
85xH90mm
75mm
300mA
L03650-30 30W 2400lm
105xH100mm
95mm
750mA
L03650-40 40W 3200lm
130xH115mm
115mm
1000mA

FEATURES

Die casting aluminum material and powder coating. Double adjustability, 45°adjustable 360°rotation spotlight, Luminaires in this line have modular design. They comprise a LED light module, a metal baffle and a metal mounting frame. One housing achieved multiple options and different light distributions for a wide varirty of applications, the new creating that meets the needs of your residential and commercial projects. The spotlight offer homogeneous and uniform light distribution. deep cut-off angle 68°. High level of visual comfort low glare optic with recessed light source. Achieved visible lighting effect, invisible lighting fixtures. High Definition optical lenses in thermoplastic material. cross lighting. Specialized optics and optical filters can be ordered. Available for four different output beams 15/24/36/55°. The decorative secondary optic available in multiple color finishing, Black I White I Chromed Silver. The basic model comes in white color. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation with spring, The rotation and the right angled inclination make this product to be highly flexible and easy to handle. It is presented to its customers as a clean and non-dazzling product. Famous brand LED chips CRI90+ 2steps. Smart lighting, achieved CASAMBI I DALI DT8 dimmable.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
10W   250mA
15W   300mA
30W   750mA
40W   1000mA
