250x43 I 20W I Adjustable

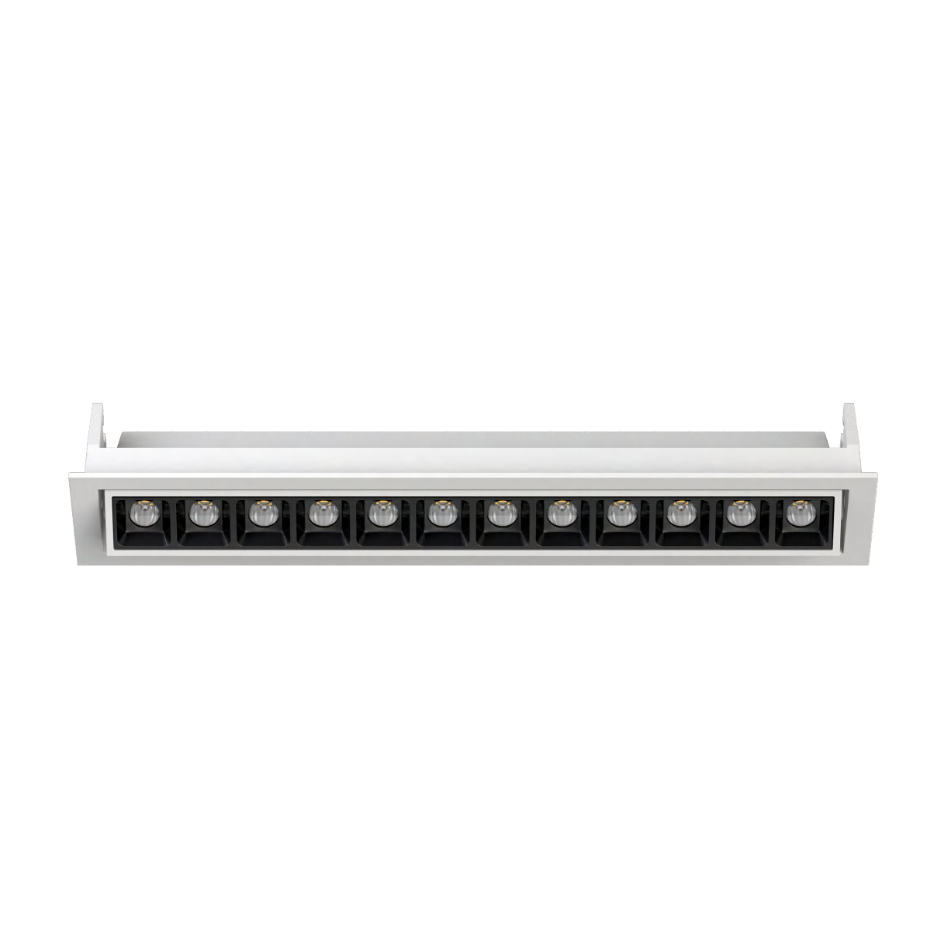

L03373 Spotlight    IP20

Adjustable slim trim spotlight, aluminium die-casting material and powder coating. -Romote LED driver version. Flicker-Free

Adjustable slim trim spotlight, an ideal accent lighting in residential or commercial areas. it comprise a LED spotlight module, a ABS baffle and a metal mounting frame. One housing, multiple options, with different light distributions for a wide varirty of applications. Easy installations. Visual comfort low glare optic with deeply recessed light source. UGR<19. High Definition optics. -Uniform distribution. Easy installation. 12LEDs, 36V, CRI90 20W White I Black color finishing as standard. Customized color finishing, power changes are possible depending on the request and the quantity.

TECHICAL DATA

  • 1600lm
  • Remote LED Driver
  • Aluminium lighting fixture, powder coated.
  • Flicker Free CRI90+ UGR<19
  • DALI I Triac I 0/1-10V dimming
  • CEILING RECESSED
  • Famous brand LED chips CRI90+ Dimmable

Product is Europe Standard & CE Certificate.


INTERIOR LED RECESSED DOWN SPOTLIGHT

L03373

IP20

CLASS III

CEILING RECESSED

400-600mm cable with quick connector.

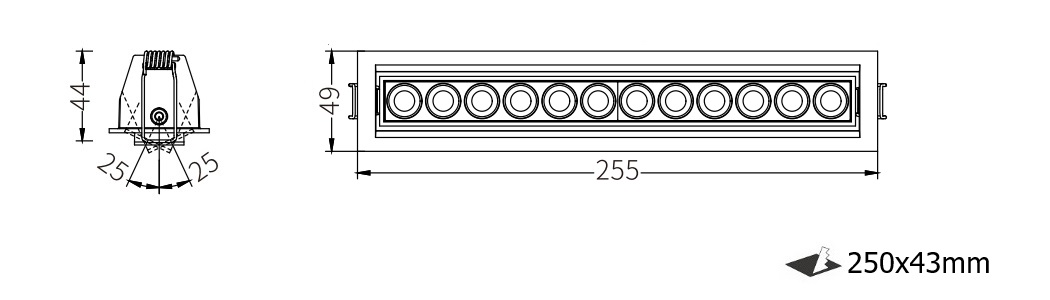

250x43 mm

Eyes friendly CE certificate RoHS standard

CRI90+ Bridgelux branded SMD

Triac I 0/1-10V I DALI dimmable

Tunable White dimming

Warranty 5 Years

UNIFORM DISTRIBUTION

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L03373-20 12x2W 1600lm
255x49xH44mm
250x43mm
 600mA

FEATURES

aluminium die-casting material and powder coating. -Romote LED driver version. Flicker-Free. Adjustable slim trim spotlight, an ideal accent lighting in residential or commercial areas. it comprise a LED spotlight module, a ABS baffle and a metal mounting frame. One housing, multiple options, with different light distributions for a wide varirty of applications. Easy installations. Visual comfort low glare optic with deeply recessed light source. UGR<19. High Definition optics. -Uniform distribution. Easy installation. 12LEDs, 36V, CRI90 20W White I Black color finishing as standard. Customized color finishing, power changes are possible depending on the request and the quantity.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
2W   600mA
