140x37 I 10W

L03380 Wall washer    IP20

Fixing wall washer, aluminium die-casting material and powder coating. -Romote LED driver version. Flicker-Free

Upper wall washer. the lighting fixture is aluminium die-casting module and a ABS baffle . Ceiling , wall recessed installation. Wall washer, to illuminate the wall, so that the wall looks clean, clear, uniform and comfortable, non- dazzling product. The biggest feature of this light is the whole wall wash, with our wall washing light , you can evenly illuminate the whole wall without dark area. UGR<19. 5LEDs, 15V, CRI90 2W/LED White I Black color finishing as standard. Customized color finishing, power changes are possible depending on the request and the quantity. dimmable

TECHICAL DATA

  • 800lm
  • Remote LED Driver
  • Aluminium die casting lighting fixture, powder coated.
  • Flicker Free CRI90+ UGR<19
  • DALI I Triac I 0/1-10V dimming

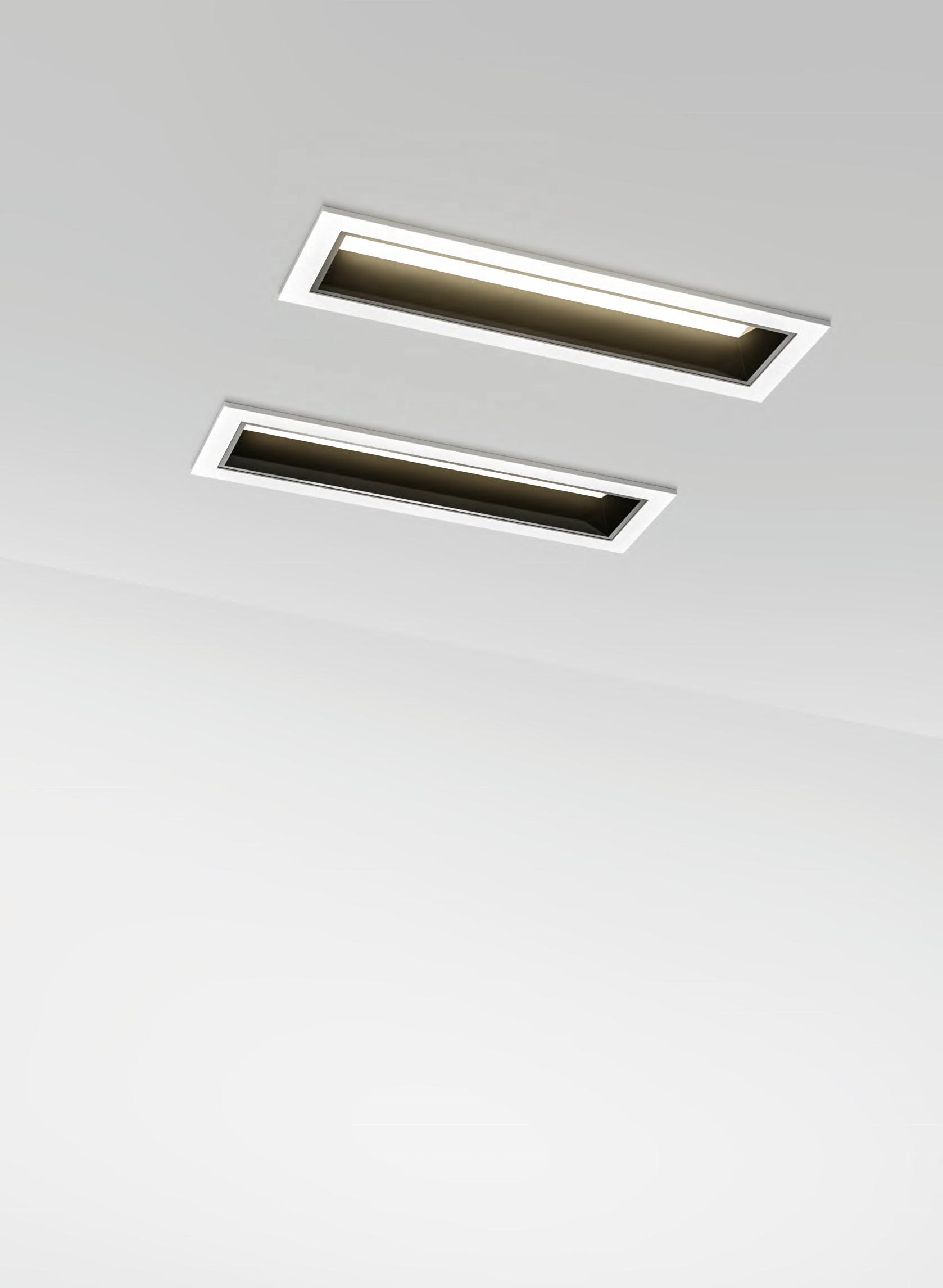

  • CEILING RECESSED
  • OSRAM branded LED chips CRI90+

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03380

IP20

CLASS III

CEILING RECESSED

400-600mm cable with quick connector.

140x37 mm

Eyes friendly CE certificate RoHS standard

CRI90+ OSRAM branded SMD

Triac I 0/1-10V I DALI dimmable

Tunable White dimming

Warranty 5 Years

VERY UNIFORM DISTRIBUTION

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L03380-10 5x2W 800lm

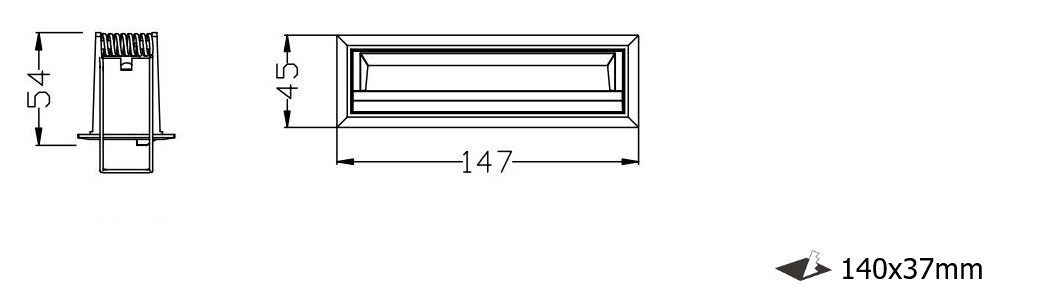

147x45xH49mm
140x37mm		 600mA

FEATURES

Fixing wall washer, aluminium die-casting material and powder coating. and a ABS baffle. -Romote LED driver version. Flicker-Free. TCeiling , wall recessed installation. Wall washer, to illuminate the wall, so that the wall looks clean, clear, uniform and comfortable, non- dazzling product. The biggest feature of this light is the whole wall wash, with our wall washing light , you can evenly illuminate the whole wall without dark area. UGR<19. 5LEDs, 15V, CRI90 2W/LED White I Black color finishing as standard. Customized color finishing, power changes are possible depending on the request and the quantity. dimmable

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
2W   600mA
