5° I 8°

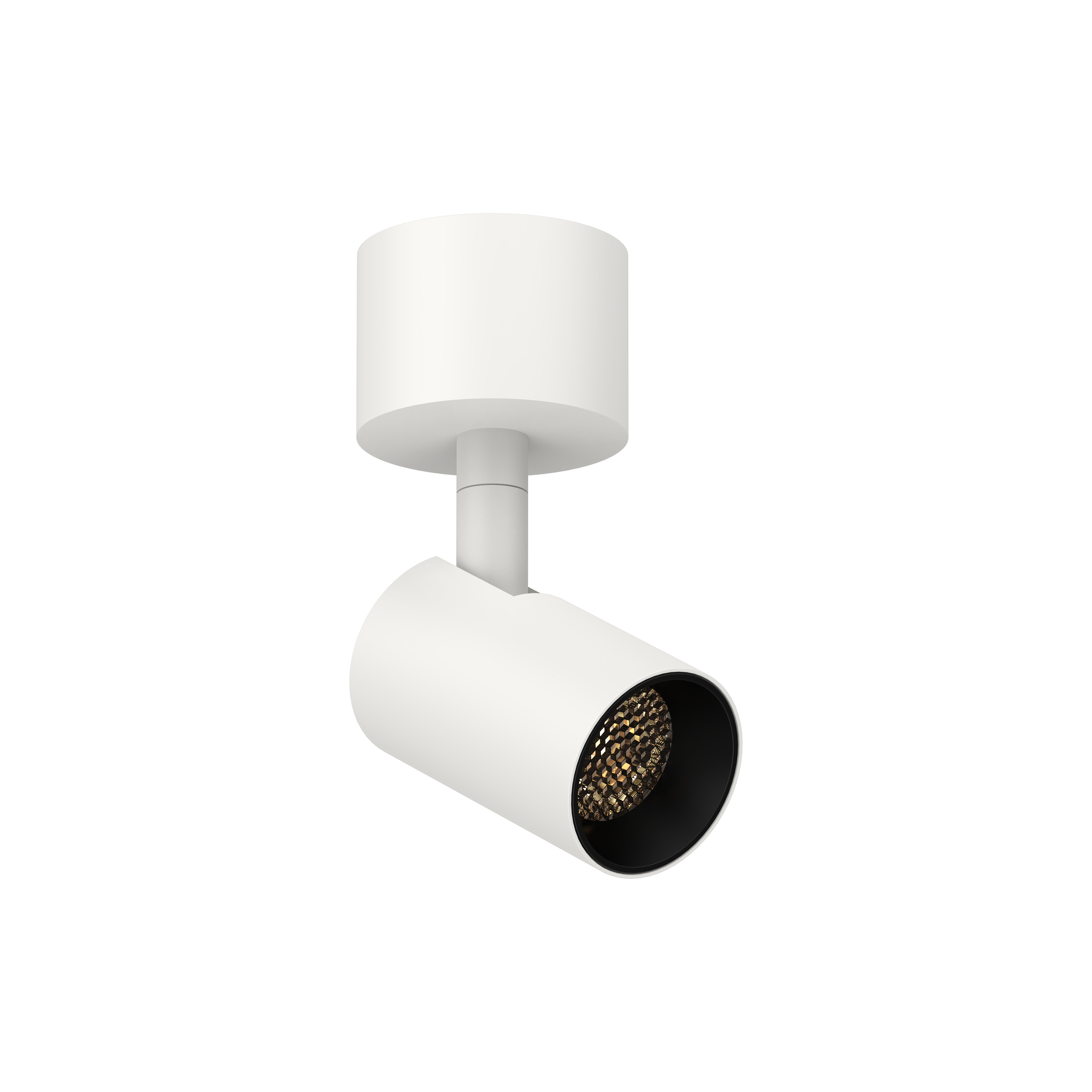

L03351 Spotlight    IP40

Aluminium material and powder coating. Built-in LED driver version. High level of visual comfort. 90°adjustable 355°rotation.

Double adjustability， 90°adjustable 355°rotation spotlight , Visual comfort low glare optic , recessed light source. output beams 5° / 8° A super narrow beam angle through out its range. A strong delineated line of light without spill light, ideal to create geometrical patterns or to accentuate architectural beauty. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Surface mounted installation, built-in LED Driver, A small downlight characterized by innovative and surprising solutions.The rotation and the right angled inclination make this product to be highly flexible and easy to handle.It is ideal for lighting architectural and artistic details up. Famous brand LED chips CRI90+ 3steps. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

TECHICAL DATA

  • 500lm
  • Built-in Driver
  • Aluminium lighting fixture, powder coated.
  • Surface Mounted.
  • DALI I Triac I 0/1-10V I CASAMBI I DT8
  • 300-400mm cable with quick connector.
  • COB LED CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED SURFACE MOUNTED DOWN SPOTLIGHT

L03351

IP40

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

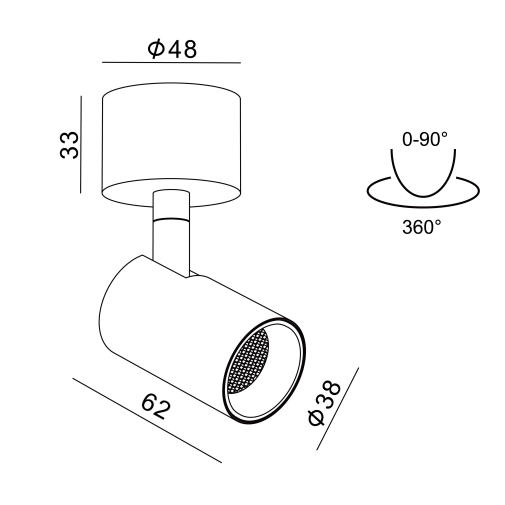

90° vertical tilting, 360° horizontal rotation and pull-out

Surface Mounted.

Aluminium lighting fixture, powder coated.

COB LED CRI90+ 3SDCM

Flicker Free I 5° | 8°

Built-in Driver

DALI I Triac I 0/1-10V

HIGHLY FLEXIBLE AND UNIFORM DISTRIBUTION

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L03351-5 5W 500lm
38xH62mm
mm		 125mA

FEATURES

Double adjustability， 90°adjustable 355°rotation spotlight , Visual comfort low glare optic , recessed light source. output beams 5° / 8° A super narrow beam angle through out its range. A strong delineated line of light without spill lignt, ideal to create geometrical patterns or to accentuate architectural beauty. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Surface mounted installation, built-in LED Driver, A small downlight characterized by innovative and surprising solutions.The rotation and the right angled inclination make this product to be highly flexible and easy to handle.It is ideal for lighting architectural and artistic details up. Famous brand LED chips CRI90+ 3steps. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

Built-in Driver Accessoires Beam Angle Color Temperature Finishes
5W   125mA

The beauty of Jet-glory cylinder lighting fixtures is the consequence of an honest, crystal and precise way of thinking. They are beautiful and pure, just like the technology which is inside them. All the metallic parts of Jet-glory cylinder lighting fixtures are made through cutting machines which operate by stock removal. Jet-glory cylinder lighting fixtures is dug from the solid aluminum bar with numerically control LED machines, the component is first subjected to a buffing treatment, to be polished or satinised. It is then dipped into galvanising baths which oxidise the surface and give it hardness and weather resistance. through electroplating, painting or powder coating and brushed specify The quality of Jet-glory mechanical workings can be recognised even by touching them. The surface of the metallic components indicates the carefulness in the manufacture. The design of the best LED lighting fixture is closely related to the study of the thermal paths and to the solutions that guarantee the ideal working temperature, for each single application.
