Ø55 I 5° I 8°

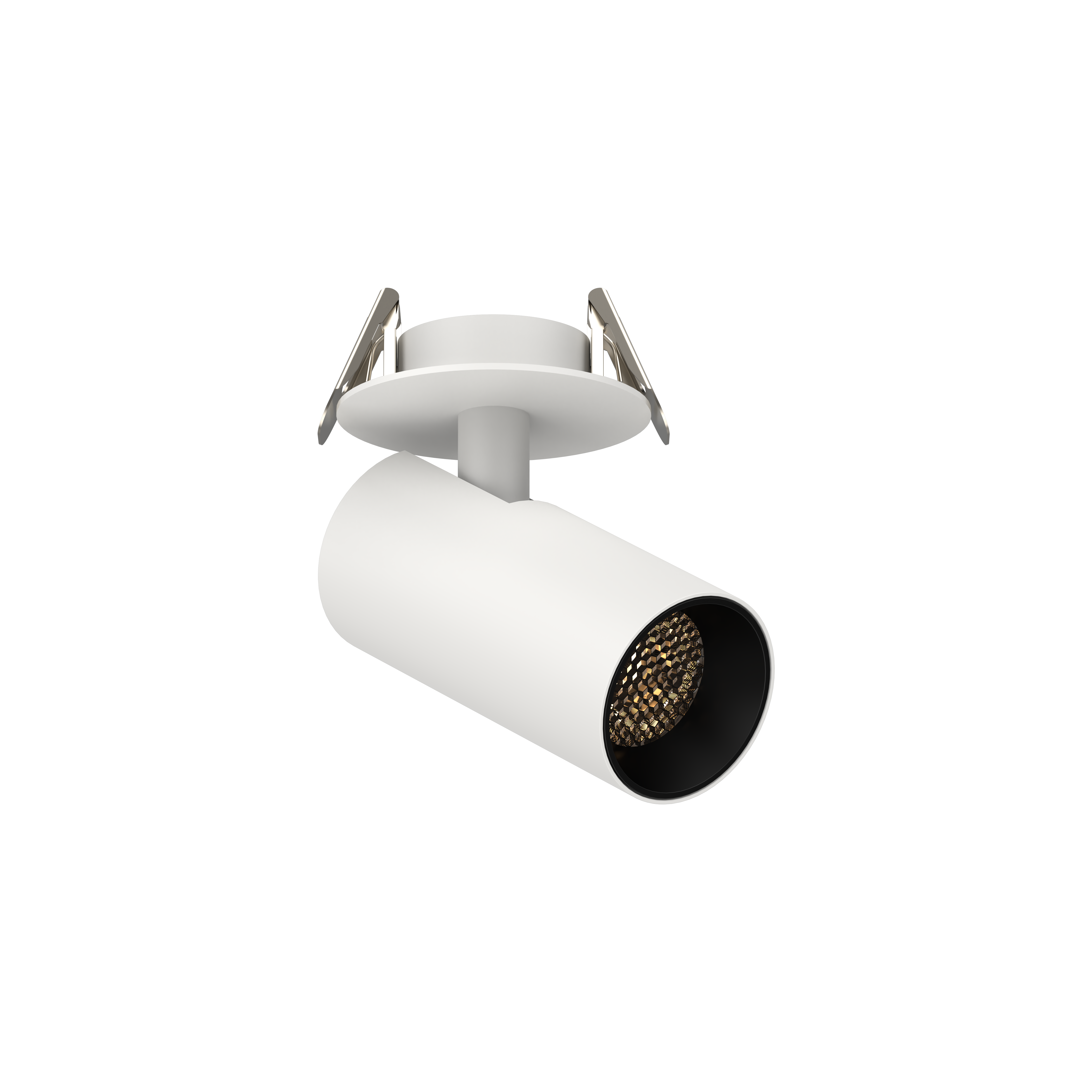

L03350 Spotlight    IP40

Aluminium material and powder coating. Remote LED driver version. High level of visual comfort. 90°adjustable 355°rotation.

Double adjustability， 90°adjustable 355°rotation spotlight , Visual comfort low glare optic , recessed light source. available for four different output beams 15/24/36/50°. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation with spring, A small downlight characterized by innovative and surprising solutions.The rotation and the right angled inclination make this product to be highly flexible and easy to handle.It is ideal for lighting architectural and artistic details up. High Definition optical lenses in thermoplastic material,uniform distribution. Famous brand LED chips CRI90+ 3steps. Smart lighting, achieved CASAMBI I DALI DT8 dimmable. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

TECHICAL DATA

  • 900lm
  • Remote LED Driver
  • Aluminium lighting fixture, powder coated.
  • Ceiling Recessed.
  • DALI I Triac I 0/1-10V I CASAMBI I DT8
  • 300-400mm cable with quick connector.
  • COB LED CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03350

IP40

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

90° vertical tilting, 360° horizontal rotation and pull-out

Ceiling Recessed.

Aluminium lighting fixture, powder coated.

COB LED CRI90+ 3SDCM

Flicker Free I Deeply recessed light source.

Remote LED Driver

DALI I Triac I 0/1-10V I CASAMBI I DT8

HIGHLY FLEXIBLE AND UNIFORM DISTRIBUTION

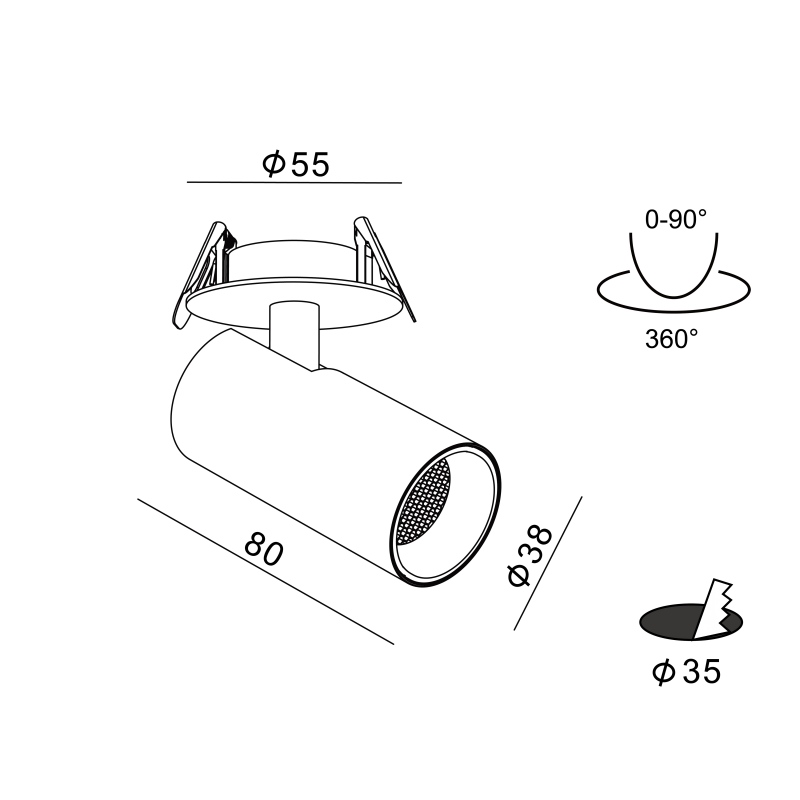

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L03350-9 9W 900lm
38xH80mm
55mm		 225mA

FEATURES

Double adjustability， 90°adjustable 355°rotation spotlight , Visual comfort low glare optic , recessed light source. available for four different output beams 15/24/36/50°. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation with spring, A small downlight characterized by innovative and surprising solutions.The rotation and the right angled inclination make this product to be highly flexible and easy to handle.It is ideal for lighting architectural and artistic details up. High Definition optical lenses in thermoplastic material,uniform distribution. Famous brand LED chips CRI90+ 3steps. Smart lighting, achieved CASAMBI I DALI DT8 dimmable. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
9W   225mA

The beauty of Jet-glory cylinder lighting fixtures is the consequence of an honest, crystal and precise way of thinking. They are beautiful and pure, just like the technology which is inside them. All the metallic parts of Jet-glory cylinder lighting fixtures are made through cutting machines which operate by stock removal. Jet-glory cylinder lighting fixtures is dug from the solid aluminum bar with numerically control LED machines, the component is first subjected to a buffing treatment, to be polished or satinised. It is then dipped into galvanising baths which oxidise the surface and give it hardness and weather resistance. through electroplating, painting or powder coating and brushed specify The quality of Jet-glory mechanical workings can be recognised even by touching them. The surface of the metallic components indicates the carefulness in the manufacture. The design of the best LED lighting fixture is closely related to the study of the thermal paths and to the solutions that guarantee the ideal working temperature, for each single application.
