Ø85 I Ø110 I Ø125

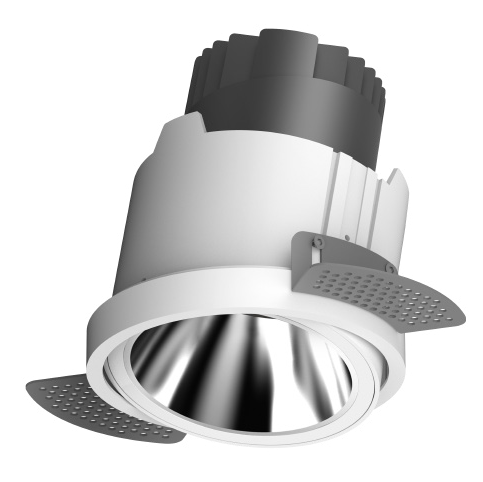

L02090 Spotlight    IP20

Aluminum die casting material and powder coating. Remote LED driver version.

A complete range of recessed LED down lights whose compact conical design delivers excellent visual comfort, energy efficiency, easy installation and good architectural integration. They comprise a LED light module,and a metal mounting frame. It facilitates the installation by giving the opportunity to the installer to place the mounting frame in advance. No need to worry for the lighting modules in further finishing of the room, as the spotlight modules can be pushed into the frame afterwards, and take it off the mounting frame by pushing again. Combines the latest LED technology and a very efficient conical system designed to combine high performance with excellent glare protection. Available for Trim and No Trim installations and fixed, adjustable and Wall-Washer versions. The fixed and adjustable LED versions are available with 3 types of output beam angles. To ensure complete coherency in the same installation, the Wall-Washer version is available with the same LED options as the fixed and adjustable versions. L02090 is adjustable spotlight, trimless, aluminum die casting material and powder coating. Remote LED driver version. The decorative secondary optic available in multiple color finishing, Black I White I Chromed I Golden. The spotlight offer homogeneous and uniform light distribution. High Definition optical lenses in thermoplastic material. One housing achieved multiple options and different light distributions for a wide varirty of applications. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation ceiling recessed. CREE branded LED chips CRI90+ 2steps. Smart lighting, achieved CASAMBI I DALI 2. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

TECHICAL DATA

  • 600-2000lm
  • Remote LED Driver
  • Aluminum die casting lighting fixture and powder coating
  • Flicker Free CRI90+ UGR<19
  • DALI 2 I CASAMBI
  • Ceiling Recessed Trimless
  • CREE branded LED chips

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L02090

IP20

CLASS III

Adjustable I Trimless

ECO Energy Saving

Flicker Free

Eyes friendly CE certificate RoHS standard

CRI90+ CREE branded COB LED

Europe Standard & CE Certificate.

400-600mm cable with quick connector

DALI 2 I CASAMBI I 0-10V

A single lighting solution with down spotlight

Code System Power
W
Output Lumen
lm

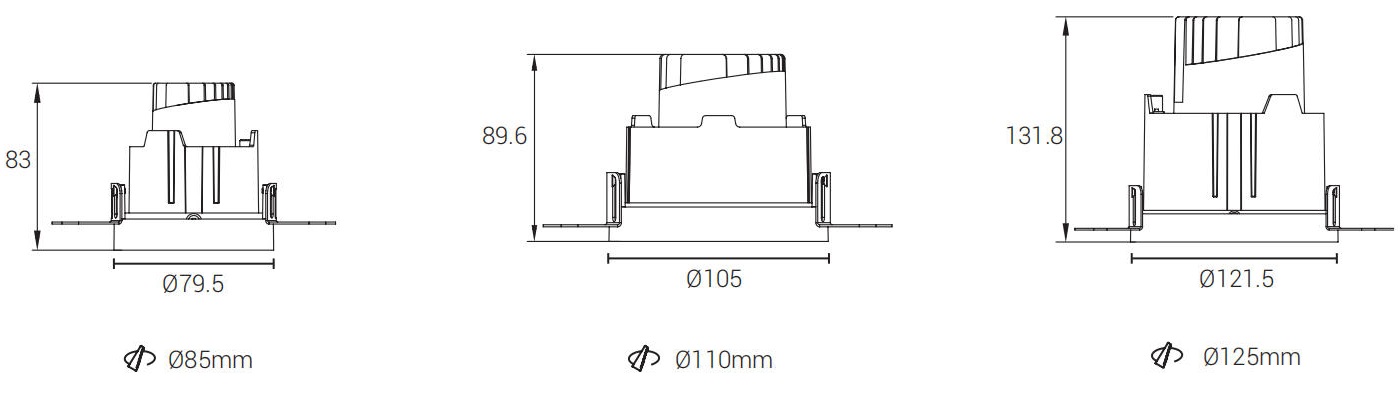

Dimension
mm
Cut Hole
mm
Power Supply
mA
L02090-6 6W 600lm
80xH83mm
85mm
150mA
L02090-12 12W 1200lm
105xH90mm
110mm
300mA
L02090-20 20W 2000lm
122xH132mm
125mm
500mA

FEATURES

L02090 is adjustable spotlight, trimless, aluminum die casting material and powder coating. Remote LED driver version. The decorative secondary optic available in multiple color finishing, Black I White I Chromed I Golden. The spotlight offer homogeneous and uniform light distribution. High Definition optical lenses in thermoplastic material. One housing achieved multiple options and different light distributions for a wide varirty of applications. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation ceiling recessed. CREE branded LED chips CRI90+ 2steps. Smart lighting, achieved CASAMBI I DALI 2. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
6W   150mA
12W   300mA
20W   500mA
