Ø400 I Ø600 I Ø800

L05009 General Lighting    IP20

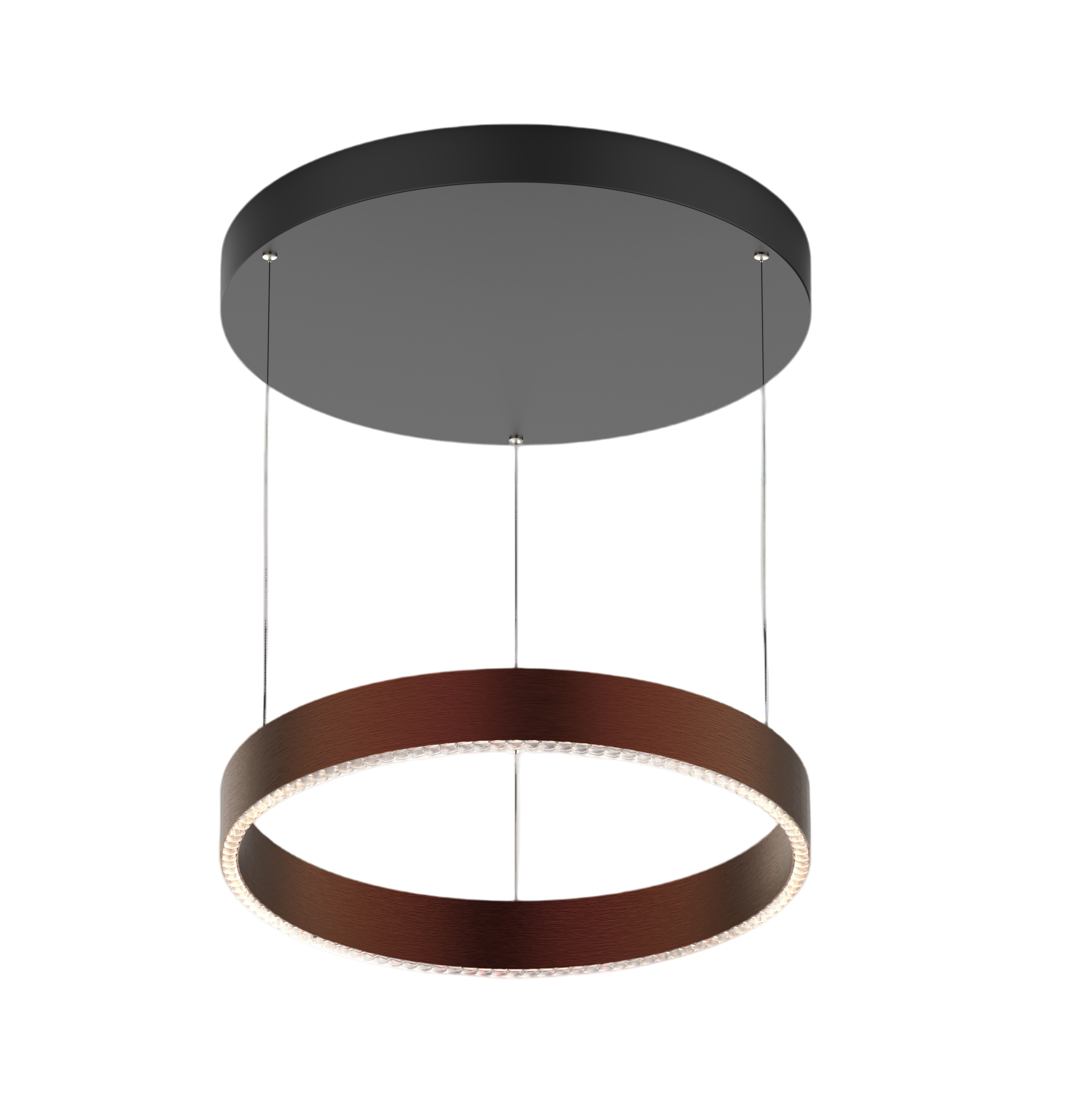

Pendant Lighting, One-piece circular shape. Remote LED Driver version, 5years warranty.

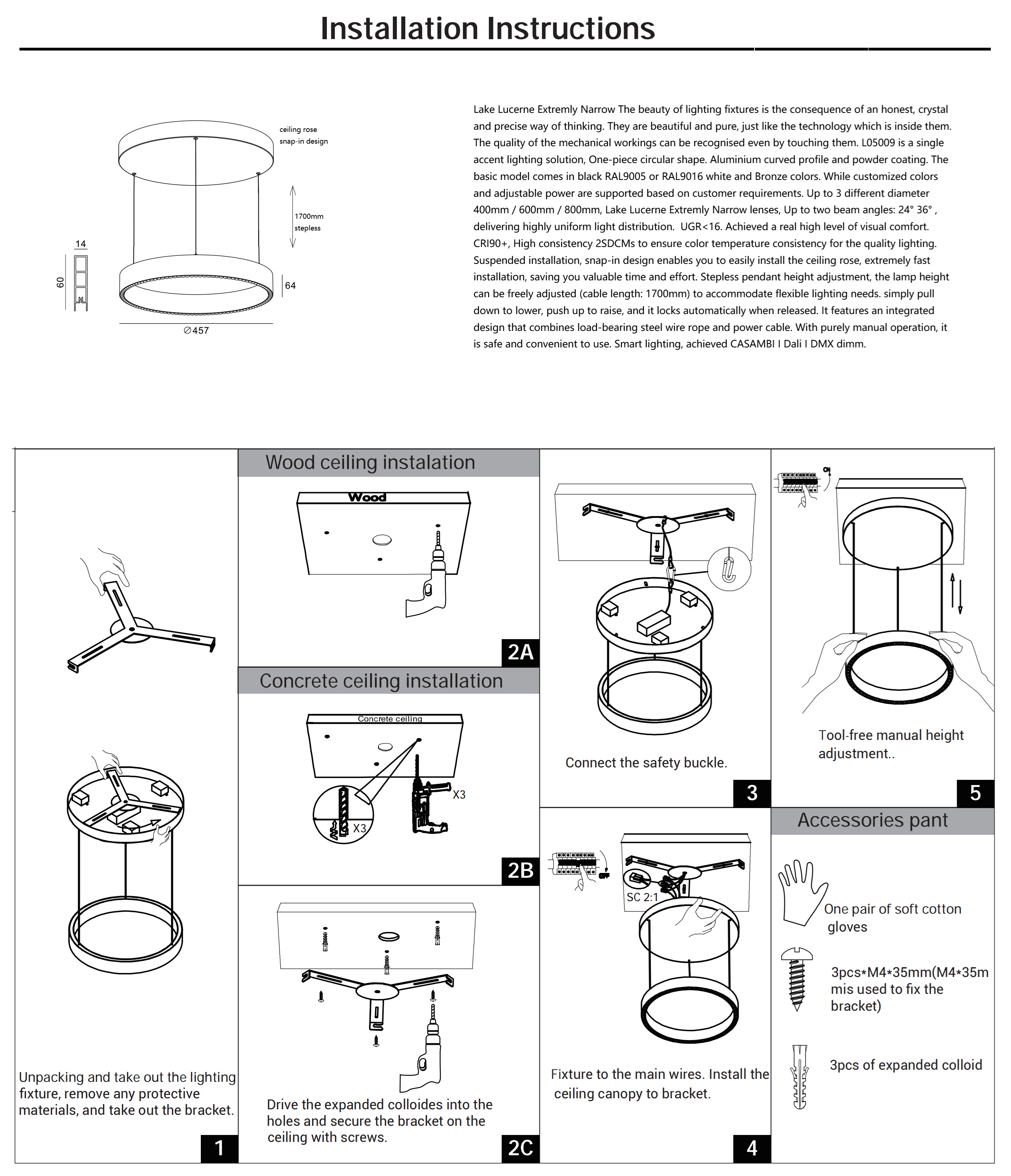

The beauty of lighting fixtures is the consequence of an honest, crystal and precise way of thinking. They are beautiful and pure, just like the technology which is inside them. The quality of the mechanical workings can be recognised even by touching them. L05009 is a single accent lighting solution, One-piece circular shape. Aluminium curved profile and powder coating. The basic model comes in black RAL9005 or RAL9016 white and Bronze colors. While customized colors and adjustable power are supported based on customer requirements. Up to 3 different diameter 400mm / 600mm / 800mm, Lake Lucerne Extremly Narrow lenses, Up to two beam angles: 24° 36° , delivering highly uniform light distribution.  UGR<16. Achieved a real high level of visual comfort. CRI90+, High consistency 2SDCMs to ensure color temperature consistency for the quality lighting. Suspended installation, snap-in design enables you to easily install the ceiling rose, extremely fast installation, saving you valuable time and effort. Stepless pendant height adjustment, the lamp height can be freely adjusted (cable length: 1700mm) to accommodate flexible lighting needs. simply pull down to lower, push up to raise, and it locks automatically when released. It features an integrated design that combines load-bearing steel wire rope and power cable. With purely manual operation, it is safe and convenient to use. Smart lighting, achieved CASAMBI I Dali I DMX dimm.

TECHICAL DATA

  • 2000-4000lm
  • Remote LED Driver
  • Aluminium lighting fixture and powder coating
  • Flicker Free CRI90+ UGR<19
  • DALI I CASAMBI
  • Ceiling Suspended
  • Bridgelux branded LED chips

Product is Europe Standard & CE Certificate.

ALUMINIUM PROFILE LINEAR DOWN LIGHT

L05009

IP20

CLASS III

Pendant Lighting

ECO Energy Saving

Flicker Free

Eyes friendly CE certificate RoHS standard

CRI90+ Bridgelux branded SMD LED

Europe Standard & CE Certificate.

400-600mm cable with quick connector

DALI I CASAMBI Dinming

A single lighting solution with linear down option

Code System Power
W
Output Lumen
lm

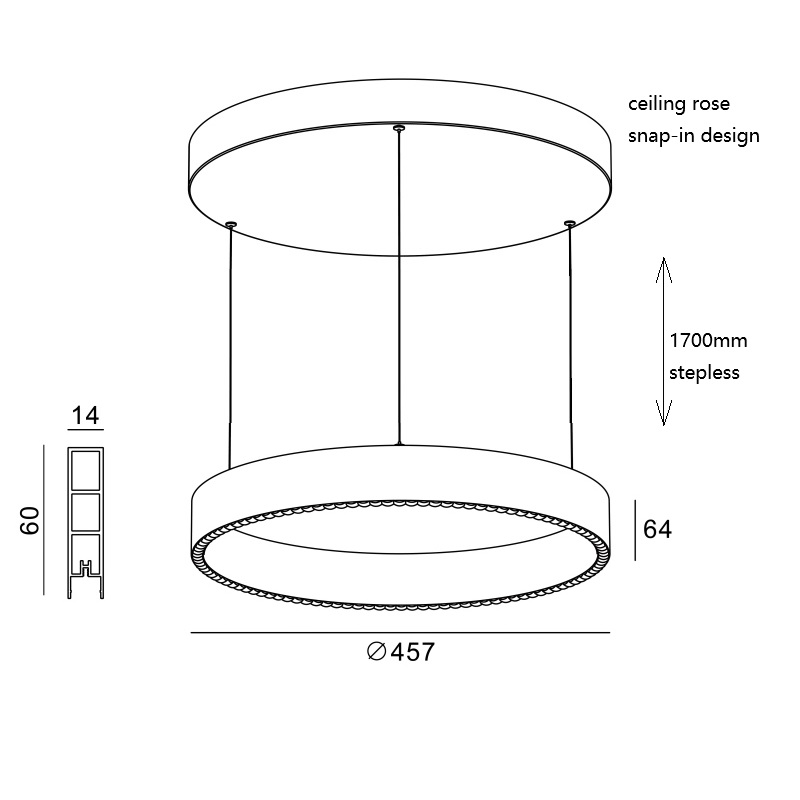

Dimension
mm
Cut Hole
mm
Power Supply
mA
L05009-20 20W 2000lm
D457xW16xH60mm
mm
500mA
L05009-30 30W 3000lm
D600xW16xH60mm
mm
750mA
L05009-40 40W 4000lm
D800xW16xH60mm
mm
1000mA

FEATURES

Lake Lucerne Extremly Narrow The beauty of lighting fixtures is the consequence of an honest, crystal and precise way of thinking. They are beautiful and pure, just like the technology which is inside them. The quality of the mechanical workings can be recognised even by touching them. L05009 is a single accent lighting solution, One-piece circular shape. Aluminium curved profile and powder coating. The basic model comes in black RAL9005 or RAL9016 white and Bronze colors. While customized colors and adjustable power are supported based on customer requirements. Up to 3 different diameter 400mm / 600mm / 800mm, Lake Lucerne Extremly Narrow lenses, Up to two beam angles: 24° 36° , delivering highly uniform light distribution.  UGR<16. Achieved a real high level of visual comfort. CRI90+, High consistency 2SDCMs to ensure color temperature consistency for the quality lighting. Suspended installation, snap-in design enables you to easily install the ceiling rose, extremely fast installation, saving you valuable time and effort. Stepless pendant height adjustment, the lamp height can be freely adjusted (cable length: 1700mm) to accommodate flexible lighting needs. simply pull down to lower, push up to raise, and it locks automatically when released. It features an integrated design that combines load-bearing steel wire rope and power cable. With purely manual operation, it is safe and convenient to use. Smart lighting, achieved CASAMBI I Dali I DMX dimm.

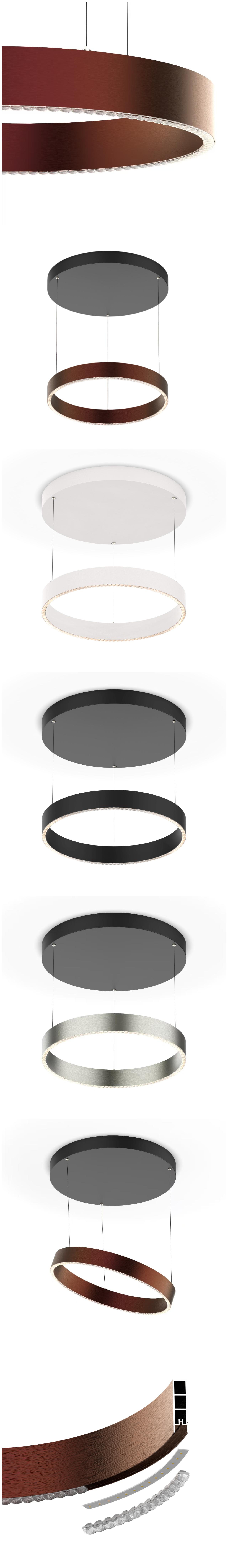

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
20W   500mA
30W   750mA
40W   1000mA
