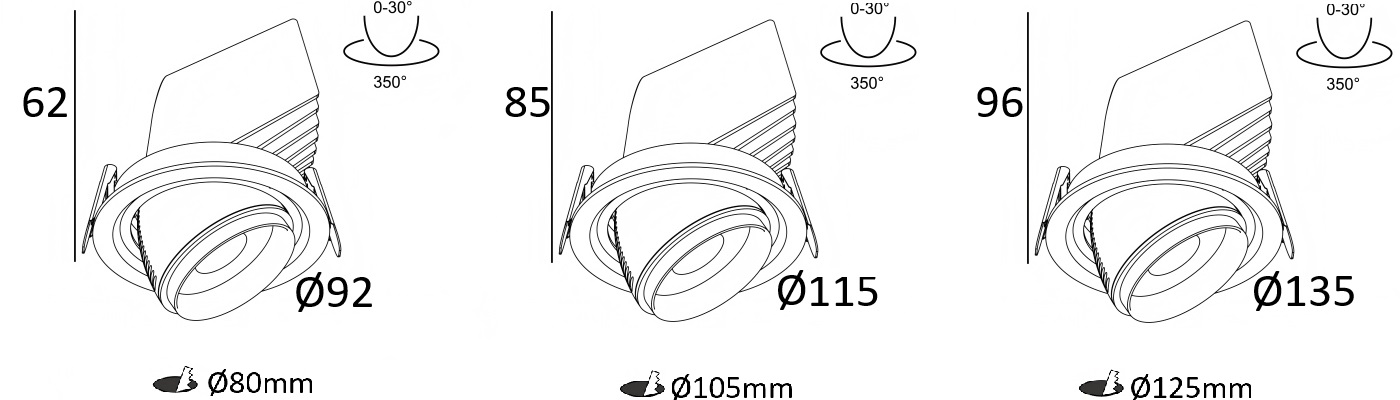

Ø80 I Ø105 I Ø125

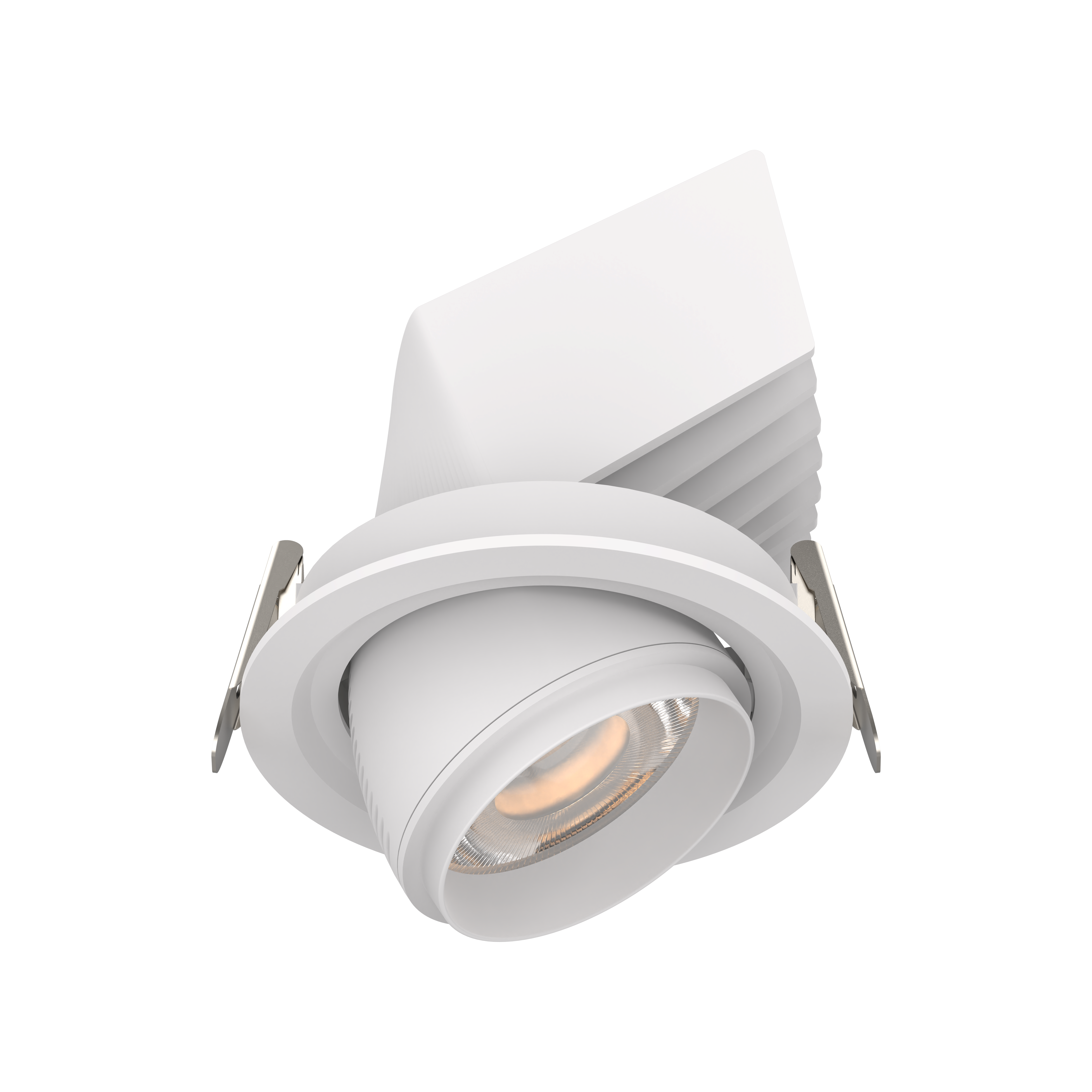

L03693 Spotlight    IP40

Aluminium die casting material and powder coating. Remote LED driver version. High level of visual comfort. 30°adjustable 355°rotation.

High level of visual comfort, deeply recessed light source. Available for four different output beams 15/24/36/60°. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation ceiling recessed with spring, A small downlight characterized by innovative and surprising solutions. The rotation and the right angled inclination make this product to be flexible and easy to handle. It is ideal for lighting architectural and artistic details up. High Definition optical lenses in thermoplastic material， uniform distribution. Famous brand LED chips CRI90+ 3steps. Smart lighting, achieved CASAMBI I DALI DT8 dimmable. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

TECHICAL DATA

  • 1500-2500lm
  • Remote LED Driver
  • Aluminium die-casting lighting fixture, powder coated.
  • Ceiling Recessed.
  • DALI I Triac I 0/1-10V I CASAMBI I DT8
  • 300-400mm cable with quick connector.
  • CREE branded COB LED CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03693

IP40

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

30° vertical tilting, 355° horizontal rotation

Ceiling Recessed.

Aluminium die-casting lighting fixture, powder coated.

CREE branded COB LED CRI90+ 3SDCM

Flicker Free I Deeply recessed light source.

Remote LED Driver

DALI I Triac I 0/1-10V I CASAMBI I DT8

HIGHLY FLEXIBLE AND UNIFORM DISTRIBUTION

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L03693-15 15W 1500lm
92xH62mm
75mm
 350mA
L03693-30 30W 3000lm
115xH85mm
95mm
 750mA
L03693-35 35W 3300lm
135xH95mm
110mm
 800mA
L03693-25 25W 2500lm
115xH85mm
95mm
 550mA

FEATURES

Aluminium die casting material and powder coating. Remote LED driver version. 30°adjustable 355°rotation. High level of visual comfort, deeply recessed light source. Available for four different output beams 15/24/36/60°. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation ceiling recessed with spring, A small downlight characterized by innovative and surprising solutions. The rotation and the right angled inclination make this product to be flexible and easy to handle. It is ideal for lighting architectural and artistic details up. High Definition optical lenses in thermoplastic material， uniform distribution. Famous brand LED chips CRI90+ 3steps. Smart lighting, achieved CASAMBI I DALI DT8 dimmable. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
15W   350mA
30W   750mA
35W   800mA
25W   550mA
