口60 I 口80 I 口100

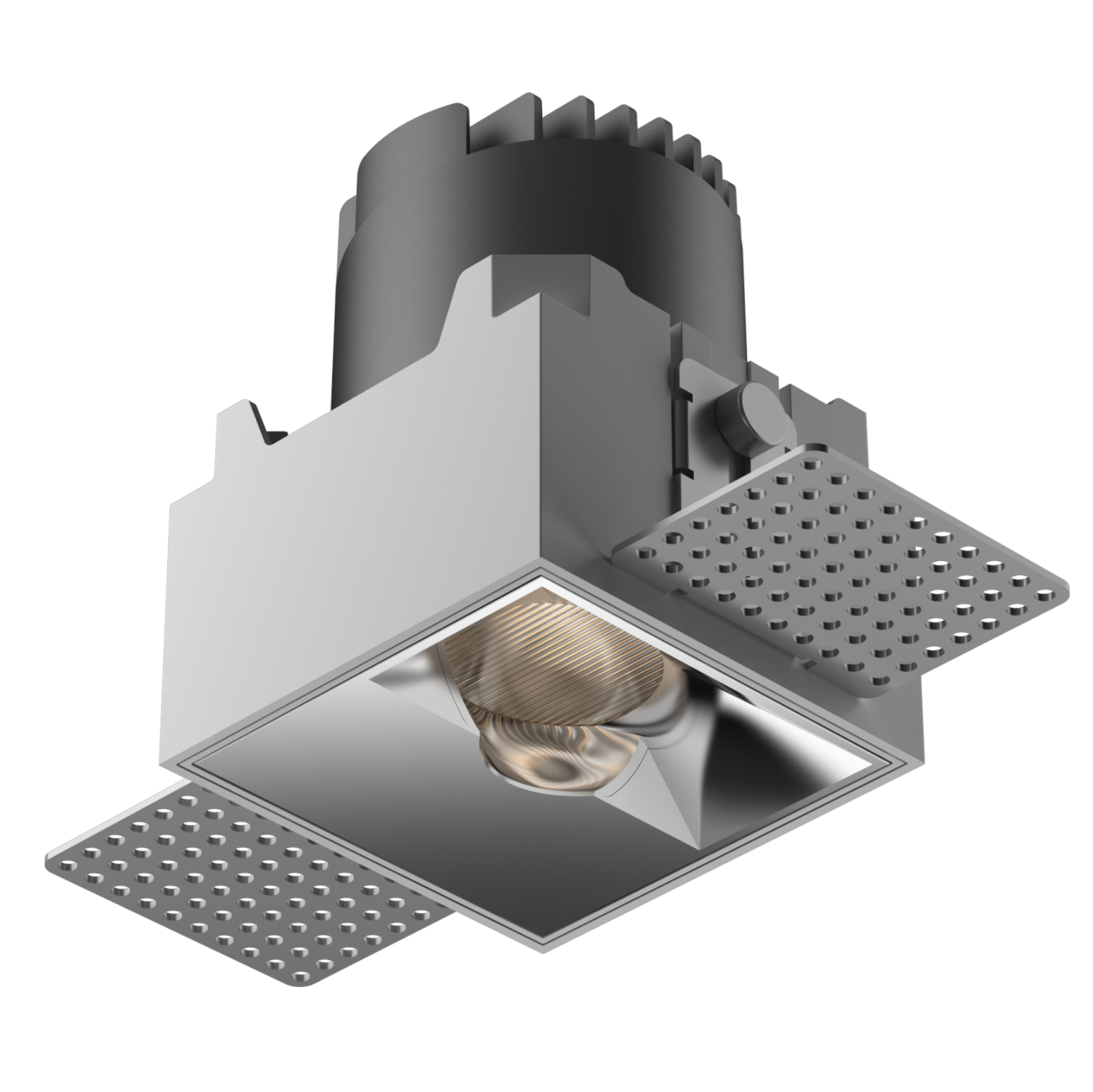

L02080 Wall washer    IP20

Aluminum die casting material and powder coating. Remote LED driver version. Polarized light distribution.

A complete range of recessed LED down lights whose compact conical design delivers excellent visual comfort, energy efficiency, easy installation and good architectural integration. They comprise a LED light module,and a metal mounting frame. It facilitates the installation by giving the opportunity to the installer to place the mounting frame in advance. No need to worry for the lighting modules in further finishing of the room, as the spotlight modules can be pushed into the frame afterwards, and take it off the mounting frame by pushing again. Combines the latest LED technology and a very efficient conical system designed to combine high performance with excellent glare protection. Available for Trim and No Trim installations and fixed, adjustable and Wall-Washer versions. The fixed and adjustable LED versions are available with 5 types of output beam angles. To ensure complete coherency in the same installation, the Wall-Washer version is available with the same LED options as the fixed and adjustable versions. L02080 is fixed wall washer, trimless , aluminum die casting material and powder coating. Remote LED driver version. Light spot uniform transition, no bright and dark stripes wall washer spotlight. The fixed wall washer spotlight Specially designed free-form reflective cup with anti-glare cover, accurate light path,active anti-glare,with higher light efficiency. Wall washing with no dark area. The splicing of multiple lamps has a better wallwashing effect. High temperature resistant material,reflective cup temperature 140℃. ·Multiple forms are available,which perfectly match various application scenarios. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation ceiling recessed. Famous brand LED chips CRI90+ 2steps. Smart lighting, achieved CASAMBI I DALI 2. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

TECHICAL DATA

  • 300-1000lm
  • Remote LED Driver
  • Aluminum die casting lighting fixture and powder coating
  • Flicker Free CRI90+ UGR<19
  • DALI 2 I CASAMBI
  • Ceiling Recessed Trimless
  • CREE branded LED chips

Product is Europe Standard & CE Certificate.

LED DOWN LIGHT WALL WASHING

L02080

IP20

CLASS III

Wall washing Lighting I Trimless

ECO Energy Saving

Flicker Free

Eyes friendly CE certificate RoHS standard

CRI90+ CREE branded COB LED

Europe Standard & CE Certificate.

400-600mm cable with quick connector

DALI 2 I CASAMBI I 0-10V

A single lighting solution with upper wall washer

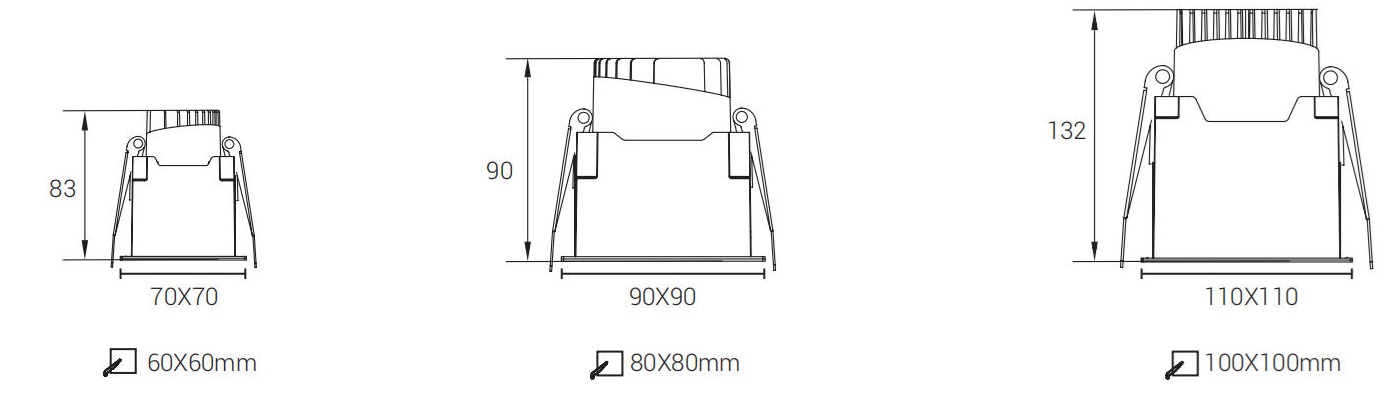

Code System Power
W
Output Lumen
lm
Dimension
mm
Cut Hole
mm
Power Supply
mA
L02080-6 6W 300lm
70x70xH83mm
60x60mm
150mA
L02080-12 12W 600lm
90x90xH90mm
80x80mm
300mA
L02080-20 20W 1000lm
110x110x132mm
100x100mm
500mA

FEATURES

Aluminum die casting material and powder coating. Remote LED driver version. Light spot uniform transition, no bright and dark stripes wall washer spotlight. The fixed wall washer spotlight Specially designed free-form reflective cup with anti-glare cover, accurate light path,active anti-glare,with higher light efficiency. Wall washing with no dark area. The splicing of multiple lamps has a better wallwashing effect. High temperature resistant material,reflective cup temperature 140℃. ·Multiple forms are available,which perfectly match various application scenarios. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation ceiling recessed. Famous brand LED chips CRI90+ 2steps. Smart lighting, achieved CASAMBI I DALI 2. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
6W   150mA
12W   300mA
20W   500mA
