Ø52 I Ø75 I Ø91

L08075 Spotlight    IP20

Aluminum extrusion and powder coating I electroplating or paint housing I multiple installations

Pendant luminaire with Ø75 I Ø91mm diameter with an elongated cylindrical housing. Multiple installations. trimless, with a decorative trim and surfaced. Aluminum extrusion and powder coating housing. A lens in used instead of a conventional reflector. It allows to create directional and powerful luminous flux. The suspension system is very aesthetically pleasing, the power come through the suspension strands. Customized size, IP rating, color finishing, control systems and power changes are possible depending on the request and the quantity.

TECHICAL DATA

  • 1400-600lm
  • Built-in LED Driver
  • Ø55 I Ø75 I Ø91mm diameter
  • Flicker Free CRI90+ UGR<19
  • DALI I Casambi
  • Pendant I Multiple installations.
  • Famous brand LED chips, CRI90+ 2steps

Product is Europe Standard & CE Certificate.

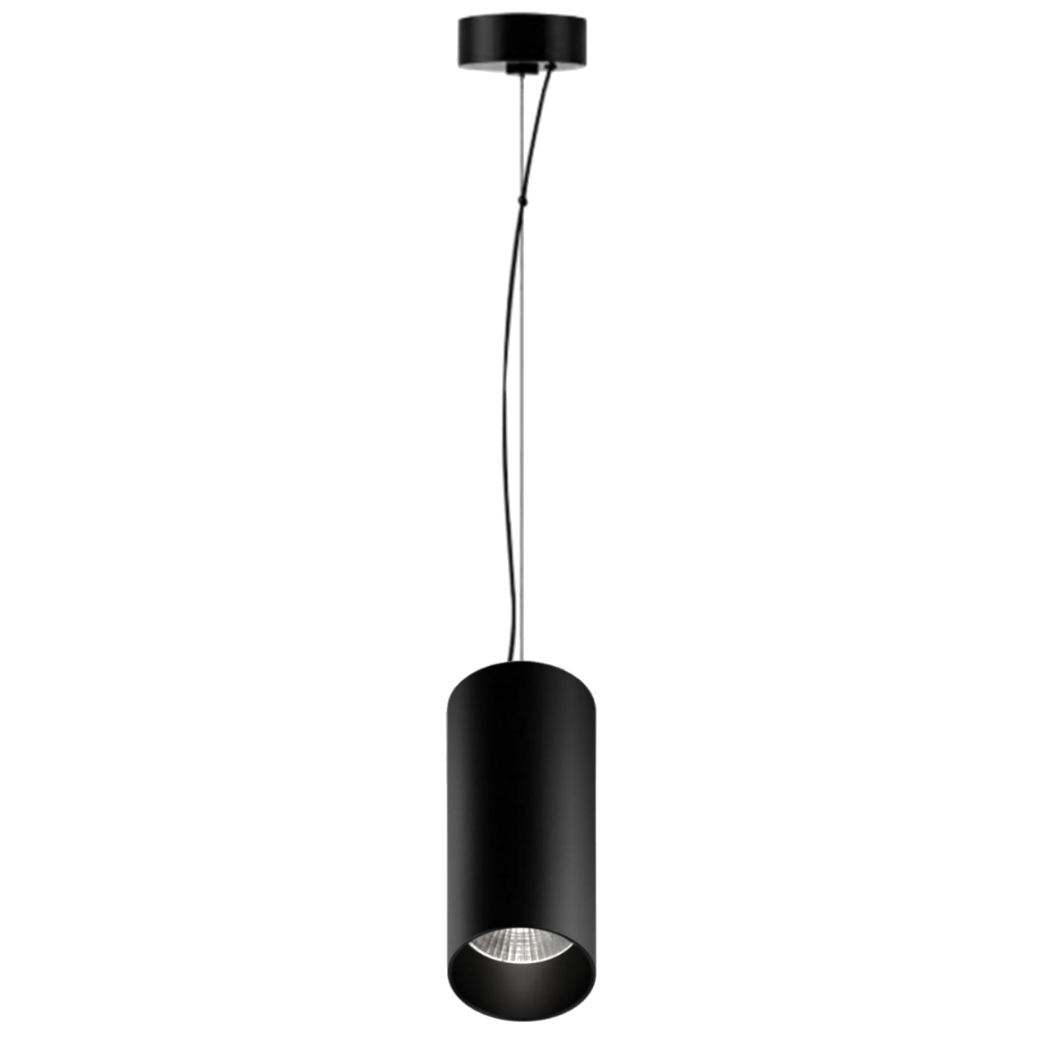

INTERIOR LED PENDANT SPOTLIGHT

L08075

IP20

CLASS III

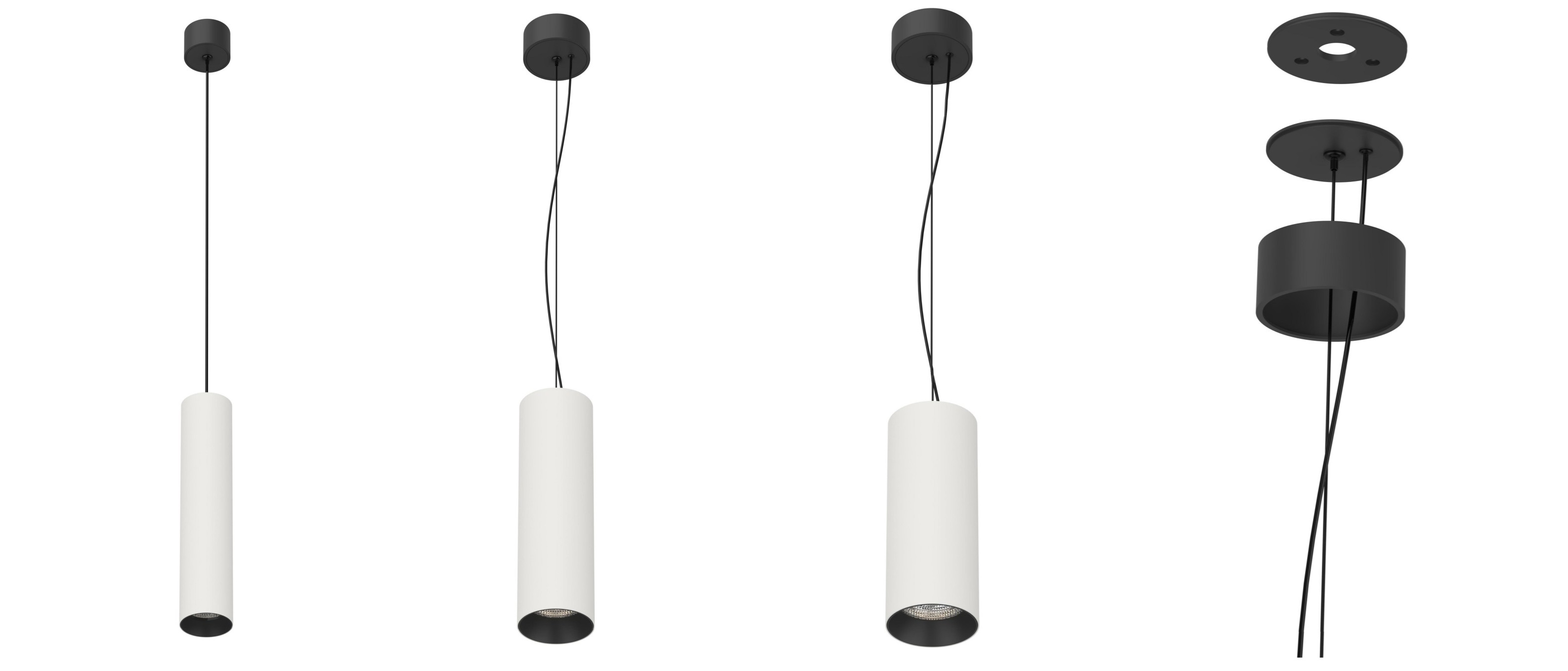

Pendant Installation

Aluminium lighting fixture, powder coated.

Standard length of cable 2000mm with quick connector.

Eyes friendly CE certificate RoHS standard

CRI90 + 2SDCM COB LED

Triac I 0/1-10V I DALI dimmable

Tunable White dimming

Warranty 5 Years

ELONGATED CYLINDRICAL HOUSING AND MULTIPLE INSTALLATIONS

Code System Power
W
Output Lumen
lm
Dimension
mm
Cut Hole
mm
Power Supply
mA
L08075-15 15W 1400lm
75xH150mm
mm
350mA
L08075-25 25W 2300lm
95xH250mm
mm
650mA
L08075-7 7W 600lm
52xH300mm
mm
150mA

FEATURES

Pendant luminaire with Ø55 I Ø75 I Ø91mm diameter with an elongated cylindrical housing. Multiple installations. trimless, with a decorative trim and surfaced. Aluminum extrusion and powder coating housing. A lens in used instead of a conventional reflector. It allows to create directional and powerful luminous flux. The suspension system is very aesthetically pleasing, the power come through the suspension strands. Customized size, IP rating, color finishing, control systems and power changes are possible depending on the request and the quantity.

Built-in LED Driver Accessoires Beam Angle Color Temperature Finishes
15W   350mA
25W   650mA
7W   150mA
