Ø18 flat pinhole

L03826 Spotlight    IP20

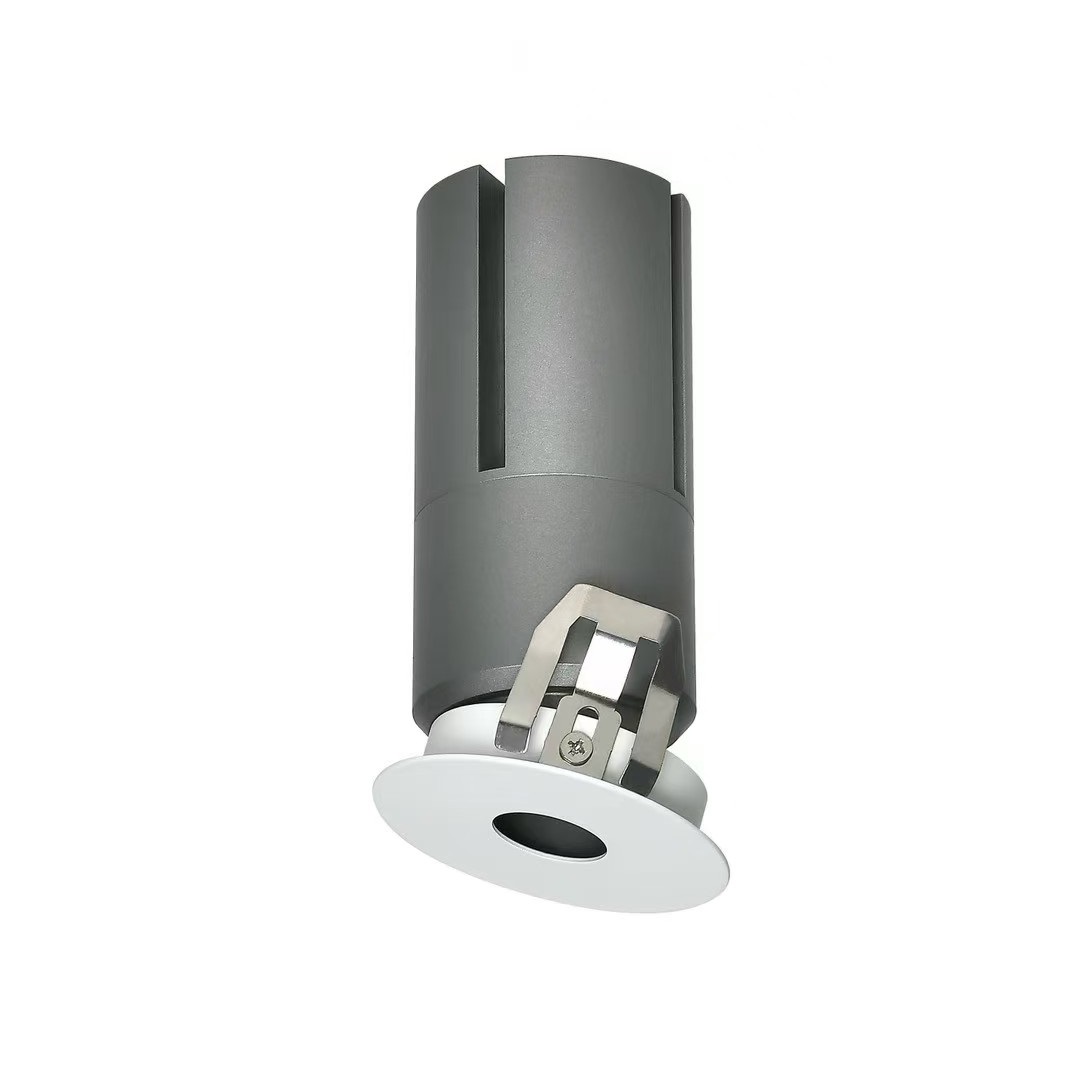

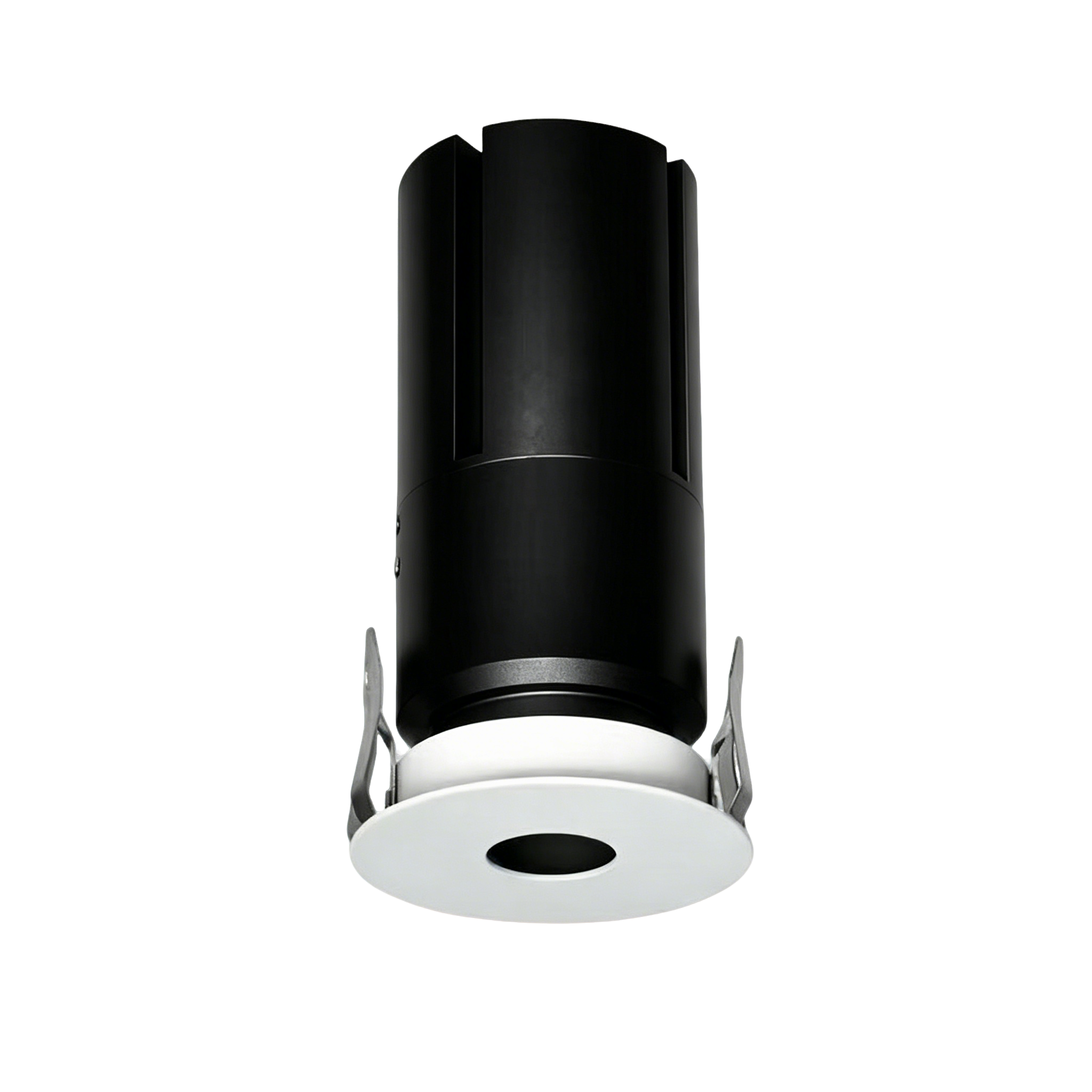

Aluminum lighting fixture with powder coating. Remote LED driver version. Ceiling recessed installation, flat pinhole. the lighting fixture combined fixed and 24° adjustable . ultra-thin metal mounting panel, 0.8mm only

Aluminum lighting fixture with powder coating. Remote LED driver version. Ceiling recessed installation, Ø18 flat pinhole, recessed light source UGR<16. Same appearance both Fixed and 24° adjustable, and consists of an LED light module, a metal flat panel and spring for easy installation. These advantages deliver flexibility and easy operation. Thanks to the ultra-thin metal mounting panel, with a thickness of only 0.8mm. It enables the luminaire to blend almost seamlessly with architectural surfaces. The optical design aligns light beams to intersect at the aperture, creating a crossed beam lighting pattern with minimal loss. The pinhole spotlight delivers a delicate cross-lighting effect, enhancing spatial depth with clean, defined light beams and creates a clean and sophisticated ceiling finish. CRI97, Compatible with wired and wireless dimming systems. IP20. An ideal engineering lighting solution for the mid-to-high-end market. 5-year warranty provided.

TECHICAL DATA

  • 580-780lm
  • Remote LED Driver
  • Aluminum lighting fixture ,powder coating.
  • 300-400mm cable with quick connector.
  • Compatible with wired and wireless dimming systems.
  • Flexible I Cross lighting optical
  • CITIZEN branded LED chips CRI97 2SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03826

IP20

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminum lighting fixture, powder coating.

Ceiling recessed I Flat Pinhole

5years Warranty

CITIZEN branded LED chips CRI97 2SDCM

Flicker Free, Remote LED Driver version.

Recessed light source. Visual comfort.

Compatible with wired and wireless dimming systems.

UNIFORM DISTRIBUTION AND SOFT LIGHT

Code System Power
W
Output Lumen
lm
Dimension
mm
Cut Hole
mm
Power Supply
mA

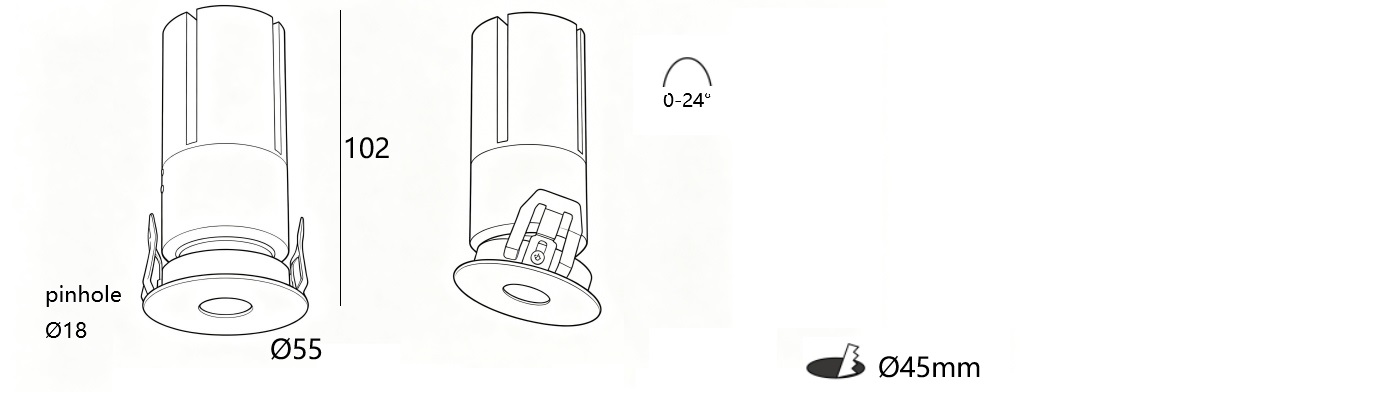

L03826-9 9W 580lm
55xH102mm
45mm
250mA
L03826-12 12W 780lm
55xH120mm
45mm
300mA

FEATURES

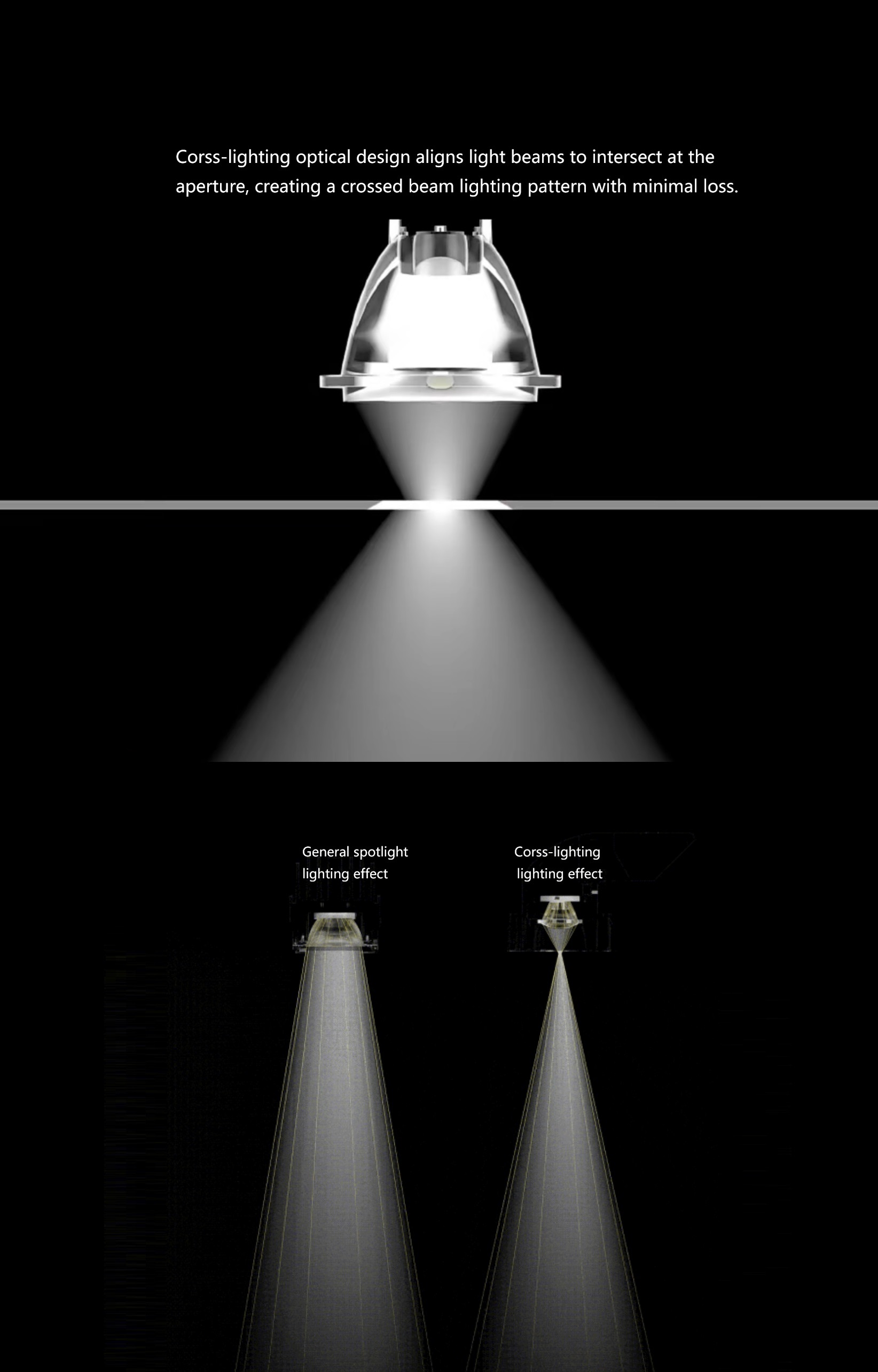

Aluminum lighting fixture with powder coating. Remote LED driver version. Ceiling recessed installation, Ø18 flat pinhole, recessed light source UGR<16. Same appearance both Fixed and 24° adjustable, and consists of an LED light module, a metal flat panel and spring for easy installation. These advantages deliver flexibility and easy operation. Thanks to the ultra-thin metal mounting panel, with a thickness of only 0.8mm. It enables the luminaire to blend almost seamlessly with architectural surfaces. The optical design aligns light beams to intersect at the aperture, creating a crossed beam lighting pattern with minimal loss. The pinhole spotlight delivers a delicate cross-lighting effect, enhancing spatial depth with clean, defined light beams and creates a clean and sophisticated ceiling finish. CRI97, Compatible with wired and wireless dimming systems. IP20. An ideal engineering lighting solution for the mid-to-high-end market. 5-year warranty provided.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
9W   250mA
12W   300mA
