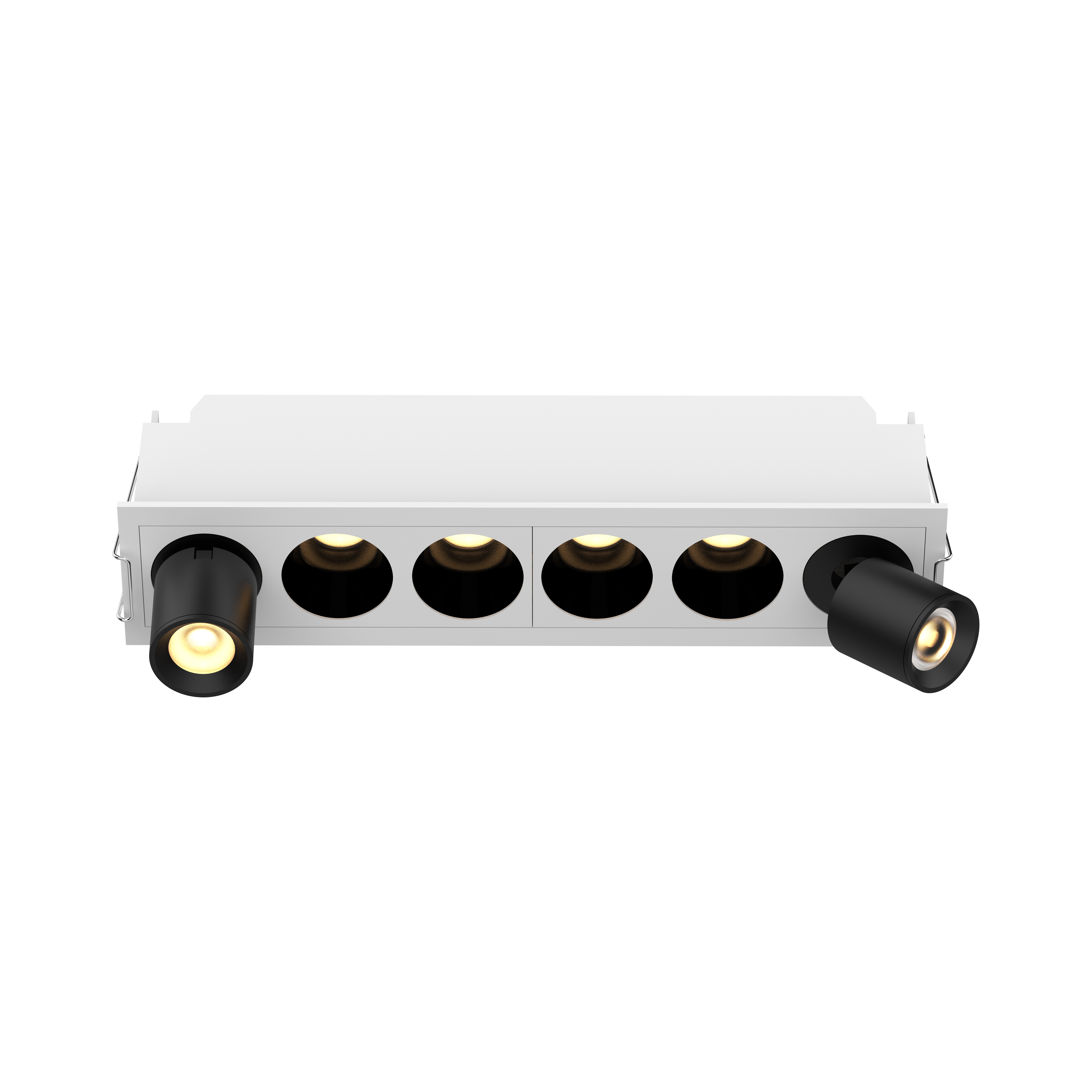

L07066 Spotlight IP20

spotlight, aluminium die-casting material and powder coating. -Romote LED driver version. Flicker-Free

An ideal accent lighting in residential or commercial areas. it comprise a LED spotlight module, a ABS baffle and a metal mounting frame. One housing, multiple options, with different light distributions for a wide varirty of applications. Recessed installations. Visual comfort low glare optic with recessed light source. UGR<19. High Definition optics. -Uniform distribution. 6LEDs, 18V, OSRAM CRI90 2W/LED White I Black color finishing as standard. Customized color finishing, power changes are possible depending on the request and the quantity.

TECHICAL DATA

960lm
Remote LED Driver
Aluminium lighting fixture, powder coated.
Flicker Free CRI90+ UGR<19
DALI I Triac I 0/1-10V dimming
CEILING RECESSED
OSRAM branded LED chips CRI90+ Dimmable

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L07066

IP20

CLASS III

CEILING RECESSED

400-600mm cable with quick connector.

220x40mm

Eyes friendly CE certificate RoHS standard

CRI90+ OSRAM branded SMD

Triac I 0/1-10V I DALI dimmable

Tunable White dimming

Warranty 5 Years

UNIFORM DISTRIBUTION.

Code

System Power
W

Output Lumen
lm

Dimension
mm

Cut Hole
mm

Power Supply
mA

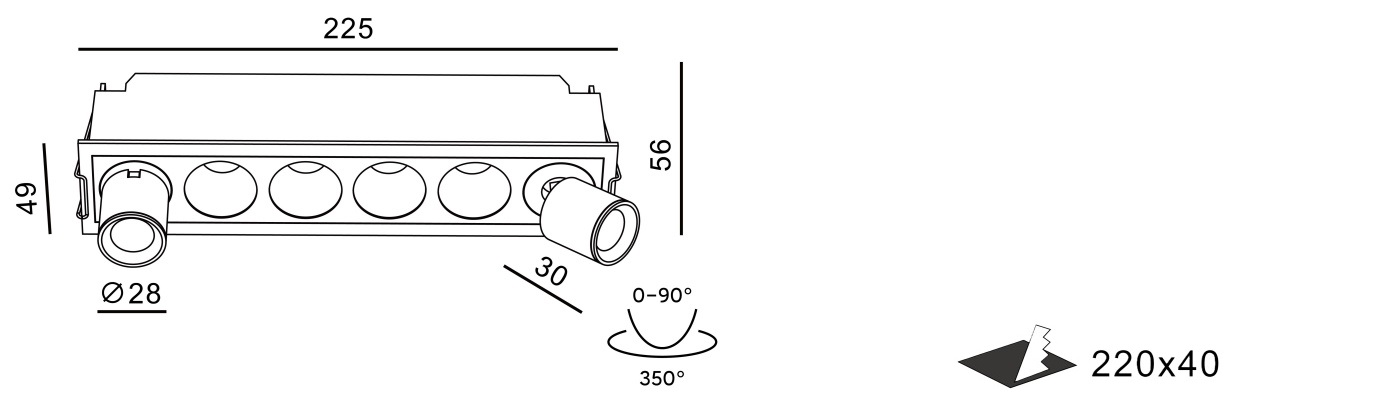

L07066-12	6x2W	960lm	225x49xH56mm	220x40mm	600mA

FEATURES

An ideal accent lighting in residential or commercial areas. it comprise a LED spotlight module, a ABS baffle and a metal mounting frame. One housing, multiple options, with different light distributions for a wide varirty of applications. Recessed installations. Visual comfort low glare optic with recessed light source. UGR<19. High Definition optics. -Uniform distribution. 6LEDs, 18V, OSRAM CRI90 2W/LED White I Black color finishing as standard. Customized color finishing, power changes are possible depending on the request and the quantity.

Remote LED Driver	Accessoires	Beam Angle	Color Temperature	Finishes
2W 600mA

Download

Installation
