148x46 I 10W

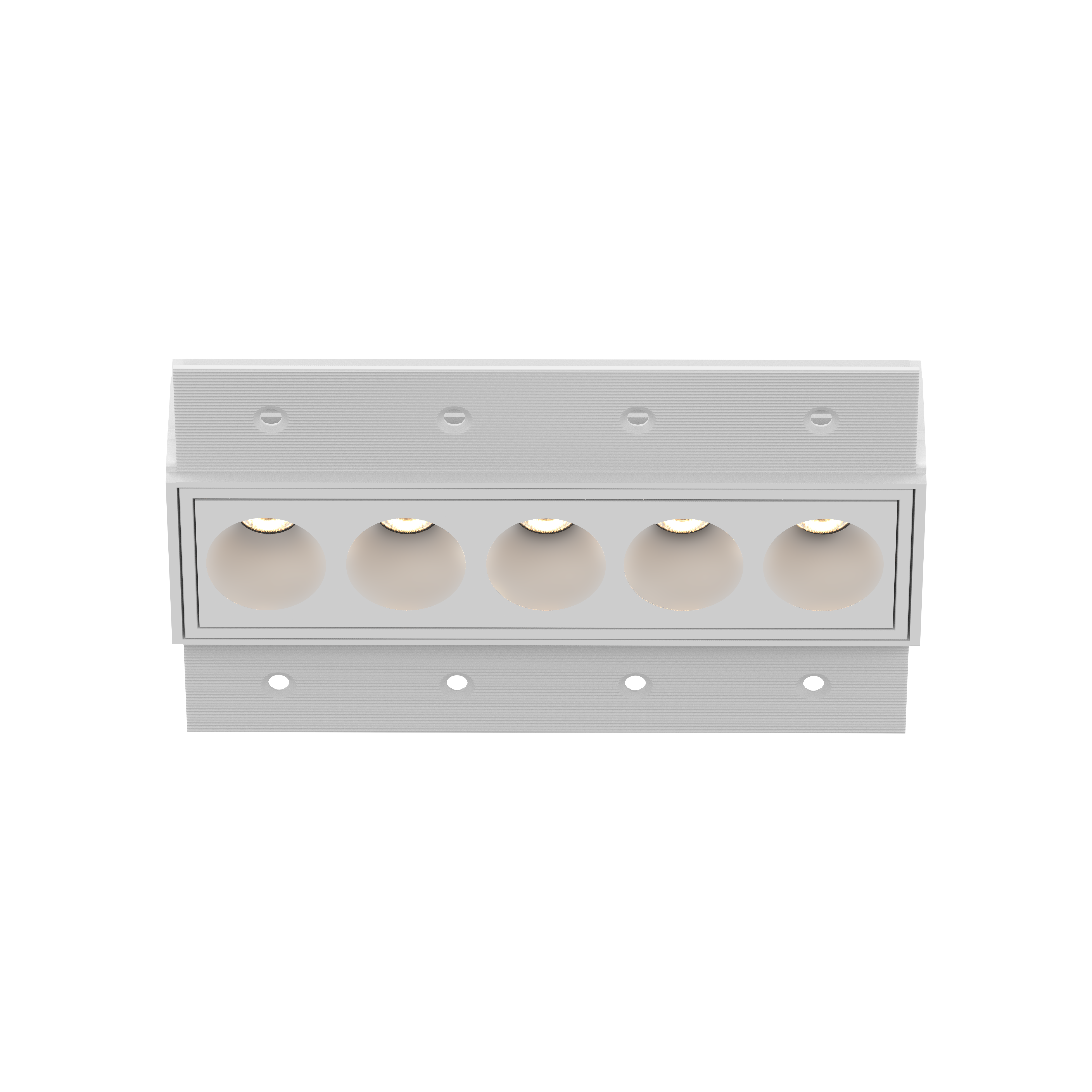

L07167 Spotlight    IP20

Trimless. spotlight, aluminium die-casting material and powder coating. -Romote LED driver version. Flicker-Free

An ideal accent lighting in residential or commercial areas. it comprise a LED spotlight module, a ABS baffle and a metal mounting frame. One housing, multiple options, with different light distributions for a wide varirty of applications. Easy installations. Visual comfort low glare optic with recessed light source. The effect of visible light and invisible fixture is achieved. UGR<19. High Definition optics. -Uniform distribution. Easy to take spot out from its frame. 5LEDs, 15V, OSRAM CRI90 2W/LED White I Black color finishing as standard. Customized color finishing, power changes are possible depending on the request and the quantity.

TECHICAL DATA

  • 800lm
  • Remote LED Driver
  • Aluminium lighting fixture, powder coated.
  • Flicker Free CRI90+ UGR<19
  • DALI I Triac I 0/1-10V dimming
  • CEILING RECESSED
  • OSRAM branded LED chips CRI90+ Dimmable

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L07167

IP20

CLASS III

CEILING RECESSED

400-600mm cable with quick connector.

142x45 mm

Eyes friendly CE certificate RoHS standard

CRI90+ OSRAM branded SMD

Triac I 0/1-10V I DALI dimmable

Tunable White dimming

Warranty 5 Years

UNIFORM DISTRIBUTION.

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L07167-10 5x2W 800lm

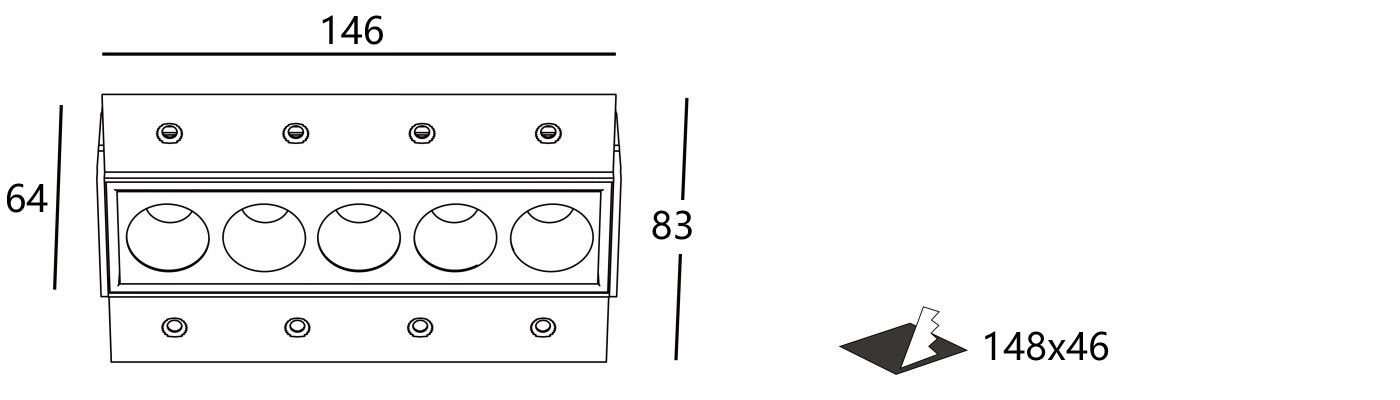

146x83xH64mm
148x46mm		 600mA

FEATURES

An ideal accent lighting in residential or commercial areas. it comprise a LED spotlight module, a ABS baffle and a metal mounting frame. One housing, multiple options, with different light distributions for a wide varirty of applications. Easy installations. Visual comfort low glare optic with recessed light source. The effect of visible light and invisible fixture is achieved. UGR<19. High Definition optics. -Uniform distribution. Easy to take spot out from its frame. 5LEDs, 15V, OSRAM CRI90 2W/LED White I Black color finishing as standard. Customized color finishing, power changes are possible depending on the request and the quantity.

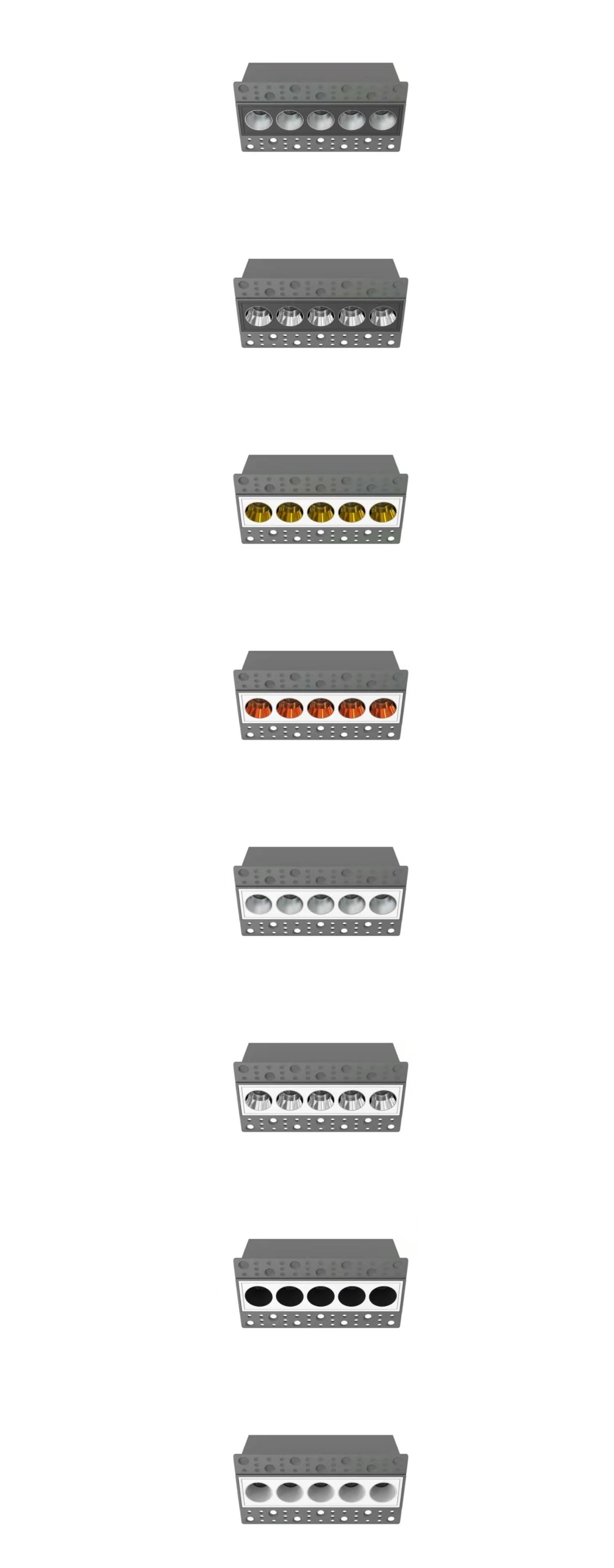

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
2W   600mA
