IP54 I Modular Design

L06744 Spotlight    IP54

Aluminium material and powder coating. Remote LED driver version. High level of visual comfort. Fixed down spotlight. IP54

Aluminium material and powder coating. Remote LED driver version. IP54. Dark light technology,High level of visual comfort. They comprise a LED light module, a plastic material secondary reflector and a metal mounting frame. the reflector is available in multiple color finishing. The lighting fixture is fixed, Easy installations. it facilitates the installation by giving the opportunity to the installer to place the mounting frame in advance. No need to worry for the lighting modules in further finishing of the room, as the spotlight modules can be clicked into the mounting frame afterwards, and easy to take it off the mounting frame. easy to handle. The spotlight offer homogeneous and uniform light distribution, available for four different output beams 15/24/36/50°. Specialized optics and optical filters can be ordered. Dimmable. 5years warranty. Customized color finishing, power changes are possible depending on the request and the quantity. The new creating that meets the needs of your residential and commercial projects.

TECHICAL DATA

  • 840lm
  • Remote LED Driver
  • Aluminium die-casting lighting fixture, powder coated.
  • Ceiling Recessed.
  • DALI I Triac I 0/1-10V I CASAMBI I DT8
  • 300-400mm cable with quick connector.
  • SMD LED CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.

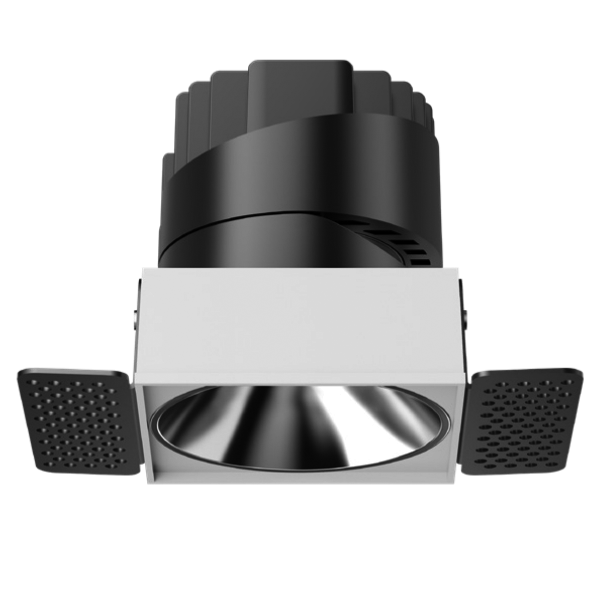

INTERIOR LED RECESSED DOWN SPOTLIGHT

L06744

IP54

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Fixed down spotlight

Ceiling Recessed.

Aluminium die-casting lighting fixture, powder coated.

SMD LED CRI90+ 3SDCM

Flicker Free I Deeply recessed light source.

Remote LED Driver

DALI I Triac I 0/1-10V I CASAMBI I DT8

UNIFORM DISTRIBUTION

Code System Power
W
Output Lumen
lm
Dimension
mm
Cut Hole
mm
Power Supply
mA
L06744-12 12W 840lm

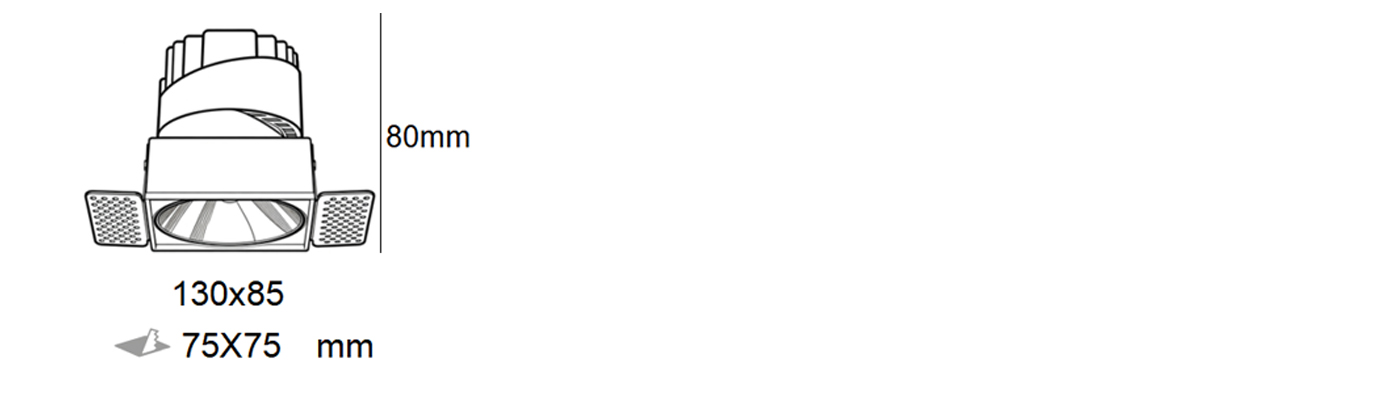

130x85xH80mm
75X75mm
300mA

FEATURES

Aluminium material and powder coating. Remote LED driver version. IP54. Dark light technology,High level of visual comfort. They comprise a LED light module, a plastic material secondary reflector and a metal mounting frame. the reflector is available in multiple color finishing. The lighting fixture is fixed, Easy installations. it facilitates the installation by giving the opportunity to the installer to place the mounting frame in advance. No need to worry for the lighting modules in further finishing of the room, as the spotlight modules can be clicked into the mounting frame afterwards, and easy to take it off the mounting frame. easy to handle. The spotlight offer homogeneous and uniform light distribution, available for four different output beams 15/24/36/50°. Specialized optics and optical filters can be ordered. Dimmable. 5years warranty. Customized color finishing, power changes are possible depending on the request and the quantity. The new creating that meets the needs of your residential and commercial projects.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
12W   300mA
