L03386 Spotlight    IP44

Aluminium cold forging material and powder coating. - Excellent cooling system. Built-in ON/OFF Driver

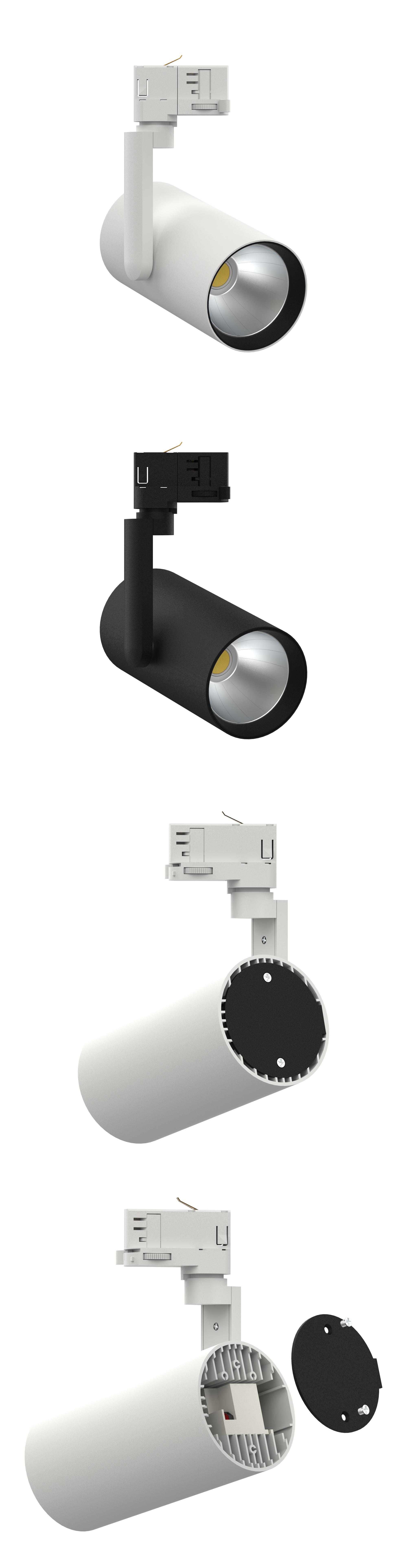

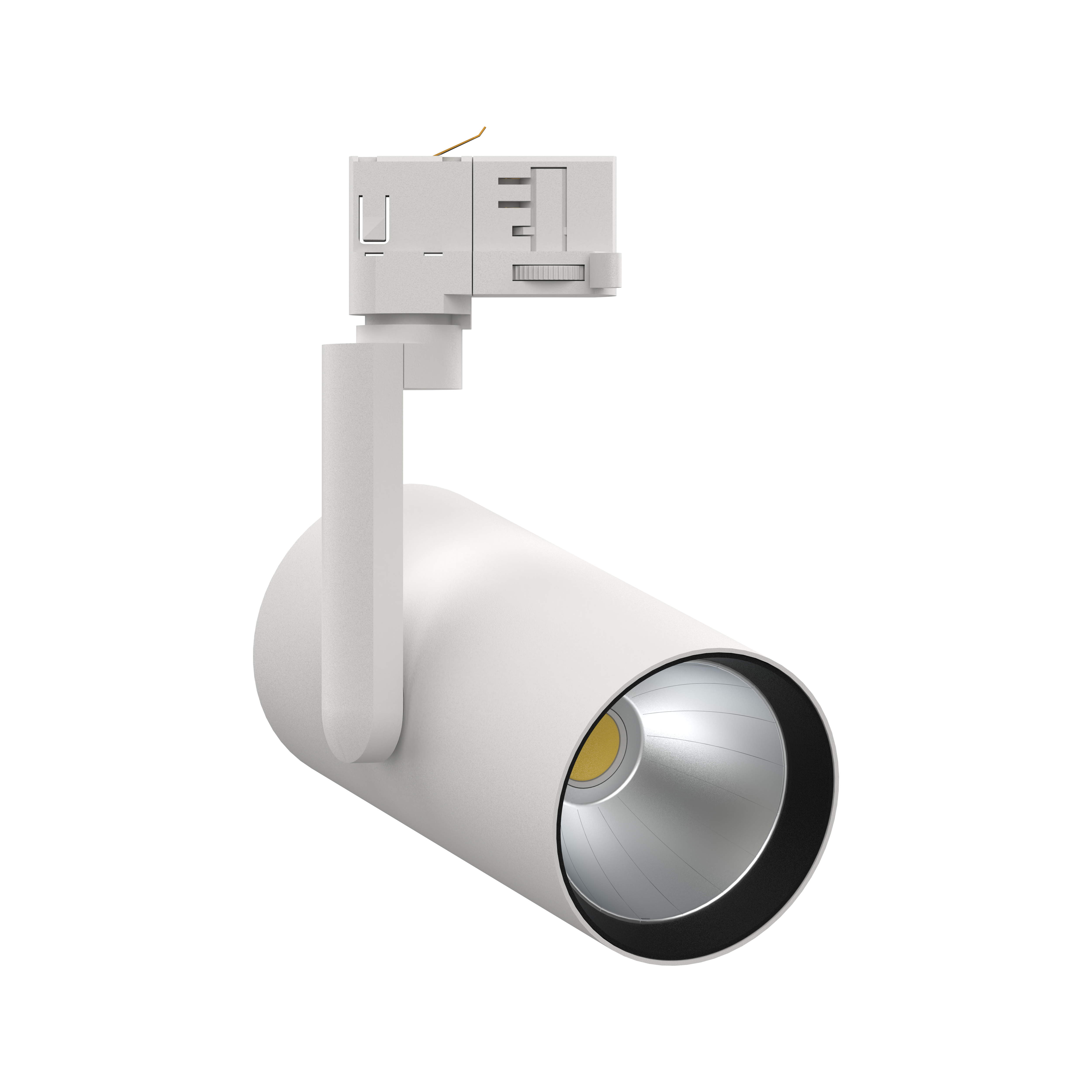

European standard 3-phase trackspotlight, Aluminium cold forging material and powder coating. Integrated cooling system to ensure the spotlight long lifetime. Luminaires are powered by a built-in version Philips branded on/off Driver and 3-phase adaptor . An ideal solution for accent lighting. the high performances and flexibility for every project. High Definition optical lenses. -Uniform distribution. It allows 350°rotation about the vertical axis and 180° tilting relative to the horizontal plane make the spotlight highly flexible and easy to handle, the light is emitted exactly where you want it. Specialized optical filters can be ordered. The light spots were natural transition, clear and soft. Philips COB LED 3SDCM to ensure color temperature consistency for the quality lighting. Excellent colour rendering with CRI90+, it's perfect for a wide range of food, flowers, clothes, and in general for other display lighting applications. The standard product comes in matt Black color finishing or matt White color finishing. On the request it can be offered in any RAL colour, matching the specific look and feel of your design. Compatible with GLOBAL / POWERGEAR 3-phase track system.

TECHICAL DATA

  • 2600-3200lm
  • LED TRACKSPOTLIGHT
  • Aluminium cold forging material and powder coating.
  • Integrated cooling system to ensure the spotlight long lifetime.
  • Double adjustability 180°adjustable 350°rotation,
  • European standard 3-phase 4 wires track rails
  • CREE branded COB LED Chips I CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.

LED TRACKSPOTLIGHT

L03386

IP44

CLASS III

Compatible with GLOBAL / POWERGEAR 3-phase track system.

ECO Energy Saving. I CE certificate I RoHS standard

Aluminium lighting fixture and powder coating housing.

An ideal solution for accent lighting

Philips branded COB LED Chips CRI90+ 3SDCM

Built-in Philips ON/OFF LED Driver

Double adjustability 180°adjustable 350°rotation

Warranty 5Years

EXCELLENT COOLING SYSTEM AND UNIFORM DISTRIBUTION

Code System Power
W
Output Lumen
lm

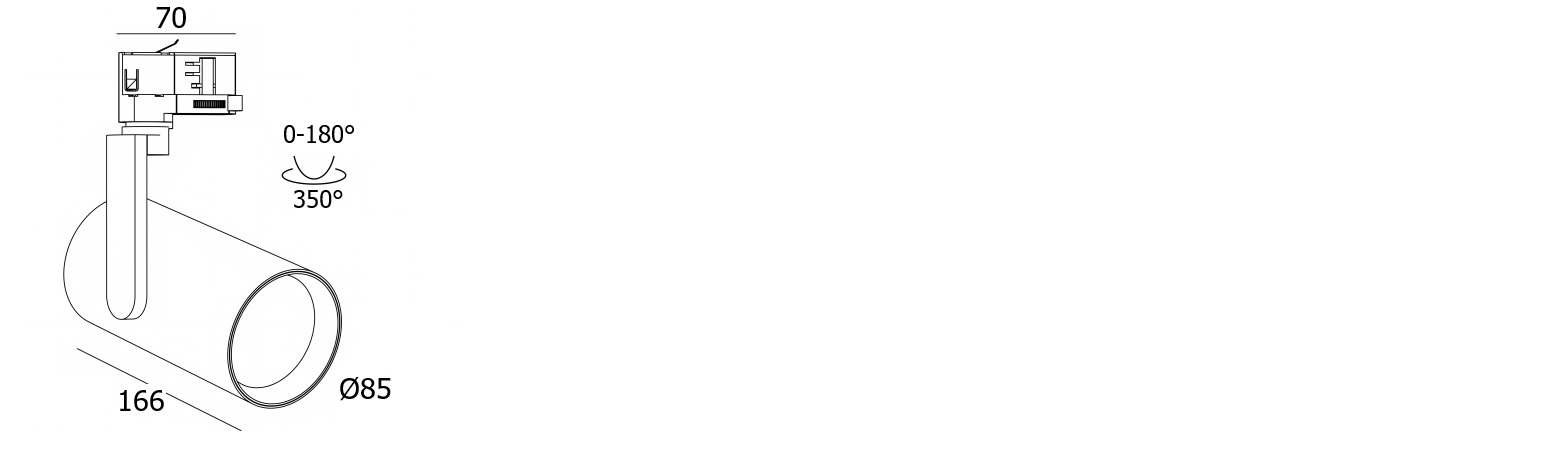

Dimension
mm
Cut Hole
mm
Power Supply
mA
L03386-20 20W 2600lm
85x166mm
mm
500mA
L03386-25 25W 3200lm
85x166mm
mm
600mA

FEATURES

European standard 3-phase trackspotlight, Aluminium cold forging material and powder coating. Integrated cooling system to ensure the spotlight long lifetime. Luminaires are powered by a built-in version Philips branded on/off Driver and 3-phase adaptor . An ideal solution for accent lighting. the high performances and flexibility for every project. High Definition optical lenses. -Uniform distribution. It allows 350°rotation about the vertical axis and 180° tilting relative to the horizontal plane make the spotlight highly flexible and easy to handle, the light is emitted exactly where you want it. Specialized optical filters can be ordered. The light spots were natural transition, clear and soft. Philips COB LED 3SDCM to ensure color temperature consistency for the quality lighting. Excellent colour rendering with CRI90+, it's perfect for a wide range of food, flowers, clothes, and in general for other display lighting applications. The standard product comes in matt Black color finishing or matt White color finishing. On the request it can be offered in any RAL colour, matching the specific look and feel of your design. Compatible with GLOBAL / POWERGEAR 3-phase track system.

LED TRACKSPOTLIGHT Accessoires Beam Angle Color Temperature Finishes
20W   500mA
25W   600mA
