160lm/W I Ø95 I Ø115

L02098 Spotlight    IP40

Aluminum die-casting material and powder coating. Remote LED driver version. High level of visual comfort. Dimmable.

High Definition optical reflector, real High Efficiency Spotlight, uniform distribution. double adjustability,35° vertical tilting and 355° . available for two different output beams 24/36°. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation ceiling recessed with spring, A small downlight characterized by innovative and surprising solutions.The rotation and the right angled inclination make this product to be flexible and easy to handle. It is ideal for lighting architectural and artistic details up. Famous brand LED chips BRIDGELUX CRI90+ 3steps. Powerful REMOTE LED Driver, Smart lighting, achieved CASAMBI I DALI dimmable. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

TECHICAL DATA

  • 6000-5000lm
  • Remote LED Driver
  • Aluminum die-casting lighting fixture, powder coated.
  • 300-400mm cable with quick connector.
  • DALI I Triac I 0/1-10V
  • Ceiling, wall recessed.
  • Famous brand COB LED CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.

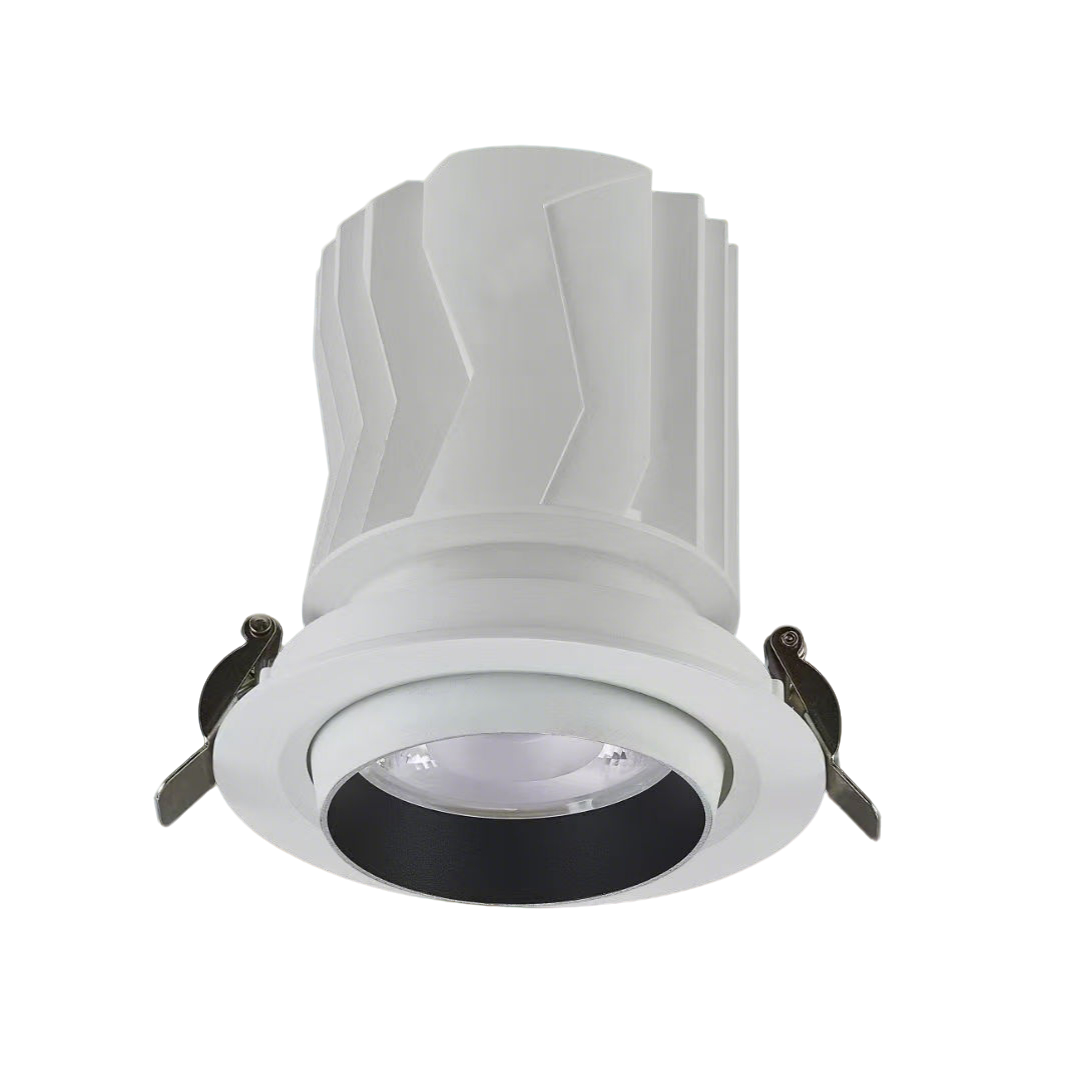

INTERIOR LED RECESSED DOWN SPOTLIGHT

L02098

IP40

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminum die casting material and powder coating

Ceiling recessed, Ceiling thickness 3-25mm

400-600mm cable with quick connector

BRIDGELUX branded COB LED 3SDCM

Flicker Free, Remote LED Driver version.

Flicker Free I High Efficiency Spotlight

0/1-10V I Triac I DALI I CASAMBI

HIGHLY FLEXIBLE AND UNIFORM DISTRIBUTION

Code System Power
W
Output Lumen
lm

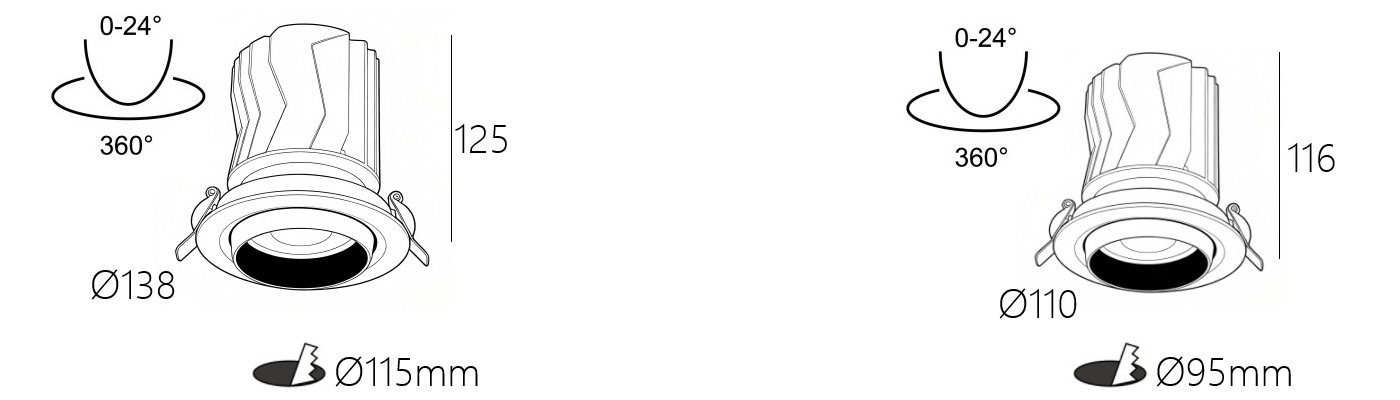

Dimension
mm
Cut Hole
mm
Power Supply
mA
L02098-40 40W 6000lm
138xH125mm
115mm
1000mA
L02098-35 35W 5000lm
110xH116mm
95mm
850mA

FEATURES

High Definition optical reflector, real High Efficiency Spotlight, uniform distribution. double adjustability,35° vertical tilting and 355° . available for two different output beams 24/36°. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation ceiling recessed with spring, A small downlight characterized by innovative and surprising solutions.The rotation and the right angled inclination make this product to be flexible and easy to handle. It is ideal for lighting architectural and artistic details up. Famous brand LED chips BRIDGELUX CRI90+ 3steps. Powerful REMOTE LED Driver, Smart lighting, achieved CASAMBI I DALI dimmable. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
40W   1000mA
35W   850mA
