L05089 Office Lighting    IP40

Excellent cooling system. Aluminium extrusion material and powder coating. Die-cast aluminium sealing caps. with no visible screw design. Remote LED Driver version.

Uniformity and contrast are key aspects of the office lighting to ensure safe environment. The correct lighting creates an atmosphere that provides employee with positive work environment and increase employee satisfaction and productivity. Downlight I UGR<19 I CRI90 I 120lm/W L05089 is a single lighting solution with linear down option. Design the essential, linear form combines with an impressive aesthetic finish where light creates a magical play of reflections. Strict glare control UGR<19, Antiglare lens, made by contrasted materials. Come together in a single miniaturized transparent component. High efficiency Up to 91%, High efficacy Up to 120lm/W, CRI90. Excellent cooling system. Aluminium extrusion material and powder coating. Die-cast aluminium sealing caps. with no visible screw design. Remote LED Driver version. Reduced materials diversity Reduced dimensions and reduced weight. The standard length of lighting fixture is L1170mm. W35xH28mm. The basic model comes in matt white or matt black color finishing. Customized color finishing I power I length of lighting fixture are possible depending on the request and the quantity to match the specific look and feel of your design. Light management via wireless systems allows technology to be integrated easily and flexibly, without the constraints of wiring. Thanks to the user-friendly, optionally available control systems, CASAMBI which can be switch on and off using dimming panel or Casambi APP. Ceiling Suspended I Ceiling Mounted installation. Standard length of cable L1200mm for ceiling suspended installation. Warranty 5years I Leadtimes 7-10 business days.

TECHICAL DATA

  • 3960-3360lm
  • Remote LED Driver
  • Aluminium extrusion material and powder coating.
  • Famous brand LED Chips CRI90+
  • Ceiling Suspended I Surface Mounted
  • 120lm/W
  • CASAMBI DALI

Product is Europe Standard & CE Certificate.

INTERIOR LED OFFICE LIGHTING

L05089

IP40

CLASS III

Surface Mounted I Ceiling Suspended (cable L1500mm)

220-240V 50/60Hz 20V-54V DC

Aluminium extrusion material and powder coating

Eyes friendly CE certificate RoHS standard

Famous brand LED CRI90+

Triac I 0/1-10V I DALI I CASAMBI

Customized color finishing and power are acceptable

Warranty 5 Years

HIGH EFFICIENCY I UNIFORM DISTRIBUTION I LOW GLARE

Code System Power
W
Output Lumen
lm
Dimension
mm
Cut Hole
mm
Power Supply
mA
L05089-33 33W 3960lm

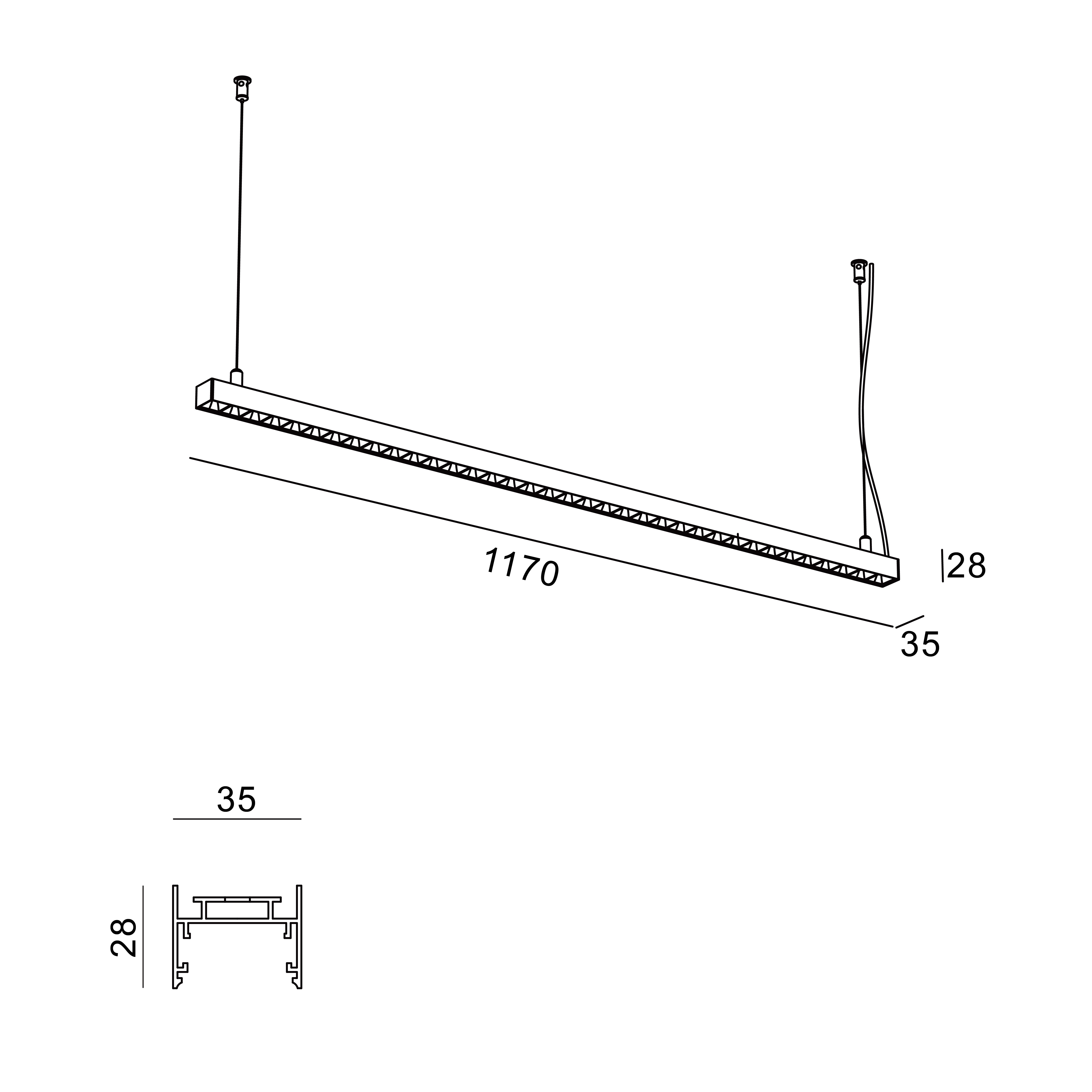

W35xH28xL1170mm
mm
850mA
L05089-28 28W 3360lm
W35xH28xL1170mm
mm
750mA

FEATURES

Uniformity and contrast are key aspects of the office lighting to ensure safe environment. The correct lighting creates an atmosphere that provides employee with positive work environment and increase employee satisfaction and productivity. Downlight I UGR<19 I CRI90 I 120lm/W L05089 is a single lighting solution with linear down option. Design the essential, linear form combines with an impressive aesthetic finish where light creates a magical play of reflections. Strict glare control UGR<19, Antiglare lens, made by contrasted materials. Come together in a single miniaturized transparent component. High efficiency Up to 91%, High efficacy Up to 120lm/W, CRI90. Excellent cooling system. Aluminium extrusion material and powder coating. Die-cast aluminium sealing caps. with no visible screw design. Remote LED Driver version. Reduced materials diversity Reduced dimensions and reduced weight. The standard length of lighting fixture is L1170mm. W35xH28mm. The basic model comes in matt white or matt black color finishing. Customized color finishing I power I length of lighting fixture are possible depending on the request and the quantity to match the specific look and feel of your design. Light management via wireless systems allows technology to be integrated easily and flexibly, without the constraints of wiring. Thanks to the user-friendly, optionally available control systems, CASAMBI which can be switch on and off using dimming panel or Casambi APP. Ceiling Suspended I Ceiling Mounted installation. Standard length of cable L1200mm for ceiling suspended installation. Warranty 5years I Leadtimes 7-10 business days.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
33W   850mA
28W   750mA
