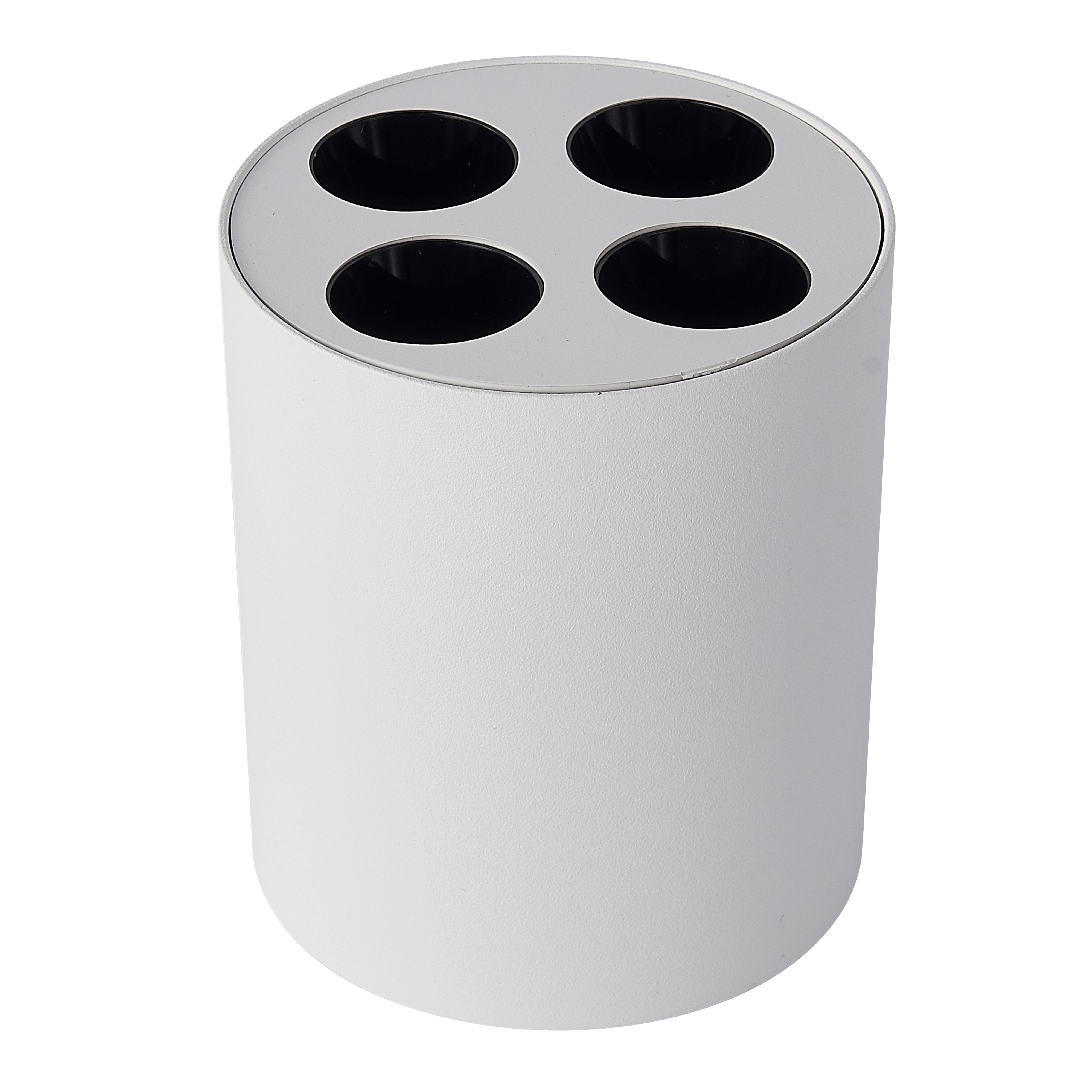

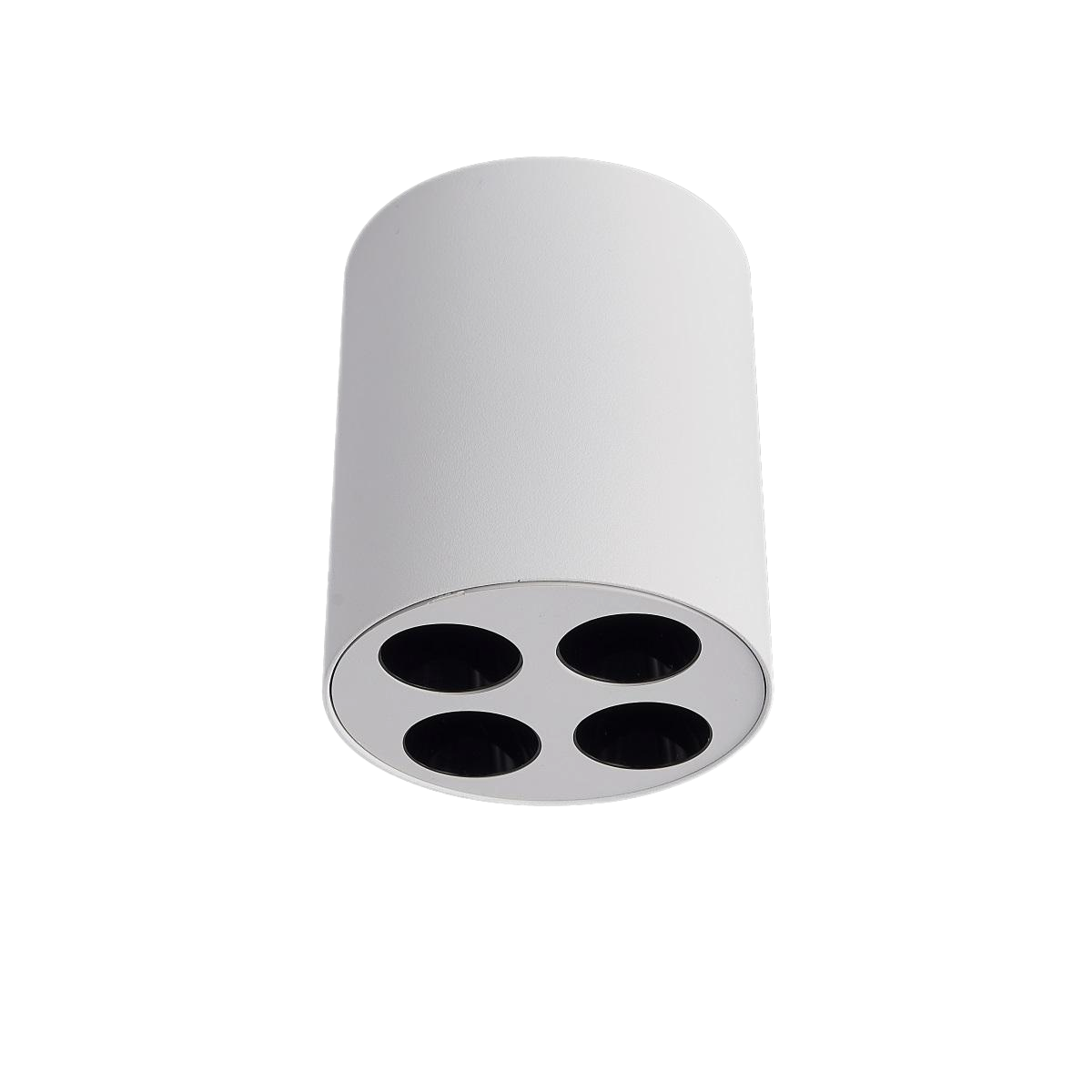

L07141 Spotlight IP20

Surface mounted spotlight, aluminium die-casting material and powder coating. -Built-in LED driver version. Flicker-Free

Fixed spot, an ideal accent lighting in residential or commercial. it provides a high level of visual comfort, ABS baffle. One housing, multiple options, with different light distributions for a wide varirty of applications. Easy installations. Visual comfort low glare optic with recessed light source. UGR<19. High Definition optics. -Uniform distribution. 4LEDs, OSRAM CRI90 2W/LED RAL9016 White I RAL9005 Black color finishing as standard. Customized color finishing, power changes are possible depending on the request and the quantity. It is presented to its customers as a clean and non-dazzling product.

TECHICAL DATA

600lm
Built-in Driver
Aluminium lighting fixture, powder coated.
Flicker Free CRI90+ UGR<16
DALI I Triac I 0/1-10V I Tunable white dimming
Surface Mounted
OSRAM branded LED chips,- CRI90+ Dimmable-

Product is Europe Standard & CE Certificate.

INTERIOR LED SURFACE MOUNTED SPOTLIGHT

L07141

IP20

CLASS III

Surface Mounted

400-600mm cable with quick connector.

Aluminium lighting fixture, powder coated.

Eyes friendly CE certificate RoHS standard

CRI90 OSRAM branded LED

Triac I 0/1-10V I DALI dimmable

Tunable White dimming

Warranty 5 Years

HIGH LUMINOUS EFFICIENCY AND UNIFORM DISTRIBUTION.

Code

System Power
W

Output Lumen
lm

Dimension
mm

Cut Hole
mm

Power Supply
mA

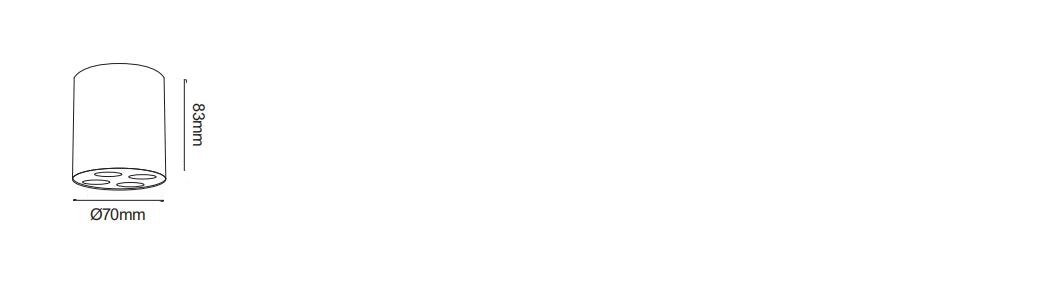

L07141 -8	4x2W	600lm	70xH83mm	mm	600mA

FEATURES

Fixed spot, an ideal accent lighting in residential or commercial. it provides a high level of visual comfort, ABS baffle. One housing, multiple options, with different light distributions for a wide varirty of applications. Easy installations. Visual comfort low glare optic with recessed light source. UGR<19. High Definition optics. -Uniform distribution. 4LEDs, OSRAM CRI90 2W/LED RAL9016 White I RAL9005 Black color finishing as standard. Customized color finishing, power changes are possible depending on the request and the quantity. It is presented to its customers as a clean and non-dazzling product.

Built-in Driver	Accessoires	Beam Angle	Color Temperature	Finishes
2W 600mA
