L05090 General Lighting    IP20

LED Panel lighting I Back lit I NO DARK AREA

LED panel lighting, Back lit I NO DARK AREA. Up to 180lm/W, A good panel light Soft light, eye protection, all-aluminum anti-rust, anti-oil and anti-fouling, Adopt all-aluminum frame, Built-in optical lens and LED chip make the light distribution more uniform and brighter, One lamp with multiple uses, suitable for different scenes, offices, schools, CRI90+. Customized size, IP rating, color finishing, control system, RGBW, installations and power changes are possible depending on the request and the quantity. including high quality LED Driver. 5year warranty

TECHICAL DATA

  • 3000-6400lm
  • Remote LED Driver
  • Aluminium frame, PS diffuser. anti-yellowing.
  • Flicker Free CRI90+ UGR<19
  • DALI I CASAMBI I DMX
  • Ceiling Recessed
  • Famous brand LED chips

Product is Europe Standard & CE Certificate.

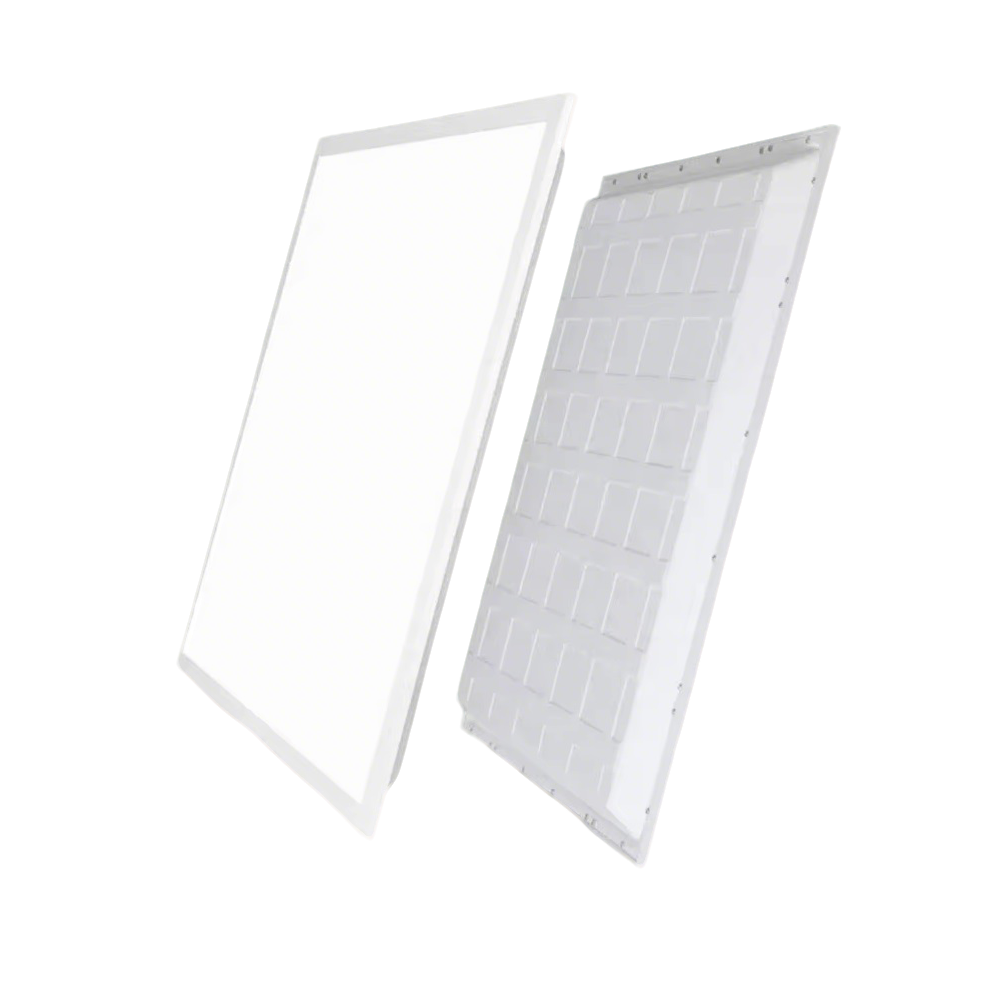

LED Panel lighting

L05090

IP20

CLASS III

Ceiling Recessed

ECO Energy Saving

Flicker Free

Eyes friendly CE certificate RoHS standard

CRI90+ famous brand LED Chips

Europe Standard & CE Certificate.

400-600mm cable with quick connector

DALI I CASAMBI Dinming

A single lighting solution with down option I Up to 180lm/W

Code System Power
W
Output Lumen
lm
Dimension
mm
Cut Hole
mm
Power Supply
mA
L05090-18 18W 3000lm

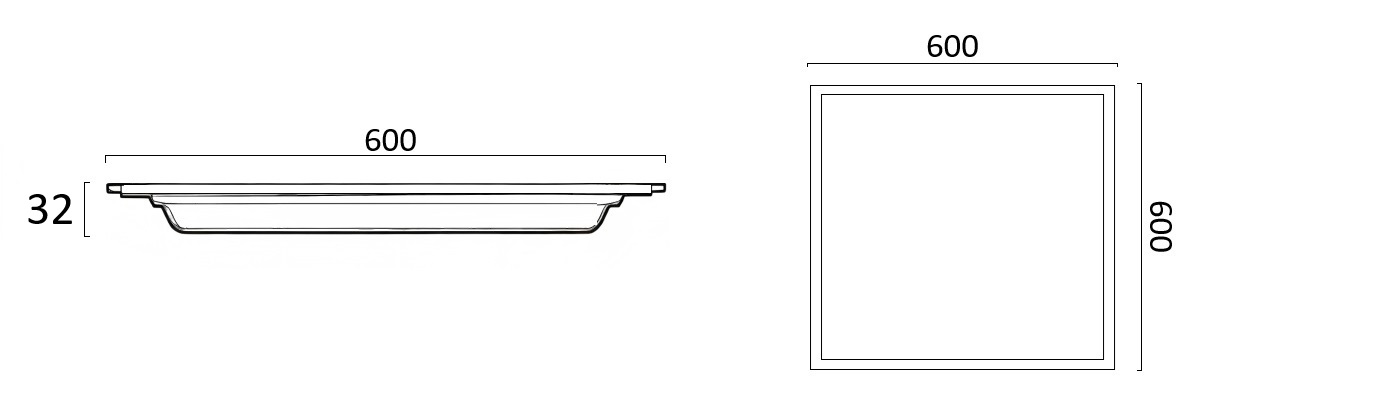

W600xL600xH32mm
600x600mm
450mA
L05090-24 24W 4300lm
W600xL600xH32mm
600x600mm
600mA
L05090-36 36W 6400lm
W600xL600xH32mm
600x600mm
900mA

FEATURES

LED panel lighting, Back lit I NO DARK AREA. Up to 180lm/W, A good panel light Soft light, eye protection, all-aluminum anti-rust, anti-oil and anti-fouling, Adopt all-aluminum frame, Built-in optical lens and LED chip make the light distribution more uniform and brighter, One lamp with multiple uses, suitable for different scenes, offices, schools, CRI90+. Customized size, IP rating, color finishing, control system, RGBW, installations and power changes are possible depending on the request and the quantity. including high quality LED Driver. 5year warranty

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
18W   450mA
24W   600mA
36W   900mA
