55 I 75 I 95

L03534 Spotlight    IP44

Aluminum material and powder coating. Remote LED driver version. Visual comfort. 35°adjustable 355°rotation.Same appearance both Fixed and Adjustable

Trimless installation I double adjustability 35°adjustable 355°rotation, Visual comfort low glare optic with recessed light source. Available for four different output beams 15/24/36/55°. They comprise a LED light module, a metal baffle and a metal mounting frame. Easy installations. it facilitates the installation by giving the opportunity to the installer to place the mounting frame in advance. No need to worry for the lighting modules in further finishing of the room, as the spotlight modules can be clicked into the frame afterwards, and easy to take it off the mounting frame. Easy to handle. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. The rotation and the right angled inclination make this product to be highly flexible and easy to handle.It is ideal for lighting architectural and artistic details up. An ideal engineering lighting solution for the mid-to-high-end market. The spotlight is presented to its customers as a clean and non-dazzling product. Compatible with wired and wireless dimming systems. 5-year warranty provided.

TECHICAL DATA

  • 800-2800lm
  • Remote LED Driver
  • Aluminium lighting fixture, powder coated.
  • Ceiling Recessed.
  • DALI I Triac I 0/1-10V I CASAMBI I DT8
  • 300-400mm cable with quick connector.
  • COB LED CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.

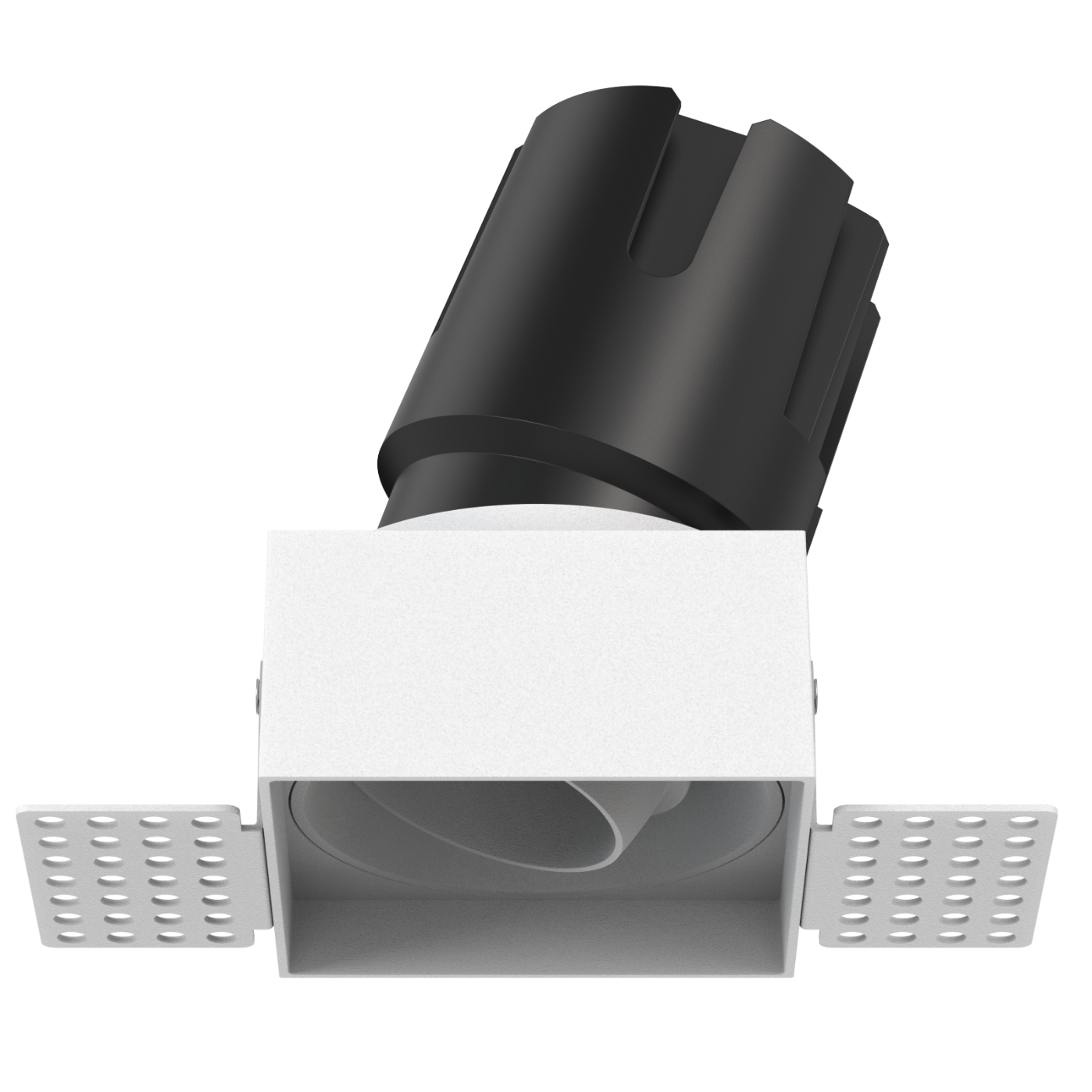

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03534

IP44

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

35°adjustable and 355°rotation.Same appearance both Fixed and Adjustable

Ceiling Recessed. Trimless

Aluminum die casting lighting fixture, powder coated.

COB LED CRI90+ 3SDCM

Flicker Free I Deeply recessed light source.

Remote LED Driver

DALI I Triac I 0/1-10V I CASAMBI I DT8

HIGHLY FLEXIBLE AND UNIFORM DISTRIBUTION

Code System Power
W
Output Lumen
lm

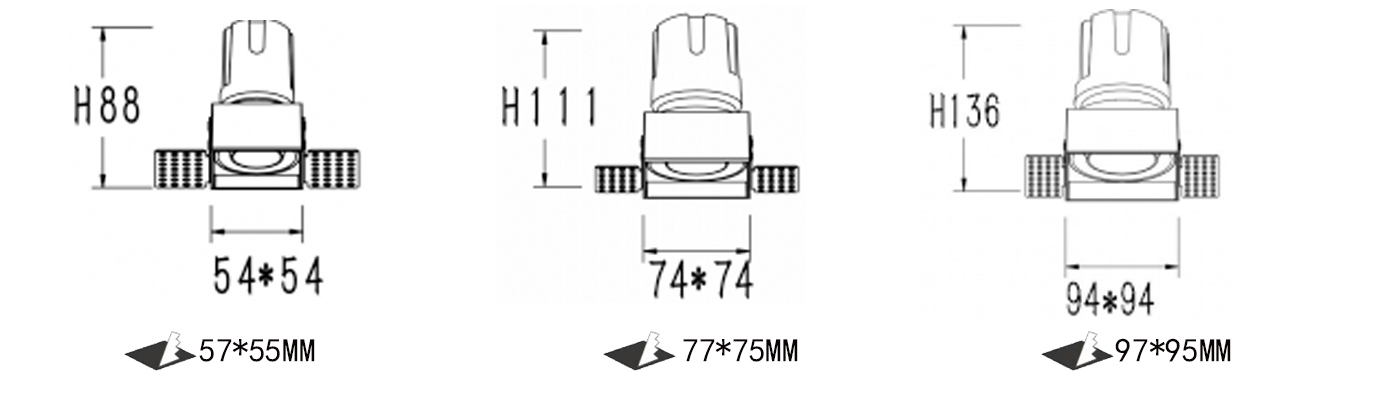

Dimension
mm
Cut Hole
mm
Power Supply
mA
L03534-10 10W 800lm
54x54xH89mm
57x55mm
250mA
L03534-20 20W 1600lm
77x75xH111mm
77x75mm
500mA
L03534-35 35W 2800lm
94x94xH137mm
97x95mm
875mA

FEATURES

Trimless installation I double adjustability 35°adjustable 355°rotation, Visual comfort low glare optic with recessed light source. Available for four different output beams 15/24/36/55°. They comprise a LED light module, a metal baffle and a metal mounting frame. Easy installations. it facilitates the installation by giving the opportunity to the installer to place the mounting frame in advance. No need to worry for the lighting modules in further finishing of the room, as the spotlight modules can be clicked into the frame afterwards, and easy to take it off the mounting frame. Easy to handle. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. The rotation and the right angled inclination make this product to be highly flexible and easy to handle.It is ideal for lighting architectural and artistic details up. An ideal engineering lighting solution for the mid-to-high-end market. The spotlight is presented to its customers as a clean and non-dazzling product. Compatible with wired and wireless dimming systems. 5-year warranty provided.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
10W   250mA
20W   500mA
35W   875mA
