140lm/W

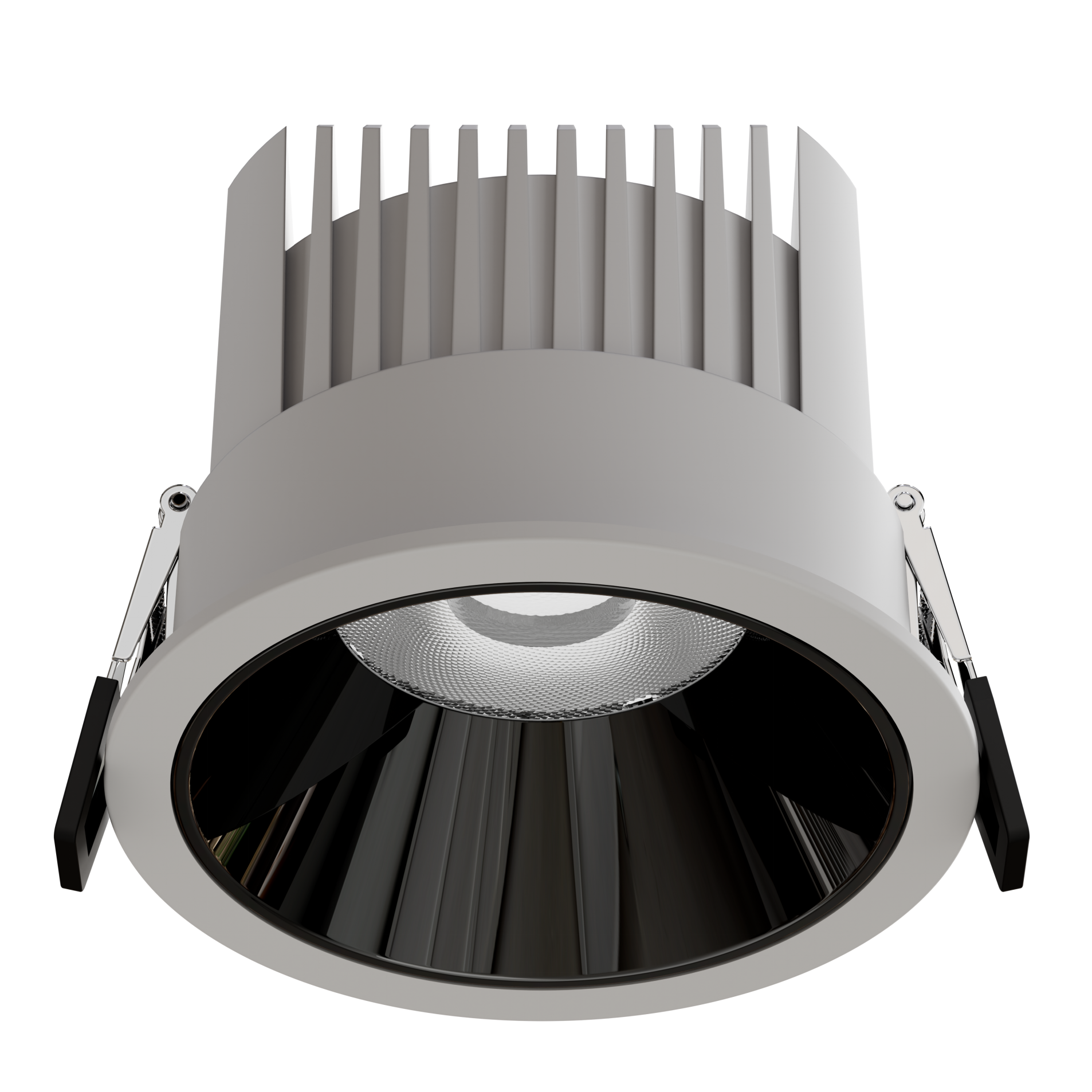

L02246 Spotlight    IP65

Aluminum die casting heat-sink, powder coating. Remote LED driver version. Deep cut-off angle

Fixed spotlight narrow trim, visual comfort，recessed light source. One housing achieved multiple options and different light distributions for a wide varirty of applications, the new creating that meets the needs of your residential and commercial projects. The spotlight offer homogeneous and uniform light distribution. High Efficiency Spotlight Up to 140lm/W, Famous brand SMD, high quality LED Driver. 5years warranty. Customized color finishing, power changes are possible depending on the request and the quantity. The baffle is available in multiple color finishing.

TECHICAL DATA

  • 1600-6500lm
  • Remote LED Driver
  • Aluminum die-casting lighting fixture, powder coated.
  • 300-400mm cable with quick connector.
  • DALI I Triac I 0/1-10V I DTW dimming
  • Ceiling, wall recessed.
  • SMD LED CRI90+ 2-3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWNLIGHT

L02246

IP65

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die casting material and powder coating

Ceiling recessed, Ceiling thickness 3-25mm

400-600mm cable with quick connector

Famous brand LED Chips 3SDCM CRI90

Flicker Free, Remote LED Driver version.

Recessed light source , eyes friendly

0/1-10V I Triac I DALI Tunable white dimming

High Efficiency Up to 140lm/W and Uniform Distribution

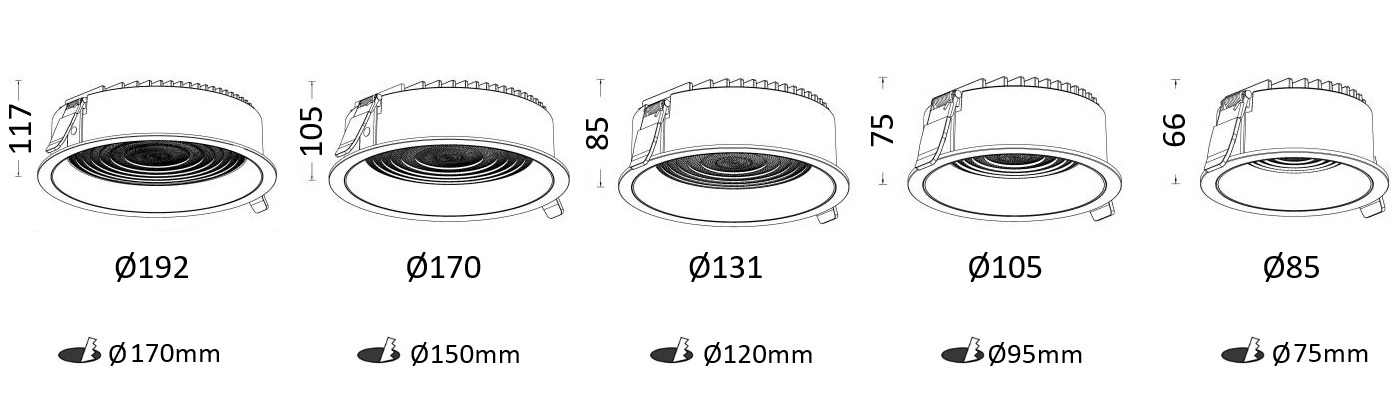

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L02246-12 12W 1600lm
85xH66mm
75mm
 250mA
L02246-20 20W 2800lm
105xH75mm
95mm
 500mA
L02246-25 25W 3500lm
131xH85mm
120mm
 650mA
L02246-38 38W 5500lm
170xH105mm
150mm
 1000mA
L02246-45 45W 6500lm
192xH117mm
170mm
 1100mA

FEATURES

Fixed spotlight narrow trim, visual comfort，recessed light source. One housing achieved multiple options and different light distributions for a wide varirty of applications, the new creating that meets the needs of your residential and commercial projects. The spotlight offer homogeneous and uniform light distribution. High Efficiency Spotlight Up to 140lm/W, Famous brand SMD, high quality LED Driver. 5years warranty. Customized color finishing, power changes are possible depending on the request and the quantity. The baffle is available in multiple color finishing,

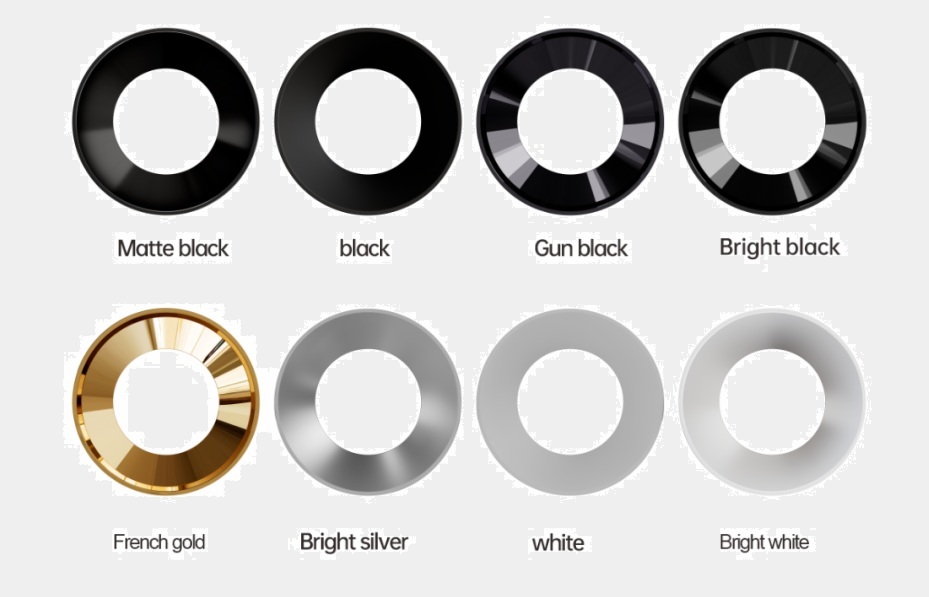

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
12W   250mA
20W   500mA
25W   650mA
38W   1000mA
45W   1100mA
