L02245 Spotlight IP20

Aluminum material and powder coating. Remote LED driver version. 140lm/W. 60° Fixed

The fixing SMD downlight , low glare optic , 60°. slim trim. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation with spring, up to 140lm/W. High Definition optical lenses in thermoplastic material,uniform distribution. Famous brand LED chips CRI90+ 3steps. Smart lighting, achieved CASAMBI I DALI DT8 dimmable. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more.

TECHICAL DATA

2100-5500lm
Remote LED Driver
Aluminum die-casting lighting fixture, powder coated.
Ceiling Recessed.
DALI I Triac I 0/1-10V I CASAMBI I DT8
300-400mm cable with quick connector.
SMD LED CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L02245

IP20

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

FIXED SMD DOWNLIGHT

Ceiling Recessed.

Aluminum die-casting lighting fixture, powder coated.

SMD LED CRI90+ 3SDCM

Flicker Free I Deeply recessed light source.

Remote LED Driver

DALI I Triac I 0/1-10V I CASAMBI I DT8

UNIFORM DISTRIBUTION

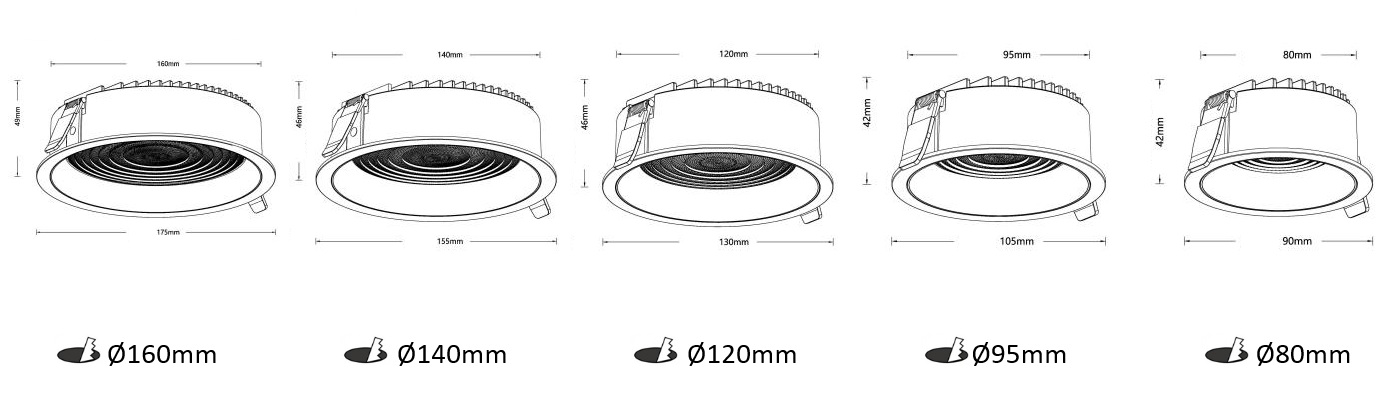

Code	System Power W	Output Lumen lm	Dimension mm	Cut Hole mm	Power Supply mA
L02245-15	15W	2100lm	90xH42mm	80mm	350mA
L02245-18	18W	2500lm	105xH42mm	95mm	450mA
L02245-24	24W	3300lm	130xH46mm	120mm	600mA
L02245-36	36W	5000lm	155xH46mm	140mm	900mA
L02245-40	40W	5500lm	175xH49mm	160mm	1000mA
