Ø55 I Ø75 I Ø95

L02230 Spotlight    IP44

Aluminum material and powder coating. Remote LED driver version. Visual comfort. High Efficiency upto 100lm/W. Ball catch system installation.

Aluminum material and powder coating. Lenses version. Remote LED driver version. IP44. UGR<2, Real high level of Visual comfort. High Efficiency upto 120lm/W. Modular Design,they comprise a LED light module, a plastic secondary reflector and a metal mounting frame. the secondary reflector is available in multiple color finishing. The lighting fixture is adjustable, Easy installations. it facilitates the installation by giving the opportunity to the installer to place the mounting frame in advance. No need to worry for the lighting modules in further finishing of the room, as the ball catch system installation,spotlight modules can be pushed into the mounting frame afterwards, and easy to take it off the mounting frame. very easy to handle. The spotlight offer homogeneous and uniform light distribution, available for four different output beams 15/24/36/55°. Tridonic branded 100,000 hours life time . Customized color finishing, power changes are possible depending on the request and the quantity. Ideal solution for accent lighting of the medium to high end projects, mainly suitable for Commercial areas, Hotel, Villa, Apartment, Restaurant, etc.

TECHICAL DATA

  • 1200-2880lm
  • Remote LED Driver
  • Aluminum lighting fixture, powder coated.
  • Ceiling Recessed.
  • DALI I Triac I 0/1-10V I CASAMBI
  • 300-400mm cable with quick connector.
  • CREE COB LED CRI90+ 2SDCM

Product is Europe Standard & CE Certificate.

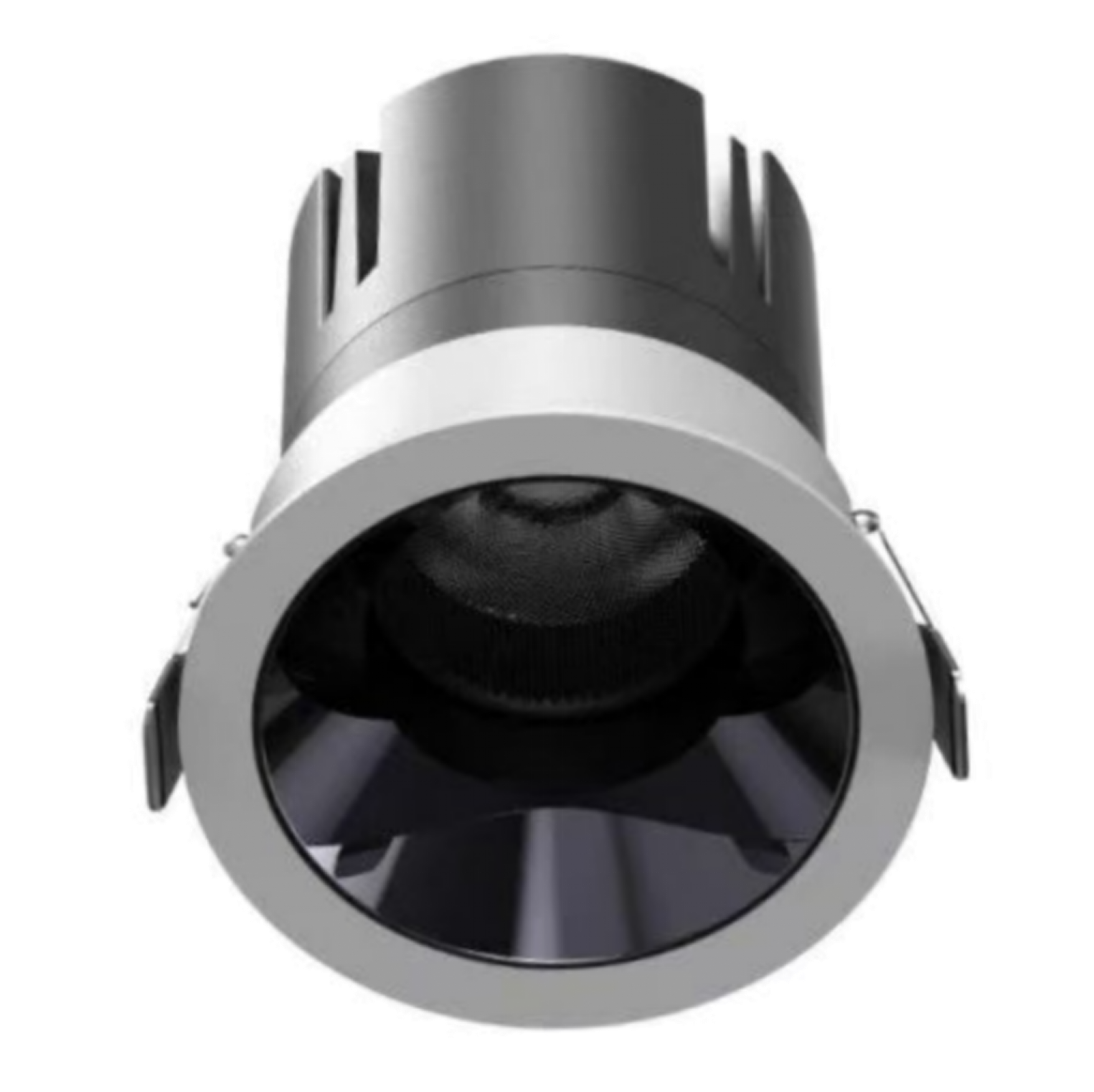

INTERIOR LED RECESSED DOWN SPOTLIGHT

L02230

IP44

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

35°adjustable 360°rotation

Ceiling Recessed.

Aluminum lighting fixture, powder coated.

COB LED CRI90+ 2SDCM

Flicker Free I Deeply recessed light source I Lenses

Remote LED Driver

DALI I Triac I 0/1-10V I CASAMBI

High Efficiency Spotlight & UGR<2

Code System Power
W
Output Lumen
lm
Dimension
mm
Cut Hole
mm
Power Supply
mA
L02230-10 10W 1200lm
65xH90mm
55mm
250mA
L02230-15 15W 1800lm
85xH102mm
75mm
350mA
L02230-24 24W 2880lm
105xH125mm
95mm
600mA

FEATURES

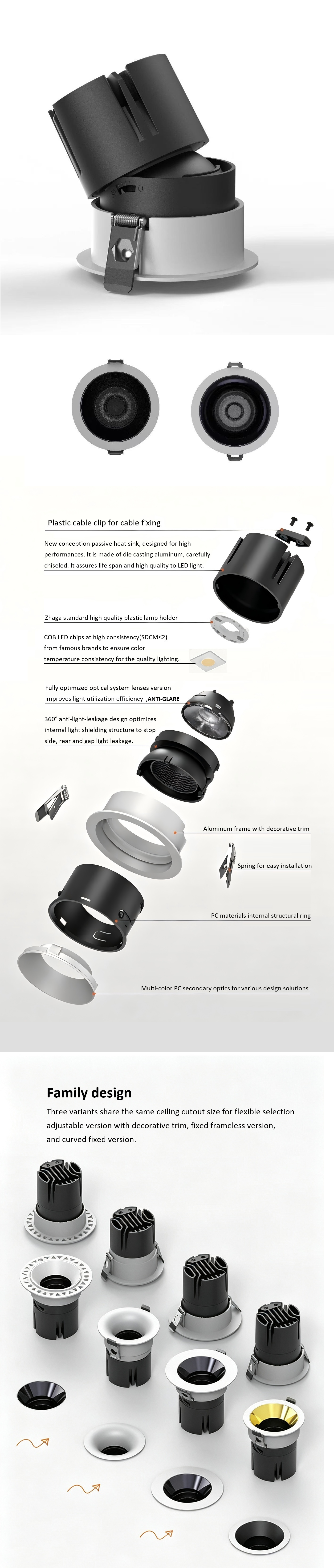

Aluminum material and powder coating. Lenses version. Remote LED driver version. IP44. UGR<2, Real high level of Visual comfort. High Efficiency upto 120lm/W. Modular Design,they comprise a LED light module, a plastic secondary reflector and a metal mounting frame. the secondary reflector is available in multiple color finishing. The lighting fixture is adjustable, Easy installations. it facilitates the installation by giving the opportunity to the installer to place the mounting frame in advance. No need to worry for the lighting modules in further finishing of the room, as the ball catch system installation,spotlight modules can be pushed into the mounting frame afterwards, and easy to take it off the mounting frame. very easy to handle. The spotlight offer homogeneous and uniform light distribution, available for four different output beams 15/24/36/55°. Tridonic branded 100,000 hours life time . Customized color finishing, power changes are possible depending on the request and the quantity. Ideal solution for accent lighting of the medium to high end projects, mainly suitable for Commercial areas, Hotel, Villa, Apartment, Restaurant, etc.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
10W   250mA
15W   350mA
24W   600mA
