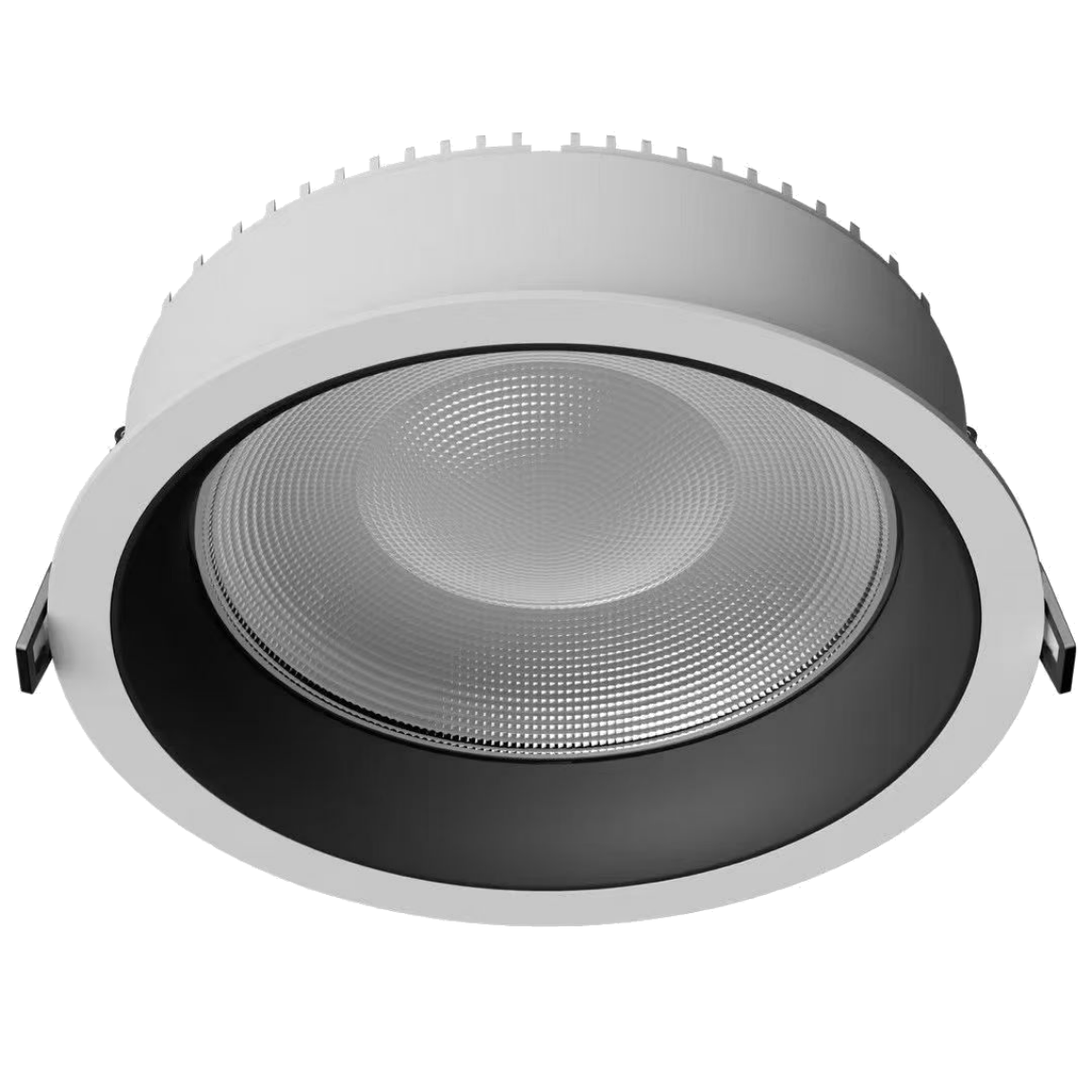

L03317 Spotlight IP40

Aluminium material and powder coating. Remote LED driver version. 120lm/W. 60° Fixed

The fixing SMD downlight , low glare optic , 60°. slim trim. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation with spring, up to 120lm/W. High Definition optical lenses in thermoplastic material,uniform distribution. Famous brand LED chips CRI90+ 3steps. Smart lighting, achieved CASAMBI I DALI DT8 dimmable. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more.

TECHICAL DATA

1000-2880lm
Remote LED Driver
Aluminium die-casting lighting fixture, powder coated.
Ceiling Recessed.
DALI I Triac I 0/1-10V I CASAMBI I DT8
300-400mm cable with quick connector.
SMD LED CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03317

IP40

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

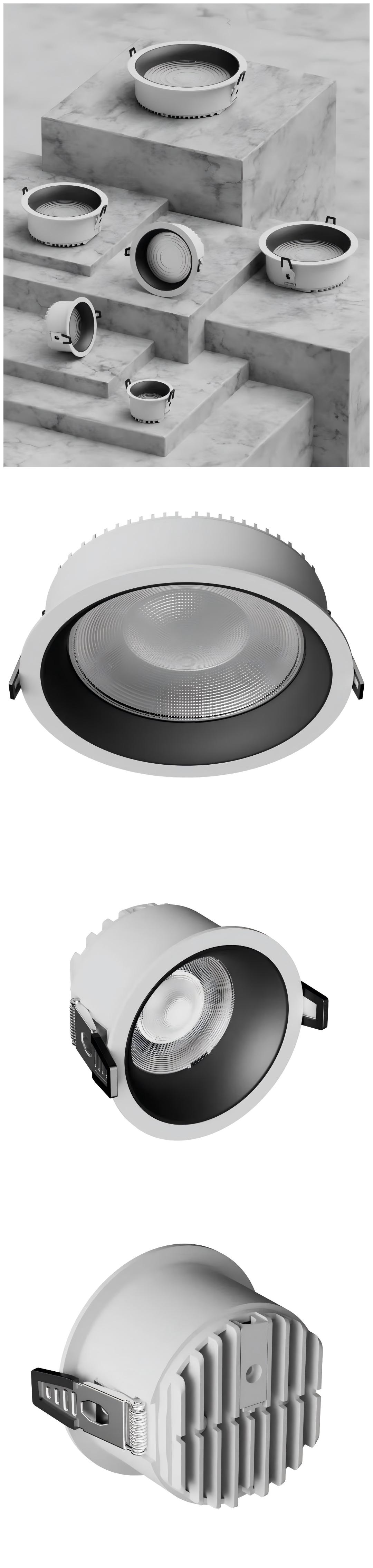

FIXED SMD DOWNLIGHT

Ceiling Recessed.

Aluminium die-casting lighting fixture, powder coated.

SMD LED CRI90+ 3SDCM

Flicker Free I Deeply recessed light source.

Remote LED Driver

DALI I Triac I 0/1-10V I CASAMBI I DT8

UNIFORM DISTRIBUTION

Code

System Power
W

Output Lumen
lm

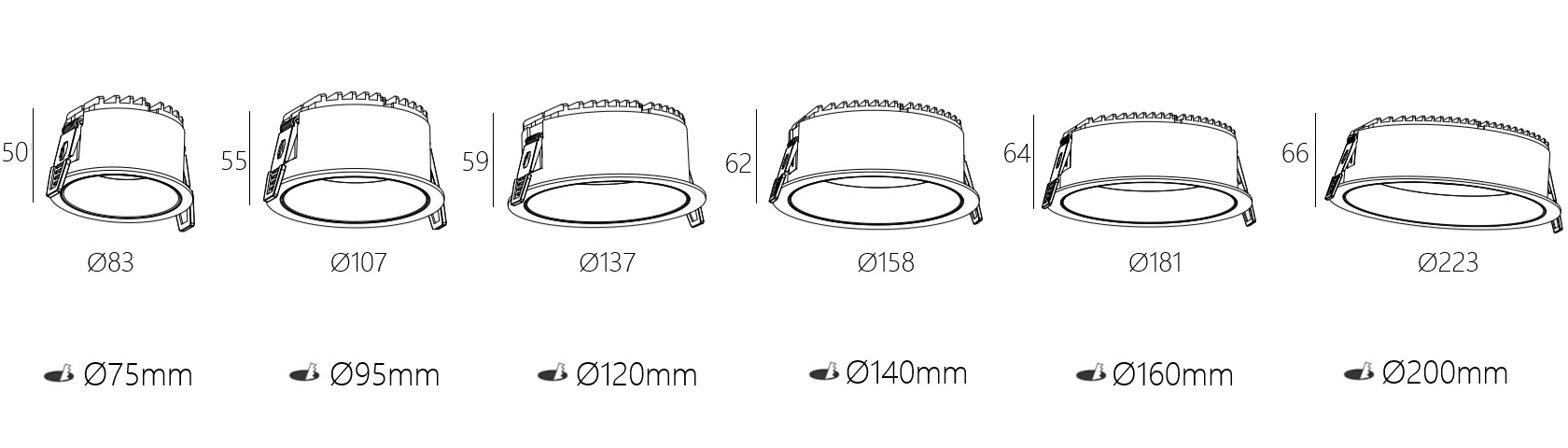

Dimension
mm

Cut Hole
mm

Power Supply
mA


L03317-10	10W	1000lm	83xH50mm	75mm	250mA


L03317-15	15W	1500lm	107xH55mm	95mm	375mA


L03317-22	22W	1980lm	137xH59mm	120mm	550mA


L03317-28	28W	2520lm	158xH62mm	140mm	700mA


L03317-32	32W	2880lm	181xH64mm	160mm	800mA

FEATURES

The fixing SMD downlight , low glare optic , 60°. slim trim. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation with spring, up to 120lm/W. High Definition optical lenses in thermoplastic material,uniform distribution. Famous brand LED chips CRI90+ 3steps. Smart lighting, achieved CASAMBI I DALI DT8 dimmable. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more.

Remote LED Driver	Accessoires	Beam Angle	Color Temperature	Finishes
10W 250mA 15W 375mA 22W 550mA 28W 700mA 32W 800mA
