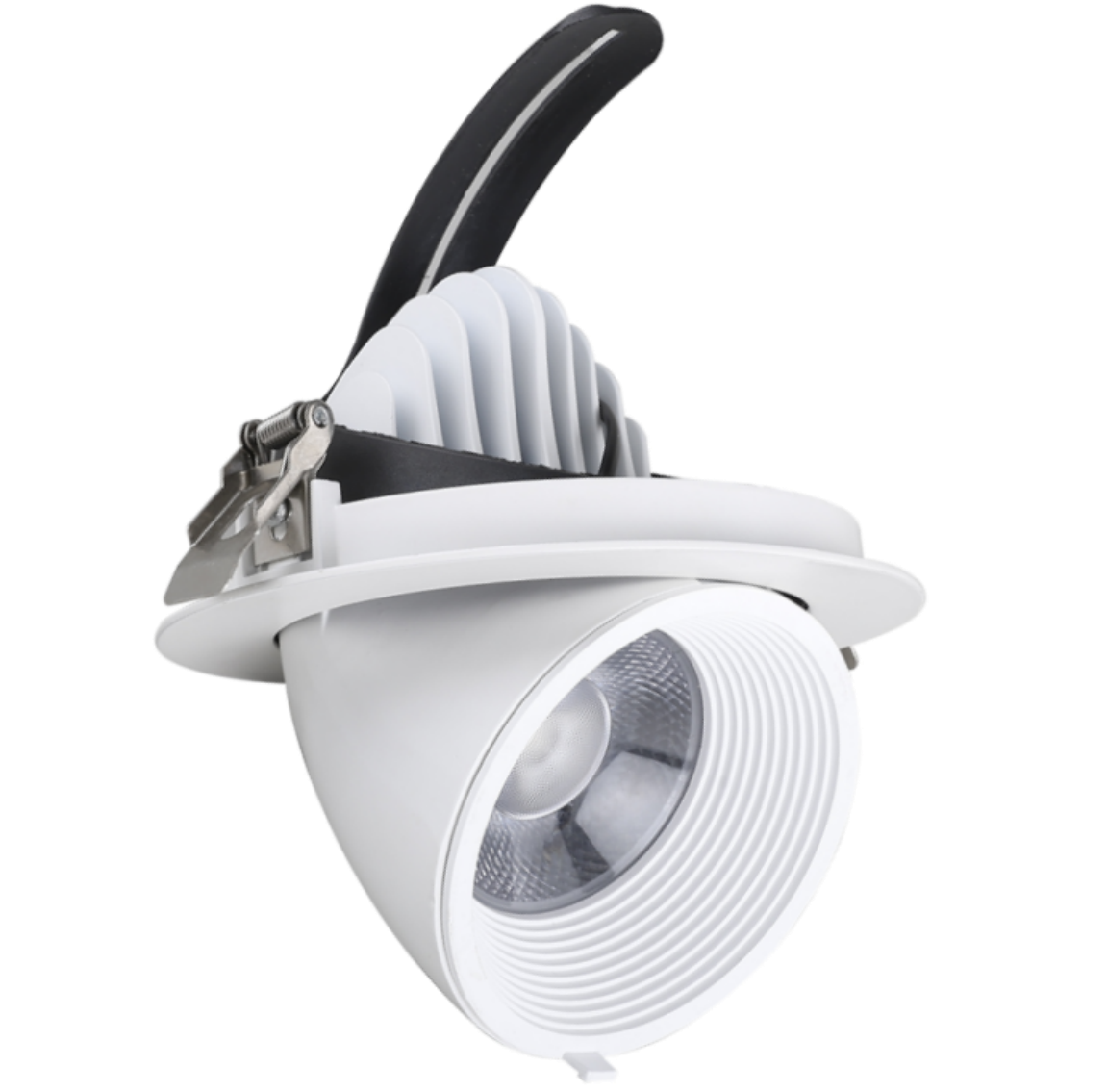

L03336 Spotlight IP40

Aluminium die casting material and powder coating. Remote LED driver version. High level of visual comfort. 45°adjustable 355°rotation. Plastic material baffle.

High level of visual comfort, deeply recessed light source. Available for three different output beams 15/24/36°. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation ceiling recessed with spring, A small downlight characterized by innovative and surprising solutions. The rotation and the right angled inclination make this product to be flexible and easy to handle. It is ideal for lighting architectural and artistic details up. High Definition optical lenses in thermoplastic material， uniform distribution. Famous brand LED chips CRI90+ 3steps. Smart lighting, achieved CASAMBI I DALI DT8 dimmable. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

TECHICAL DATA

900-3600lm
Remote LED Driver
Aluminium die-casting lighting fixture, powder coated.
Ceiling Recessed.
DALI I Triac I 0/1-10V I CASAMBI I DT8
300-400mm cable with quick connector.
Philips branded COB LED CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03336

IP40

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

45° vertical tilting, 355° horizontal rotation

Ceiling Recessed.

Aluminium die-casting lighting fixture, powder coated.

Philips branded COB LED CRI90+ 3SDCM

Flicker Free I Deeply recessed light source.

Remote LED Driver

DALI I Triac I 0/1-10V I CASAMBI I DT8

HIGHLY FLEXIBLE AND UNIFORM DISTRIBUTION

Code	System Power W	Output Lumen lm	Dimension mm	Cut Hole mm	Power Supply mA

Code

System Power
W

Output Lumen
lm

Dimension
mm

Cut Hole
mm

Power Supply
mA


L03336-9	9W	900lm	90xH70mm	75mm	225mA


L03336-15	15W	1500lm	110xH80mm	95mm	375mA


L03336-30	30W	2700lm	135xH96mm	120mm	750mA


L03336-40	40W	3600lm	165xH130mm	150mm	1000mA

FEATURES

Aluminium die casting material and powder coating. Remote LED driver version. 45°adjustable 355°rotation. Plastic material baffle. High level of visual comfort, deeply recessed light source. Available for three different output beams 15/24/36°. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation ceiling recessed with spring, A small downlight characterized by innovative and surprising solutions. The rotation and the right angled inclination make this product to be flexible and easy to handle. It is ideal for lighting architectural and artistic details up. High Definition optical lenses in thermoplastic material， uniform distribution. Famous brand LED chips CRI90+ 3steps. Smart lighting, achieved CASAMBI I DALI DT8 dimmable. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

Remote LED Driver	Accessoires	Beam Angle	Color Temperature	Finishes
9W 225mA 15W 375mA 30W 750mA 40W 1000mA

Data Sheet
