Ø65 I Ø80

L03306 Spotlight    IP20

Aluminium die casting material and powder coating. Remote LED driver version. High level of visual comfort. Dimmable.

Fixed spotlight with slim trim, visual comfort low glare optic. Uniform distribution and High output lumen. High quality LENES ， available for four different output beams 15/24/36. soft light, ideal solution for hotel, steel spring for easy installation. It is presented to its customers as a clean and non-dazzling product. Customized color finishing, power changes are possible depending on the request and the quantity.

TECHICAL DATA

  • 900-1400lm
  • Remote LED Driver
  • Aluminium die-casting lighting fixture, powder coated. RAL9010
  • 300-400mm cable with quick connector.
  • DALI I Triac I 0/1-10V I Tunable white dimming
  • Ceiling, wall recessed.
  • COB LED CRI97 3SDCM

Product is Europe Standard & CE Certificate.

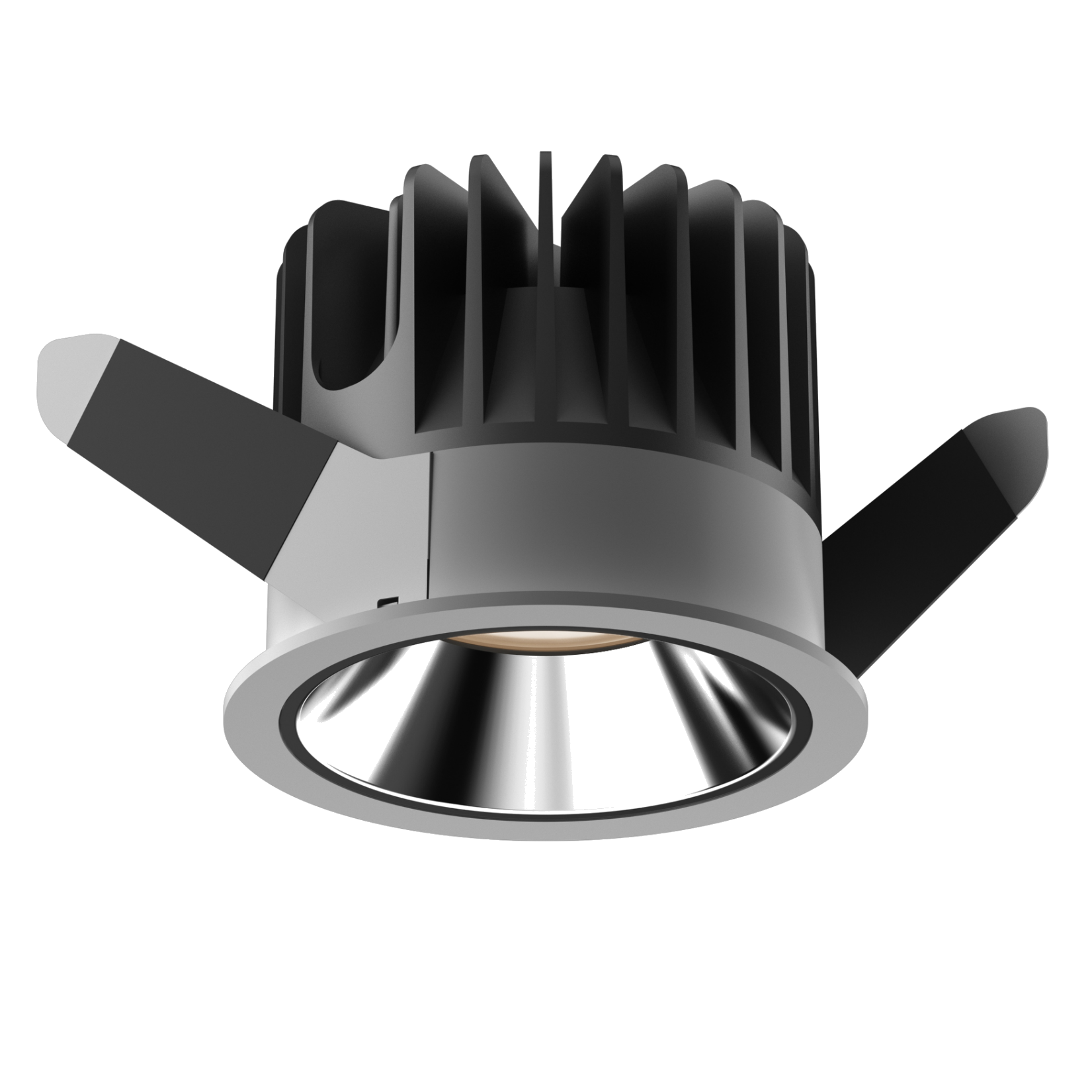

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03306

IP20

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die casting material and powder coating

Ceiling recessed, Ceiling thickness 3-25mm

400-600mm cable with quick connector

COB LED 3SDCM CRI97

Flicker Free, Remote LED Driver version. PF0.95

Deeply recessed light source. High level of visual comfort

0/1-10V I Triac I DALI Tunable white dimming

HIGH LEVEL OF VISUAL COMFORT AND UNIFORM DISTRIBUTION

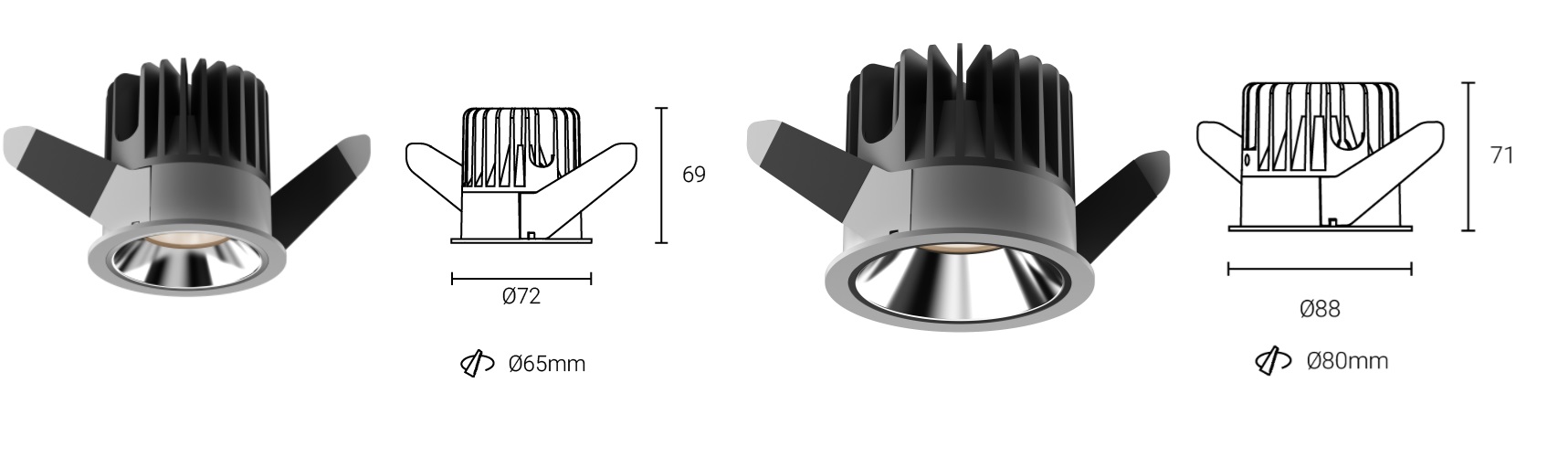

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L03306 -10 10W 900lm
72xH69mm
65mm
 250mA
L03306-15 15W 1400lm
88xH71mm
80mm
 350mA

FEATURES

CITIZEN COB LED Chips I 3SDCM I CRI97 I Visual comfort I Dimmable I Uniform distribution I Flicker-Free I Long lifetime I Simplify and reinvent the classiceasy installation Luminaires in this line have family design. fixed or adjustable, trim or trimless, One housing, multiple options, with different light distributions for a wide varirty of applications, the new creating that meets the needs of your residential and commercial projects. The spot lights offer homogeneous and uniform light distribution. soft light. easy installations. deeply recessed light source. High Definition optical lenses in thermoplastic material. Specialised optics and optical filters can be ordered. 5years warranty. Flicker-Free. Dimmable. Customized color finishing, power changes are possible depending on the request and the quantity.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
10W   250mA
15W   350mA
