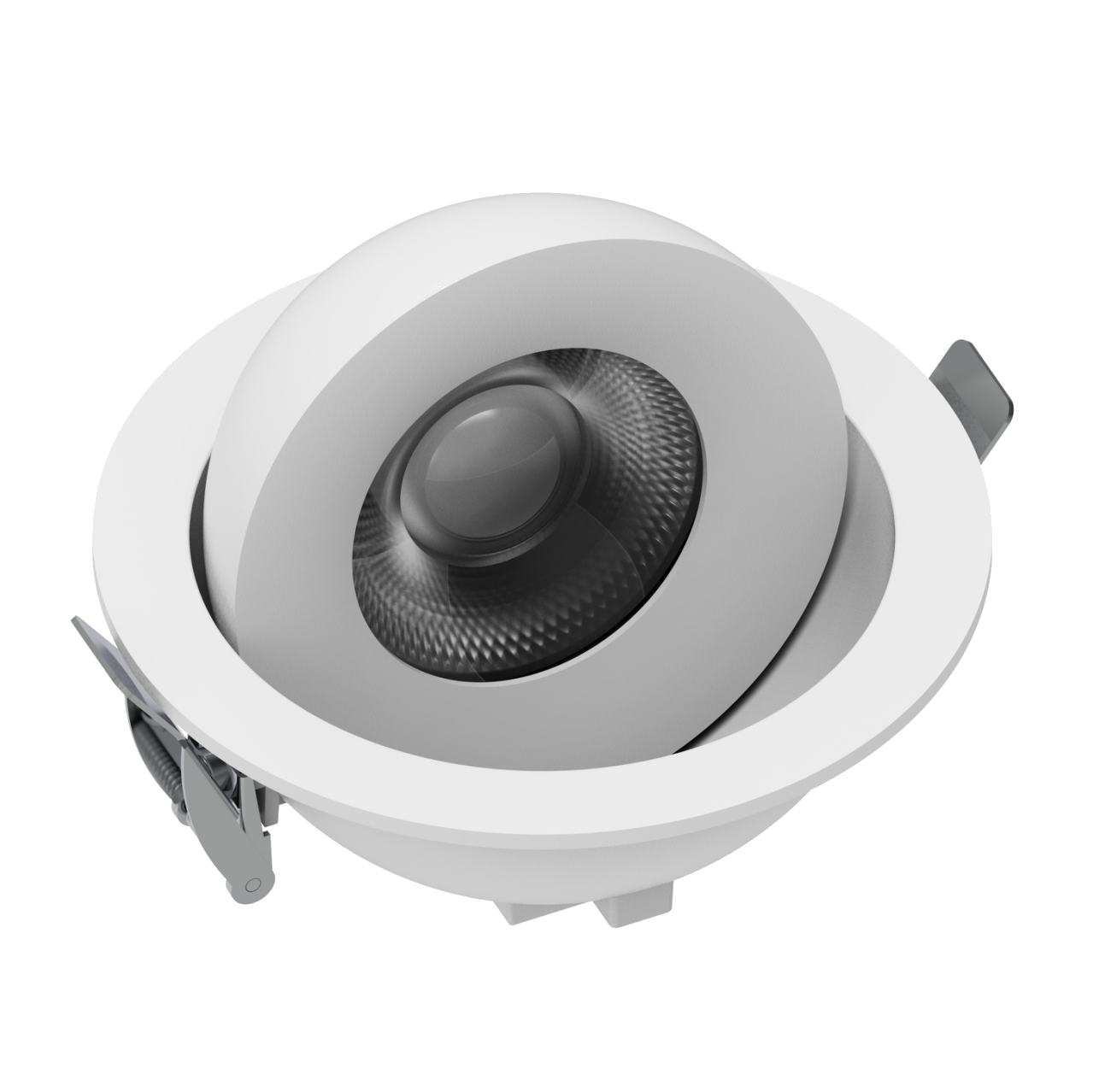

L03327 Spotlight    IP40

Aluminium die casting material and powder coating. Remote LED driver version. Double adjustability make the spotlight highly flexible and easy to handle, the light is emitted exactly where you want it.

The spotlight with slim trim. Aluminium die casting material and powder coating. Remote LED driver version. Height reduced. Double adjustability,90° vertical tilting and 360° horizontal rotation make the spotlight highly flexible and easy to handle, the light is emitted exactly where you want it. High Definition optical lenses in thermoplastic material,uniform distribution. Visual comfort low glare optic with recessed light source. Available for three different output beams 24/36/50°. Famous brand LED chips CRI90+ 3steps. Specialized optical filters honeycomb can be ordered. The basic model comes in white and black colors. Simple installation with steel springs. Energy savings up to 100lm/W. Smart lighting, achieved CASAMBI I DALI DT8 dimmable. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product. Customized color finishing, power changes are possible depending on the request and the quantity.

TECHICAL DATA

  • 800-1200lm
  • Remote LED Driver
  • Aluminium die-casting lighting fixture, powder coated.
  • Ceiling Recessed.
  • DALI I Triac I 0/1-10V I CASAMBI I DT8
  • 300-400mm cable with quick connector.
  • CREE branded COB LED CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03327

IP40

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

90° vertical tilting and 360° horizontal rotation

Ceiling Recessed.

Aluminium die-casting lighting fixture, powder coated.

CREE branded COB LED CRI90+ 3SDCM

Flicker Free I Deeply recessed light source.

Remote LED Driver

DALI I Triac I 0/1-10V I CASAMBI I DT8

HIGHLY FLEXIBLE AND UNIFORM DISTRIBUTION

Code System Power
W
Output Lumen
lm
Dimension
mm
Cut Hole
mm
Power Supply
mA
L03327-8 8W 800lm
82xH52mm
75mm
200mA
L03327-12 12W 1200lm
111xH53mm
95mm
300mA

FEATURES

The spotlight with slim trim. Aluminium die casting material and powder coating. Remote LED driver version. Height reduced. Double adjustability,90° vertical tilting and 360° horizontal rotation make the spotlight highly flexible and easy to handle, the light is emitted exactly where you want it. High Definition optical lenses in thermoplastic material,uniform distribution. Visual comfort low glare optic with recessed light source. Available for three different output beams 24/36/50°. Famous brand LED chips CRI90+ 3steps. Specialized optical filters honeycomb can be ordered. The basic model comes in white and black colors. Simple installation with steel springs. Energy savings up to 100lm/W. Smart lighting, achieved CASAMBI I DALI DT8 dimmable. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product. Customized color finishing, power changes are possible depending on the request and the quantity.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
8W   200mA
12W   300mA
