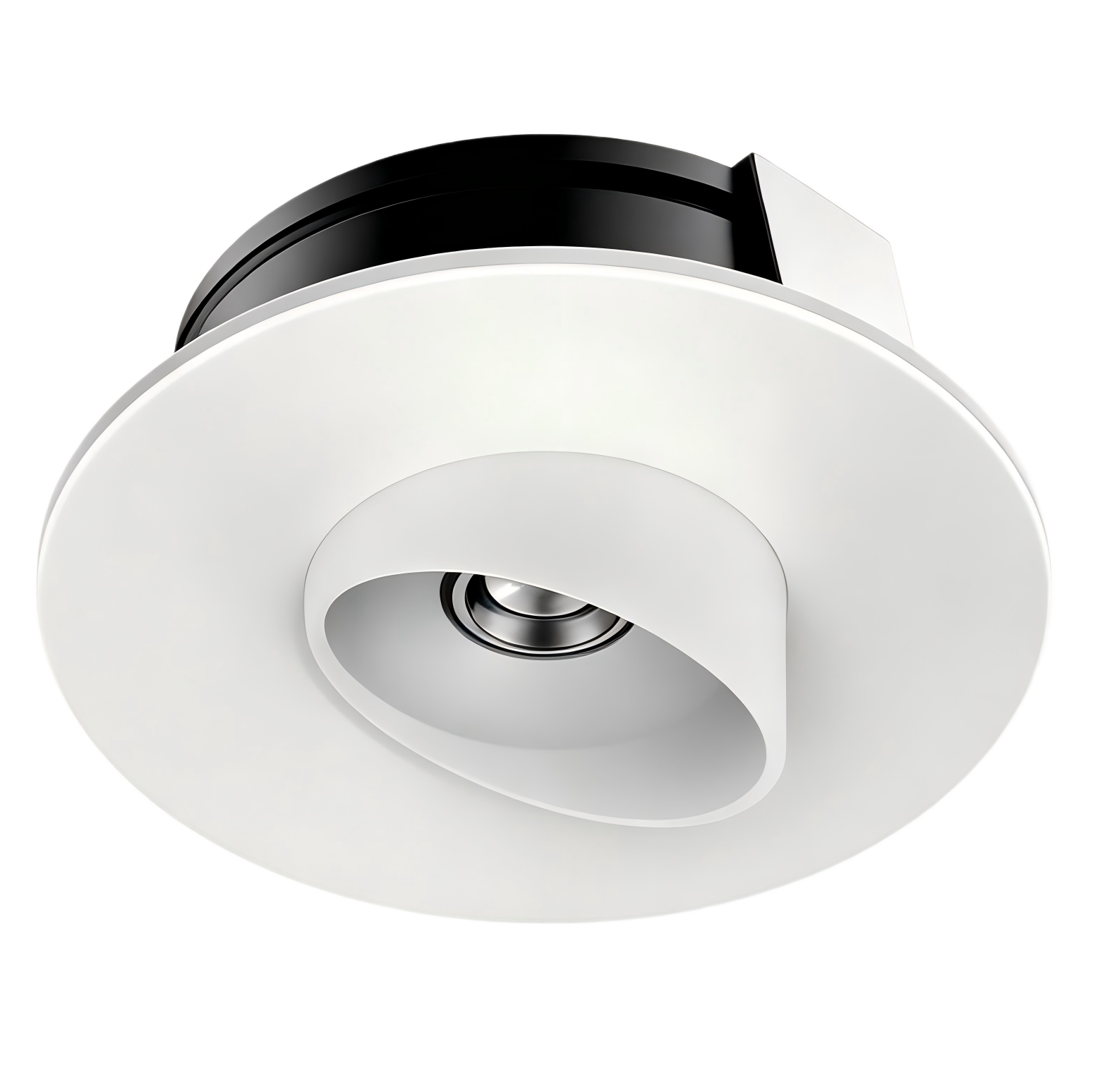

L06750 Spotlight    IP40

Aluminum material and powder coating. Fixed mini spotlight, height reduced.

Aluminum material and powder coating. Fixed mini spotlight, height reduced. , Visual comfort low glare optic , recessed light source. CREE LED. available for two different output beams 36/45°. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple recessed installation with spring, A small downlight characterized by innovative and surprising solutions. It is ideal for lighting architectural and artistic details up. High Definition optical lenses in thermoplastic material,uniform distribution. Famous brand LED chips CRI90+ 3steps. Smart lighting, achieved DALI DT6 dimmable. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

TECHICAL DATA

  • 100lm
  • Remote LED Driver
  • Aluminum lighting fixture, powder coated.
  • Ceiling Recessed.
  • DALI I Triac I 0/1-10V I CASAMBI I DT8
  • 300-400mm cable with quick connector.
  • COB LED CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L06750

IP40

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Fixed Spotlight

Ceiling Recessed.

Aluminum lighting fixture, powder coated.

CREE LED Chips CRI90+

Flicker Free I Deeply recessed light source.

Remote LED Driver

DALI dimmable I DT6

UNIFORM DISTRIBUTION

Code System Power
W
Output Lumen
lm

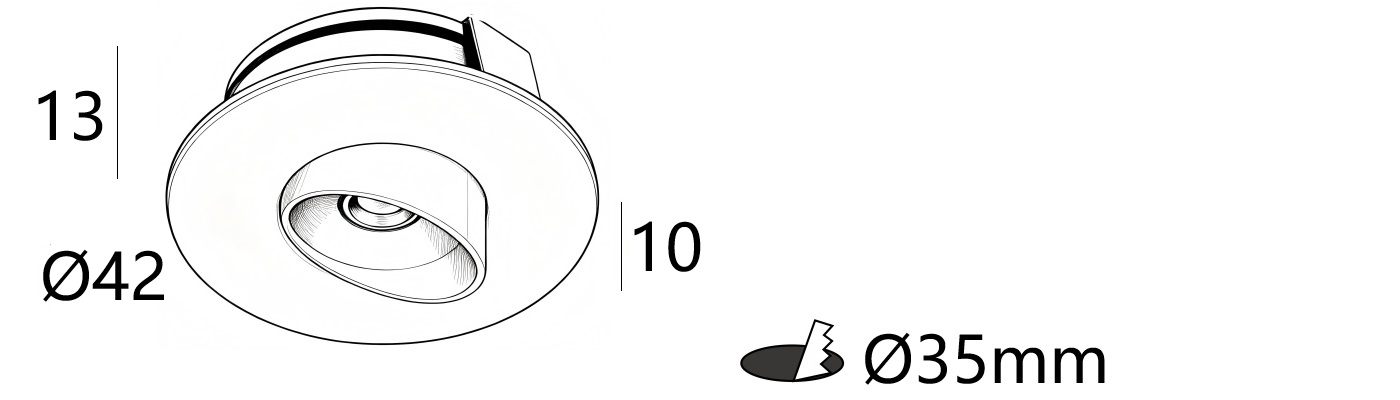

Dimension
mm
Cut Hole
mm
Power Supply
mA
L06750-1.5 1.5W 100lm
42xH13mm
35mm
250mA

FEATURES

Aluminum material and powder coating. Fixed mini spotlight, height reduced. , Visual comfort low glare optic , recessed light source. CREE LED. available for two different output beams 36/45°. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple recessed installation with spring, A small downlight characterized by innovative and surprising solutions. It is ideal for lighting architectural and artistic details up. High Definition optical lenses in thermoplastic material,uniform distribution. Famous brand LED chips CRI90+ 3steps. Smart lighting, achieved DALI DT6 dimmable. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

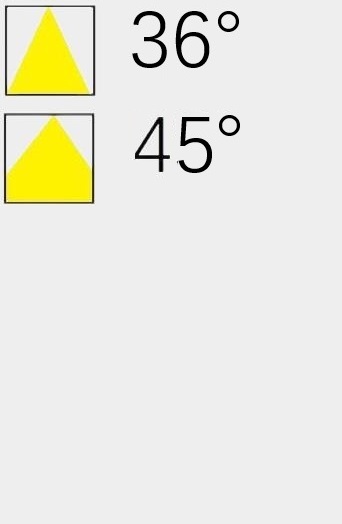

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
1.5W   250mA

The beauty of Jet-glory cylinder lighting fixtures is the consequence of an honest, crystal and precise way of thinking. They are beautiful and pure, just like the technology which is inside them. All the metallic parts of Jet-glory cylinder lighting fixtures are made through cutting machines which operate by stock removal. Jet-glory cylinder lighting fixtures is dug from the solid aluminum bar with numerically control LED machines, the component is first subjected to a buffing treatment, to be polished or satinised. It is then dipped into galvanising baths which oxidise the surface and give it hardness and weather resistance. through electroplating, painting or powder coating and brushed specify The quality of Jet-glory mechanical workings can be recognised even by touching them. The surface of the metallic components indicates the carefulness in the manufacture. The design of the best LED lighting fixture is closely related to the study of the thermal paths and to the solutions that guarantee the ideal working temperature, for each single application.
