mini pull out trimless

L02234 Spotlight    IP40

Aluminum material and Electroplating . Remote LED driver version. Visual comfort. 90°adjustable 360°rotation, pull-out. trimless

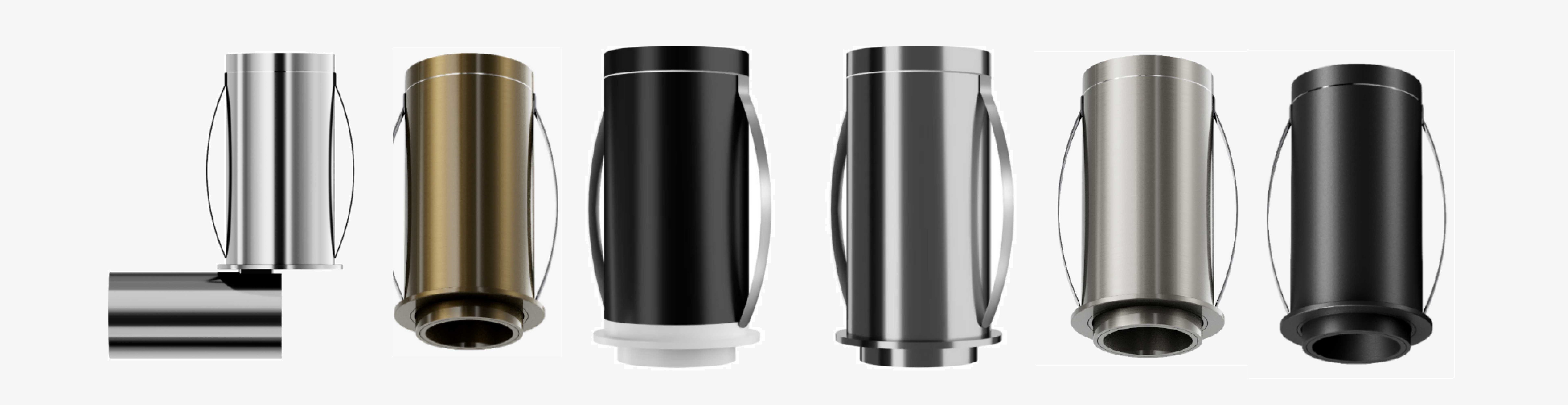

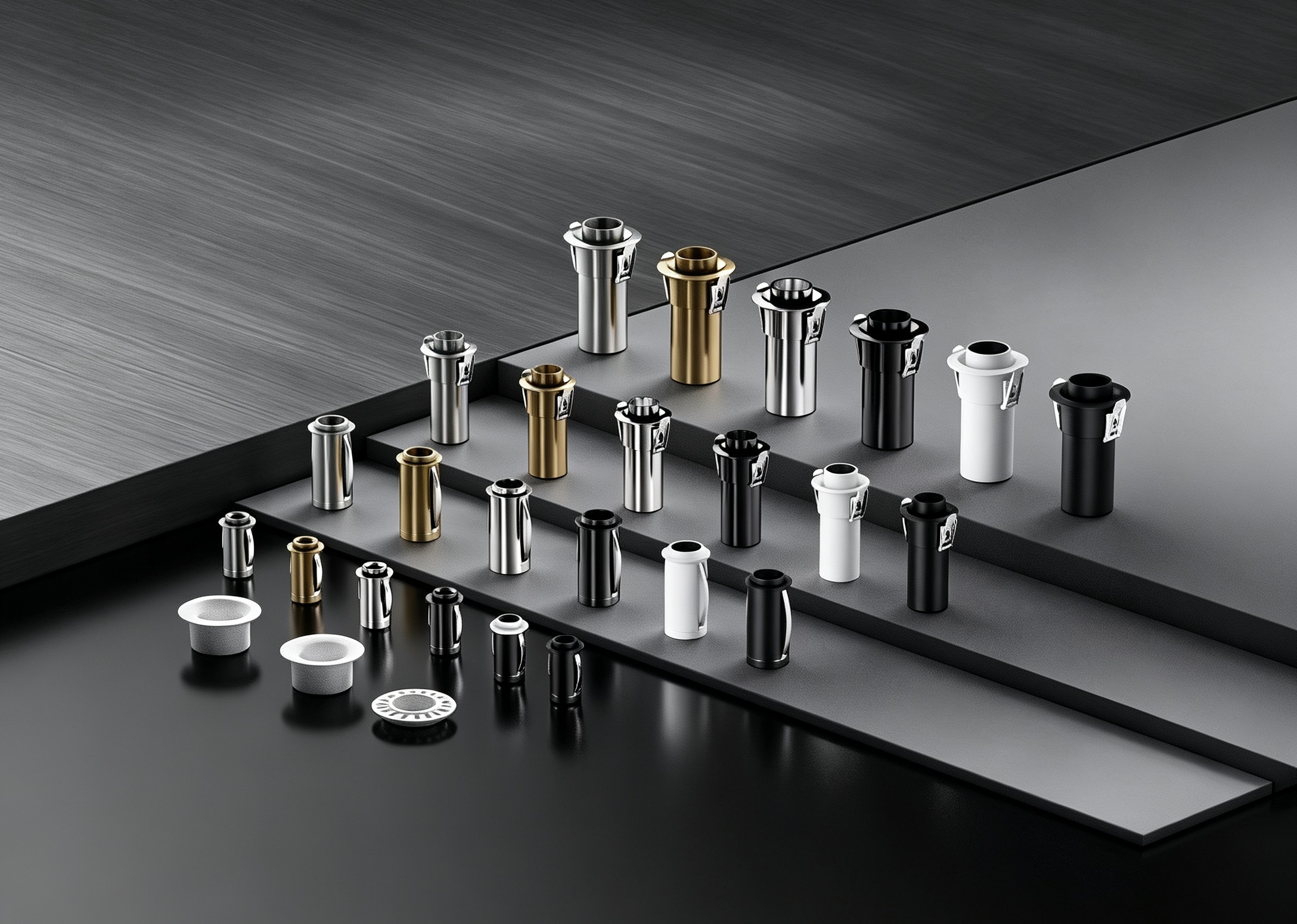

Trimless, Double adjustability, 90° vertical tilting and 360° horizontal rotation amd pull-out spotlight , Aluminum material and Electroplating . Remote LED driver version. Visual comfort low glare optic , recessed light source. available for five different output beams 10/15/24/36/50°. Up to six types of color finishing Matt Black I Polished Chrome I Polished Black Chrome I Antique Bronze I Brushed Nickel I White and Black colors. Simple installation with spring, A small downlight characterized by innovative and surprising solutions.The rotation and the right angled inclination make this product to be highly flexible and easy to handle.It is ideal for lighting architectural and artistic details up. High Definition optical lenses in thermoplastic material,uniform distribution. Famous brand LED chips CRI90+ 3steps. Smart lighting, achieve wired or wireless control. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

TECHICAL DATA

  • 120-650lm
  • Remote LED Driver
  • Aluminum material and Electroplating .
  • Ceiling Recessed. Trimless
  • DALI I Triac I 0/1-10V I CASAMBI I DT8
  • 300-400mm cable with quick connector.
  • Famous brand LED CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.


INTERIOR LED RECESSED DOWN SPOTLIGHT

L02234

IP40

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

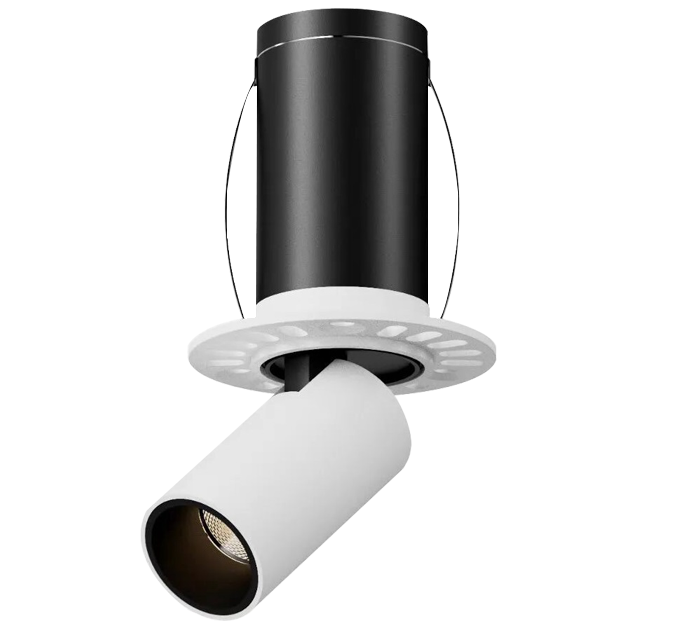

90° vertical tilting, 360° horizontal rotation and Pull-out

Ceiling Recessed. Trimless

Aluminum material and Electroplating .

Famous brand LED CRI90+ 3SDCM

Flicker Free I Deeply recessed light source.

Remote LED Driver

DALI I Triac I 0/1-10V I CASAMBI

HIGHLY FLEXIBLE AND UNIFORM DISTRIBUTION

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L02234-3 3W 120lm
30xH44mm
25mm
 700mA
L02234-7 7W 350lm
38xH68mm
35mm
 150mA
L02234-10 10W 500lm
54xH95mm
45mm
 250mA
L02234-12 12W 650lm
65xH99mm
55mm
 300mA

FEATURES

Trimless, Double adjustability, 90° vertical tilting and 360° horizontal rotation amd pull-out spotlight , Aluminum material and Electroplating . Remote LED driver version. Visual comfort low glare optic , recessed light source. available for five different output beams 10/15/24/36/50°. Up to six types of color finishing Matt Black I Polished Chrome I Polished Black Chrome I Antique Bronze I Brushed Nickel I White and Black colors. Simple installation with spring, A small downlight characterized by innovative and surprising solutions.The rotation and the right angled inclination make this product to be highly flexible and easy to handle.It is ideal for lighting architectural and artistic details up. High Definition optical lenses in thermoplastic material,uniform distribution. Famous brand LED chips CRI90+ 3steps. Smart lighting, achieve wired or wireless control. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
3W   700mA
7W   150mA
10W   250mA
12W   300mA

The beauty of Jet-glory cylinder lighting fixtures is the consequence of an honest, crystal and precise way of thinking. They are beautiful and pure, just like the technology which is inside them. All the metallic parts of Jet-glory cylinder lighting fixtures are made through cutting machines which operate by stock removal. The quality of Jet-glory mechanical workings can be recognised even by touching them. The surface of the metallic components indicates the carefulness in the manufacture. The design of the best LED lighting fixture is closely related to the study of the thermal paths and to the solutions that guarantee the ideal working temperature, for each single application.
