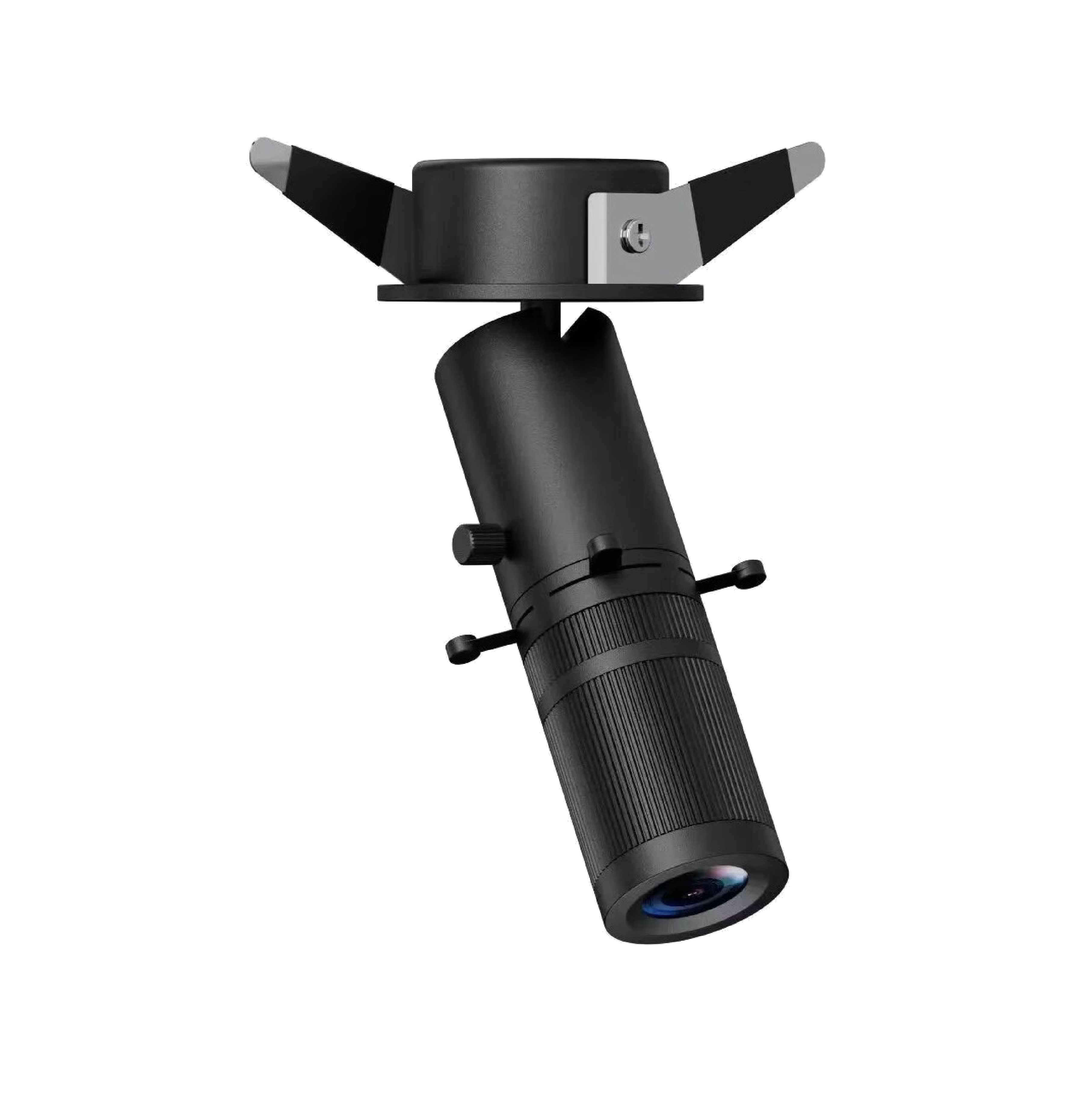

L02210 CUT-OFF LIGHT    IP20

Aluminum material and powder coating. Remote LED driver version. Multi-precision optical design, ultra-clear, no blue fringing, zero optical distortion. The light spot can be easily cut into various shapes. Ideal for museums and art galleries.

Double adjustability, 90°adjustable 355°rotation spotlight , Cut-Off Light series, recessed light source. available for four different output beams 10° I 90°. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation with spring, A small downlight characterized by innovative and surprising solutions.The rotation and the right angled inclination make this product to be highly flexible and easy to handle. A cut-off light is a professional lighting solution that uses precise light control technology to project light within preset boundaries. It clearly cuts the light into squares, rectangles, or other specific shapes, preventing light from spilling into areas that do not need to be illuminated. It is ideal for lighting architectural and artistic details up. Famous brand LED chips CRI97 2steps. Smart lighting, achieved CASAMBI I DALI DT8 dimmable. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. Make your design different from others immediately.

TECHICAL DATA

  • 600lm
  • Remote LED Driver
  • Aluminum lighting fixture, powder coated.
  • Ceiling Recessed.
  • DALI I Triac I 0/1-10V I CASAMBI I DT8
  • 300-400mm cable with quick connector.
  • COB LED CRI97 2SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L02210

IP20

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

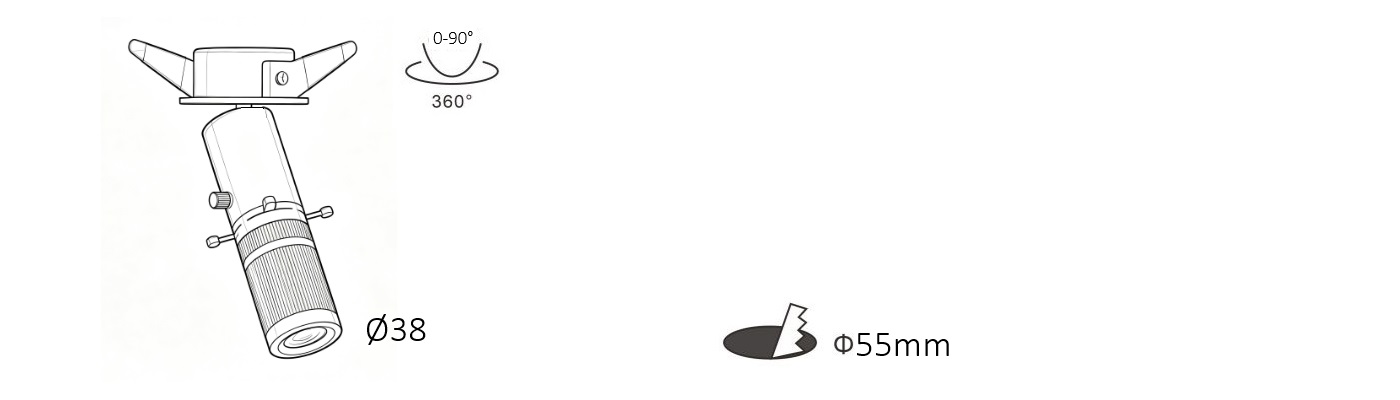

90° vertical tilting, 360° horizontal rotation

Ceiling Recessed.

Aluminum lighting fixture, powder coated.

COB LED CRI97 2SDCM

Flicker Free I Deeply recessed light source.

Remote LED Driver

DALI I Triac I 0/1-10V I CASAMBI I DT8

Custmized your own light shape

Code System Power
W
Output Lumen
lm
Dimension
mm
Cut Hole
mm
Power Supply
mA
L02210-9 9W 600lm
40xH200mm
55mm
200mA

FEATURES

Double adjustability, 90°adjustable 355°rotation spotlight , Cut-Off Light series, recessed light source. available for four different output beams 10° I 90°. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation with spring, A small downlight characterized by innovative and surprising solutions.The rotation and the right angled inclination make this product to be highly flexible and easy to handle. A cut-off light is a professional lighting solution that uses precise light control technology to project light within preset boundaries. It clearly cuts the light into squares, rectangles, or other specific shapes, preventing light from spilling into areas that do not need to be illuminated. It is ideal for lighting architectural and artistic details up. Famous brand LED chips CRI97 2steps. Smart lighting, achieved CASAMBI I DALI DT8 dimmable. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. Make your design different from others immediately.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
9W   200mA

The beauty of Jet-glory cylinder lighting fixtures is the consequence of an honest, crystal and precise way of thinking. They are beautiful and pure, just like the technology which is inside them. All the metallic parts of Jet-glory cylinder lighting fixtures are made through cutting machines which operate by stock removal. Jet-glory cylinder lighting fixtures is dug from the solid aluminum bar with numerically control LED machines, the component is first subjected to a buffing treatment, to be polished or satinised. It is then dipped into galvanising baths which oxidise the surface and give it hardness and weather resistance. through electroplating, painting or powder coating and brushed specify The quality of Jet-glory mechanical workings can be recognised even by touching them. The surface of the metallic components indicates the carefulness in the manufacture. The design of the best LED lighting fixture is closely related to the study of the thermal paths and to the solutions that guarantee the ideal working temperature, for each single application.

Compared to conventional floodlights, cut-off lights effectively reduce stray light and light pollution, making key areas such as building facades, walls, storefronts, and exhibition spaces stand out more prominently. At the same time, the crisp, clean edges of the light beam lend the overall lighting effect a sense of order and sophistication. Whether it’s small, elegant accent lighting fixtures or high-power architectural floodlights and landscape lighting fixtures, the cut-off light Series can accommodate a wide range of size requirements to deliver more precise and professional cut-off effects. In this latest release, the cut-off light series introduces two new beam angles—10° and 90°—offering a wider range of lighting options to meet various lighting needs. Ideal for long-distance projection, accent lighting, and spot lighting. The narrow beam angle concentrates the light, allowing you to precisely highlight architectural details, signage, sculptures, or specific display areas, making the illuminated objects stand out more prominently. Ideal for close-range, wide-area lighting applications. The wide beam angle covers a broader area of walls, facades, or display areas, enhancing overall lighting coverage and uniformity while ensuring a clear cutoff line. One is designed for “precise focusing,” while the other is designed for “wide-area coverage.” With the launch of the cut-off light 10° and 90° models, it now offers even more flexible lighting effects across different projection distances, illumination ranges, and application environments. In addition to expanded size and angle options, the cut-off light Series also offers lenses with external GOBO plates. The external GOBO plates feature a plug-and-play design, allowing for quick replacement of different patterns or light-blocking plates without the need for complicated disassembly or installation. Users can flexibly adjust the projection effects according to project requirements to achieve pattern projections, text projections, logo displays, and personalized light and shadow effects.    Compared to traditional built-in designs, replacing external GOBO plates is more convenient and allows for more efficient maintenance, while also opening up more creative possibilities for the use of these fixtures in commercial spaces, brand signage, exhibition halls, stages, and cultural and tourism night tours.
