L05011 General Lighting    IP20

Pendant Lighting, One-piece circular shape. Remote LED Driver version, Aluminium 6063 curved profile and powder coating. downlight. 5years warranty.

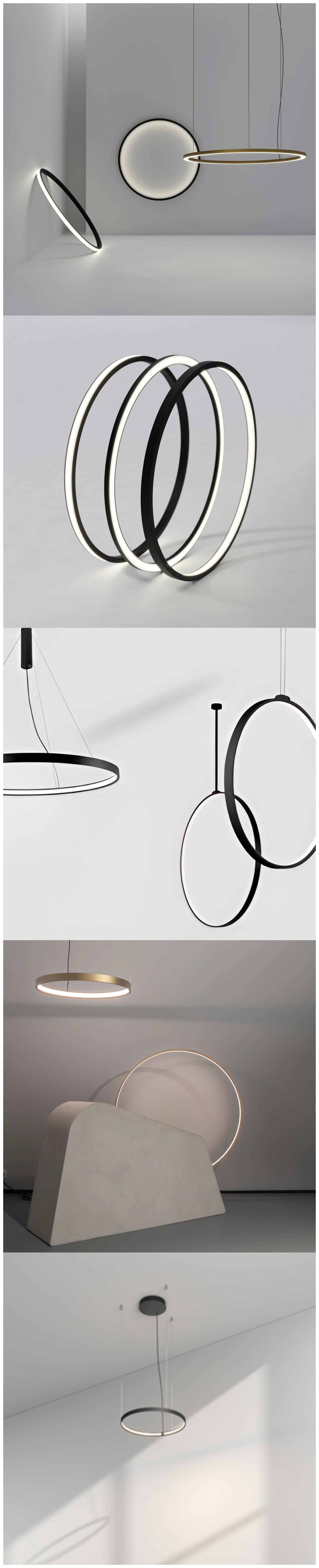

L05011 super circular light is a single lighting solution with linear downlight option. Aluminium 6063 curved profile and powder coating. high-CRI LED (CRI90+), 180° beam angle for general lighting. Remote LED Driver version, installed in ceiling rose, It is family, up to three types of light, inner side-lit light, downlight, and outer side-lit light, (L05011 is for downlight option). The lighting fixture can be hung using steel cables, based in one fixation point or multiple suspension points, or from a steel rod suspending the ring from the air. The lighting fixture is available in either a round or square shape. Engineered 48V low voltage. Improve visual comfort with the miniturised version of Superloop. Slim is unobtrusive and functional, shining a general lighting all round. Opt for one single pendant , surface mounted or combine different sizes and colours. Create a classic horizontal lighting setup with the circular light. It can be mounted vertically on a steel rod or fixed onto wall as well.Customized color finishing, size or power changes are possible depending on the request and the quantity. To match the specific look and feel of your design. Smart lighting, achieved CASAMBI I Dali-2 I DMX control I 5year warranty

TECHICAL DATA

  • 1800-3600lm
  • Remote LED Driver
  • Aluminium lighting fixture and powder coating
  • Flicker Free CRI90+ UGR<19
  • DALI I CASAMBI
  • Ceiling Suspended
  • Bridgelux branded LED chips

Product is Europe Standard & CE Certificate.

ALUMINIUM PROFILE LINEAR LIGHT - DOWNLIGHT

L05011

IP20

CLASS III

Pendant Lighting

ECO Energy Saving

Flicker Free

Eyes friendly CE certificate RoHS standard

CRI90+ Bridgelux branded SMD LED

Europe Standard & CE Certificate.

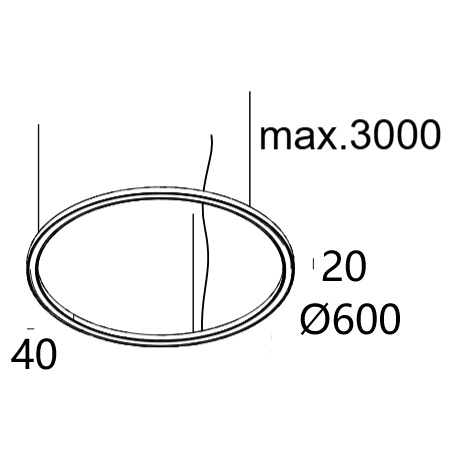

max. 3000mm cable length

Achieved DALI -2 I CASAMBI I on-off control

A single lighting solution with linear downlight

Code System Power
W
Output Lumen
lm
Dimension
mm
Cut Hole
mm
Power Supply
mA
L05011-20 20W 1800lm
W40xH20xD500mm
mm
mA
L05011-30 30W 2700lm
W40xH20xD600mm
mm
mA
L05011-40 40W 3600lm
W40xH20xD700mm
mm
mA

FEATURES

L05011 super circular light is a single lighting solution with linear downlight option. Aluminium 6063 curved profile and powder coating. high-CRI LED (CRI90+), 180° beam angle for general lighting. Remote LED Driver version, installed in ceiling rose, It is family, up to three types of light, inner side-lit light, downlight, and outer side-lit light, (L05011 is for downlight option). The lighting fixture can be hung using steel cables, based in one fixation point or multiple suspension points, or from a steel rod suspending the ring from the air. The lighting fixture is available in either a round or square shape. Engineered 48V low voltage. Improve visual comfort with the miniturised version of Superloop. Slim is unobtrusive and functional, shining a general lighting all round. Opt for one single pendant , surface mounted or combine different sizes and colours. Create a classic horizontal lighting setup with the circular light. It can be mounted vertically on a steel rod or fixed onto wall as well.Customized color finishing, size or power changes are possible depending on the request and the quantity. To match the specific look and feel of your design. Smart lighting, achieved CASAMBI I Dali-2 I DMX control I 5year warranty

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
20W   mA
30W   mA
40W   mA
