L09114 Spotlight    IP44

Aluminium cold forging material and powder coating. - Excellent cooling system. Integrated DALI dimmable Driver and adaptor. An ideal solution for accent lighting.

Aluminium lighting fixture, cold forging process and powder coated, Integrated cooling system to ensure the spotlight long lifetime. Luminaires are powered by a adaptor and built-in Driver ( on/off or DALI Driver). It allows 360°rotation about the vertical axis and 90° tilting relative to the horizontal plane make the spotlight highly flexible and easy to handle, the light is emitted exactly where you want it. The high performances and flexibility for every project. -High Definition optical lenses in thermoplastic material. Uniform distribution. Specialized optical filters can be ordered. An ideal solution for accent lighting. The light spots were natural transition, clear and soft. 3SDCM to ensure color temperature consistency for the quality lighting. Excellent colour rendering with high CRI90+, it's perfect for a wide range of food, flowers, clothes, and in general for other display lighting applications. Compatible with European standard 3-phase track system. The standard product comes in RAL 9005 Black I RAL 9016 White color finishing. On the request it can be offered in any RAL colour, matching the specific look and feel of your design. For the customized color the delivery times will be a bit longer. Warranty 5Years.

TECHICAL DATA

  • 800-1000lm
  • Track Light
  • Aluminium lighting fixture, powder coated.
  • Integrated cooling system to ensure the spotlight long lifetime.
  • Double adjustability 90°adjustable 355°rotation,
  • European standard 3-phase track rails
  • CITIZEN branded COB LED Chips I CRI90+ I 3SDCM

Product is Europe Standard & CE Certificate.

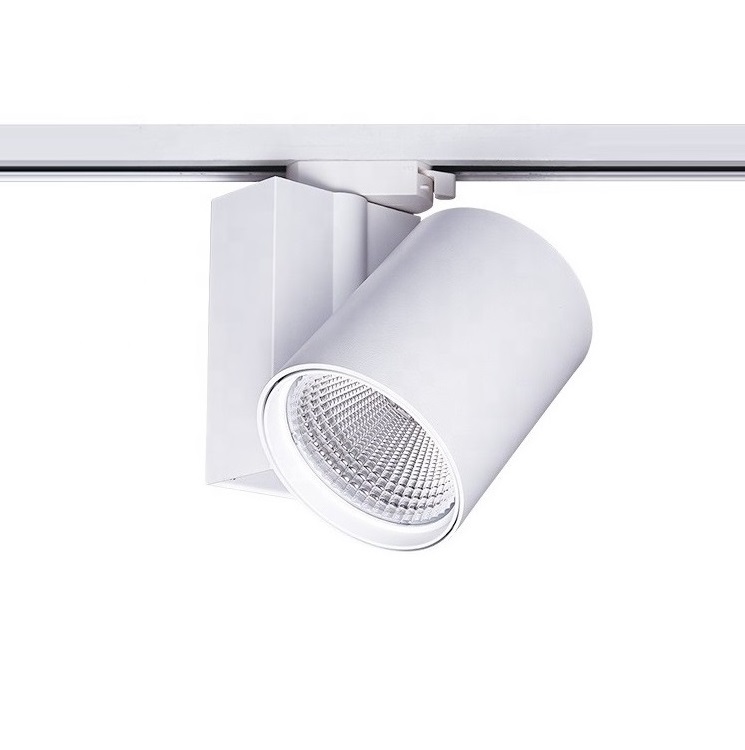

LED TRACK SPOTLIGHT

L09113

IP44

CLASS III

European standard 3-phase 4 wires track rails

ECO Energy Saving. I CE certificate I RoHS standard

Aluminium cold forging and powder coating housing

Eyes friendly UGR<19

CRI90+ I CITIZEN COB LED I 3SDCM

220-240V I 50/60Hz I DALI DT6 I ON/OFF I Phase Dim

Double adjustability 90°adjustable 355°rotation

Warranty 5Years

EXCELLENT COOLING SYSTEM AND UNIFORM DISTRIBUTION

Code System Power
W
Output Lumen
lm
Dimension
mm
Cut Hole
mm
Power Supply
mA
L09114-11 11W 800lm
62x170mm
mm
300mA
L09113-11-DALI 11.5W 800lm
62x170mm
mm
300mA
L09113-15 15W 1000lm
62x170mm
mm
350mA

FEATURES

Aluminium lighting fixture, cold forging process and powder coated, Integrated cooling system to ensure the spotlight long lifetime. Luminaires are powered by a adaptor and built-in Driver ( on/off or DALI Driver). It allows 360°rotation about the vertical axis and 90° tilting relative to the horizontal plane make the spotlight highly flexible and easy to handle, the light is emitted exactly where you want it. The high performances and flexibility for every project. -High Definition optical lenses in thermoplastic material. Uniform distribution. Specialized optical filters can be ordered. An ideal solution for accent lighting. The light spots were natural transition, clear and soft. 3SDCM to ensure color temperature consistency for the quality lighting. Excellent colour rendering with high CRI90+, it's perfect for a wide range of food, flowers, clothes, and in general for other display lighting applications. Compatible with European standard 3-phase track system. The standard product comes in RAL 9005 Black I RAL 9016 White color finishing. On the request it can be offered in any RAL colour, matching the specific look and feel of your design. For the customized color the delivery times will be a bit longer. Warranty 5Years.

Track Light Accessoires Beam Angle Color Temperature Finishes
11W   300mA
11.5W   300mA
15W   350mA
