L03122DTW Spotlight    IP54

Aluminium die casting material and powder coating. Remote LED driver version. Deep cut-off angle 45°. The lock connection design between the installation kit and the spotlight to ensure safety and easy installation.

One housing achieved multiple options and different light distributions for a wide varirty of applications, the new creating that meets the needs of your residential and commercial projects. The spotlight offer homogeneous and uniform light distribution. High-quality mixing effect achieved. White and bright to warm and dim, tunable white gives character to it's environment. The light spot are remain the same while the color change, and there is almost no effect on the light spot. The edge is cut off, the outline of the time spot range is clearly visible when washing the wall, and the interior is uniformly transitioned. Achieve a pleasing and soft effect of the wall washing spot. Dimming from 0~100%, down to 0.01%. Recessed light source. High Definition optical lenses in thermoplastic material. Specialized optics and optical filters can be ordered. 5years warranty. Customized color finishing, power changes are possible depending on the request and the quantity. The metal baffle is available in multiple color finishing, Black I White I Gold. Moreover, the IP54 and IP65 rating on same one luminaries ( IP54 standard, IP65 customized)means that they can be used even in bathroom or other damp indoor locations. This enables you to continue the ceiling uniformity throughout bathrooms, wellness areas and other indoor damp locations..

TECHICAL DATA

  • 1000-1350lm
  • Remote LED Driver
  • Aluminium die casting material , powder coated.
  • 300-400mm cable with quick connector.
  • L03122DTW DALI Tunable White 2700K-6500K CCT.
  • L03122DDW DALI Dimm to Warm 1800K-4000K CCT .
  • Bridgelux branded LED chips CRI>90 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03122

IP54

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die casting and powder coating.

Ceiling recessed, Plaster-in. Trimless

5years Warranty

Bridgelux branded LED 3SDCM CRI90 CCT2700K-6500K

Flicker Free, Remote LED Driver version.

Deeply recessed light source. Visual comfort.

DALI Tunable White Dimming from 0~100%, down to 0.01%.

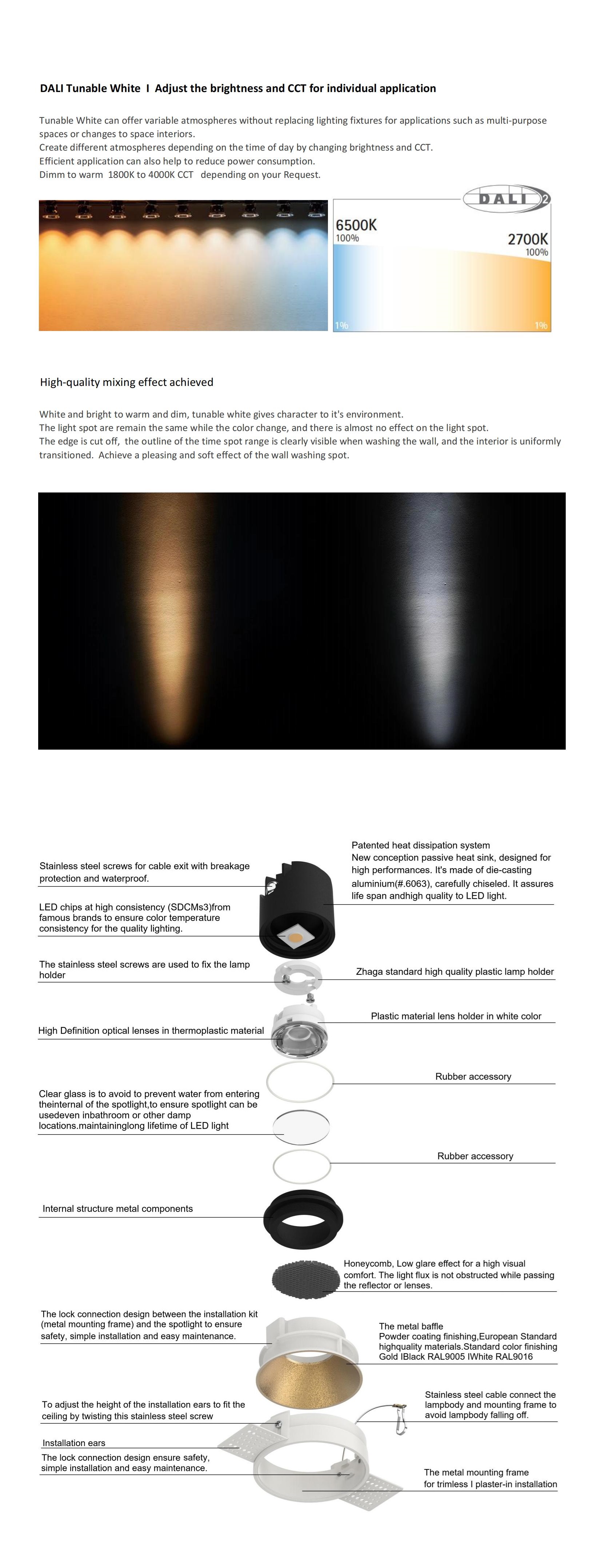

UNIFORM DISTRIBUTION AND SOFT LIGHT

Code System Power
W
Output Lumen
lm
Dimension
mm
Cut Hole
mm
Power Supply
mA
L03122DTW-12 12W 1000lm
144xH90mm
86mm
300mA
L03122DTW-15 15W 1350lm
144xH90mm
86mm
350mA
L03122DDW-15 15W 1350lm
144xH90mm
86mm
350mA

FEATURES

DALI Tunable White dimming 2700K-6500K CCT. Luminaires in this line have modular design. They comprise a LED light module, a metal baffle and a metal mounting frame. One housing achieved multiple options and different light distributions for a wide varirty of applications, the new creating that meets the needs of your residential and commercial projects. Easy installations. High Definition optical lenses in thermoplastic material. Specialized optics and optical filters can be ordered. 5years warranty. Flicker-Free. Dimmable. Customized color finishing, power changes are possible depending on the request and the quantity. Moreover, the IP54 and IP65 rating on same one luminaries ( IP54 standard, IP65 customized)means that they can be used even in bathroom or other damp indoor locations. This enables you to continue the ceiling uniformity throughout bathrooms, wellness areas and other indoor damp locations.

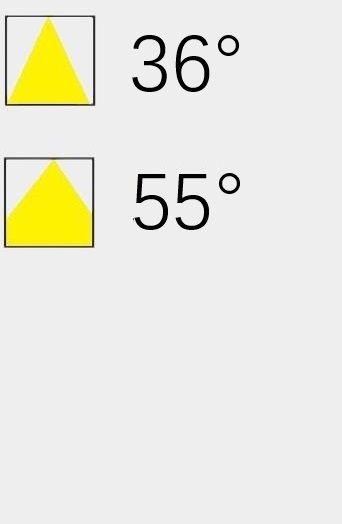

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
12W   300mA
15W   350mA
15W   350mA
