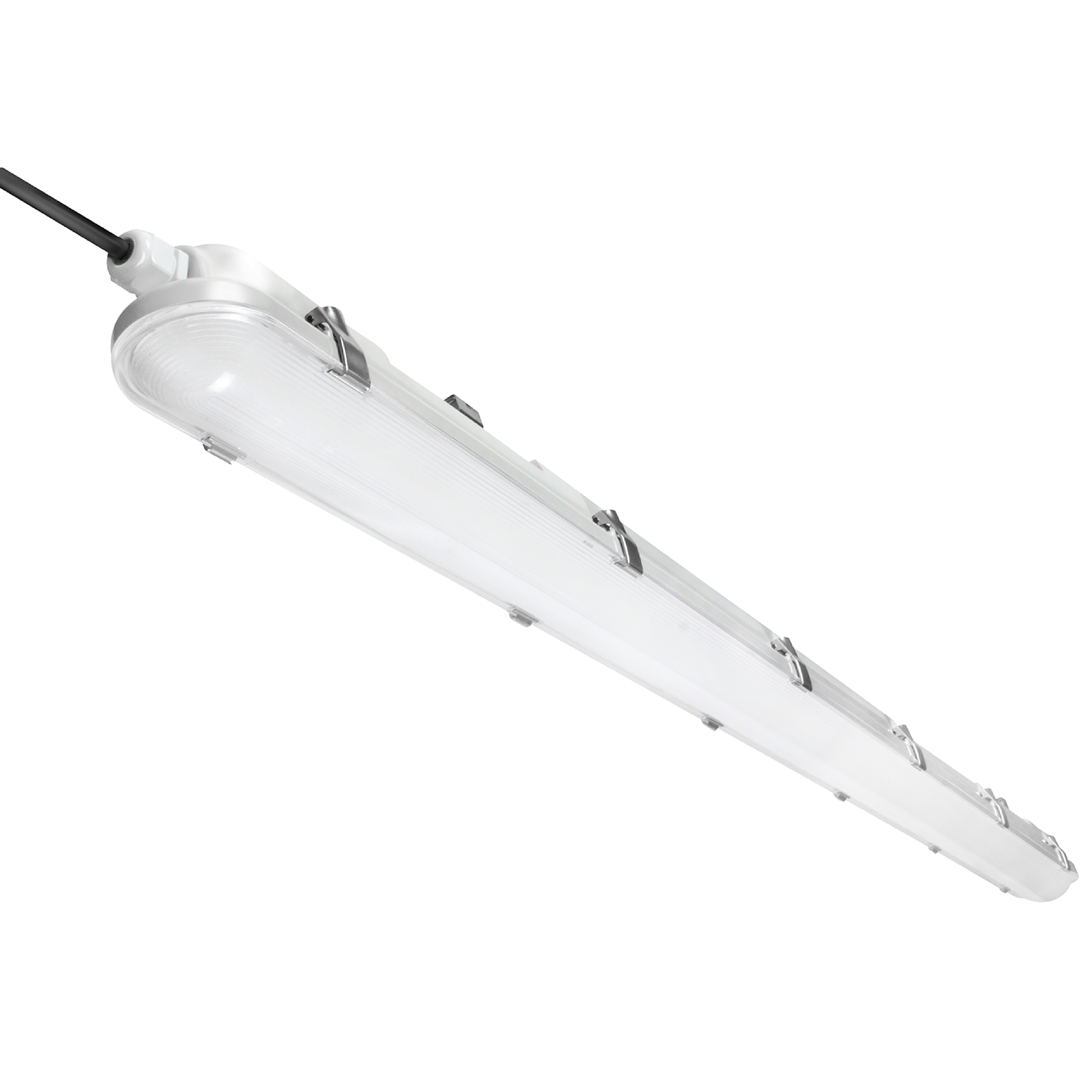

L02236 Adjustable IP65

ABS and PC materials, IP65 IK07

TECHICAL DATA

2150-3200lm
Built-in LED Driver
Dimmable
Surface Mounted Installations.
OSRAM branded LED chips,

Product is Europe Standard & CE Certificate.

IP RATED WALL WASHER

L02236

IP65

CLASS III

EYES FRIENDLY AND UNIFORM DISTRIBUTION

Code	System Power W	Output Lumen lm	Dimension mm	Cut Hole mm	Power Supply mA
L02236-18	18W	2150lm	L1000xW40xH26mm	mm	450mA
L02236-24	24W	3200lm	L1000xW40xH26mm	mm	600mA

FEATURES

Built-in LED Driver	Accessoires	Beam Angle	Color Temperature	Finishes
18W 450mA 24W 600mA

Download

Installation
