wall lamps IP65

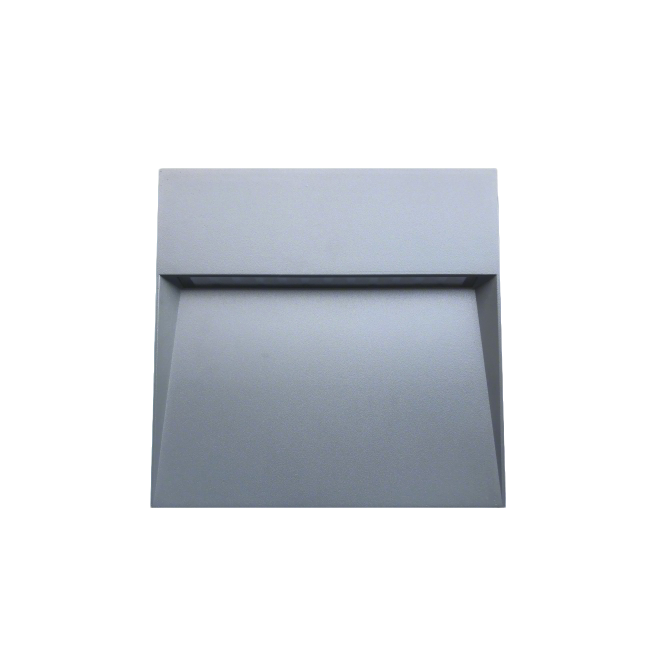

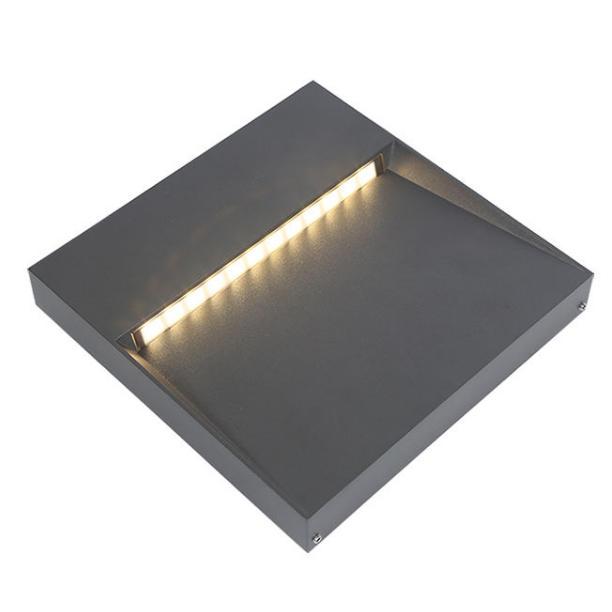

L04088 Wall lamps    IP65

Die casting aluminum and powder coating. Wall or Ceiling mounted installation.

Die casting aluminum and powder coating. Wall or Ceiling mounted installation. The standard products comes in diameter of 口124mm and 口220mm with an directed lighting effect. OSRAM branded LED CRI90+ , Remote LED Driver version. An ideal engineering lighting solution for the mid-to-high-end market. IP65 . warranty 5 years

TECHICAL DATA

  • 300-500lm
  • Remote LED Driver

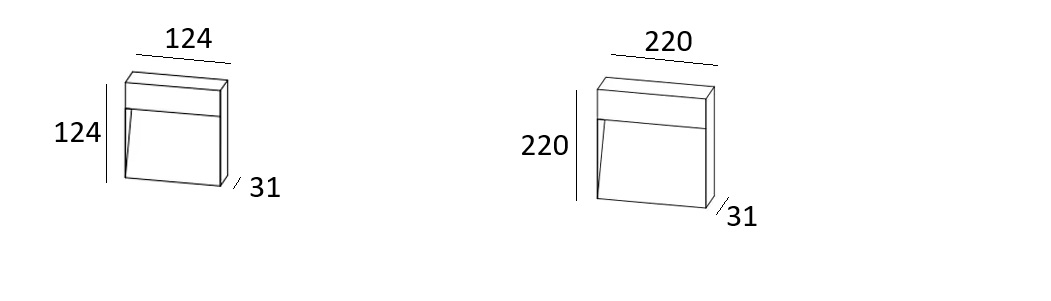

  • 口124 I 口220mm diameter
  • Flicker Free CRI90+ UGR<19
  • Dimmable
  • Wall or Ceiling Mounted Installations.
  • OSRAM branded LED chips,

Product is Europe Standard & CE Certificate.

LED WALL LAMPS

L04088

IP65

CLASS III

Wall Mounted Installation

Aluminum die-casting materials and powder coated.

Standard 口124 I 口220mm diameter with quick connector.

Eyes friendly CE certificate RoHS standard

OSRAM branded LED CRI90+

CASAMBI I Triac I 0/1-10V I DALI dimmable

Warranty 5 Years

VISUAL COMFORT AND UNIFORM DISTRIBUTION

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L04088-6 6W 300lm
124x124xH31mm
mm
 150mA
L04088-10 10W 500lm
220x220xH31mm
mm
 250mA

FEATURES

Die casting aluminum and powder coating. Wall or Ceiling mounted installation. The standard products comes in diameter of 口124mm and 口220mm with an directed lighting effect. OSRAM branded LED CRI90+ , Remote LED Driver version. An ideal engineering lighting solution for the mid-to-high-end market. IP65 . warranty 5 years

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
6W   150mA
10W   250mA
