wall lamps IP65

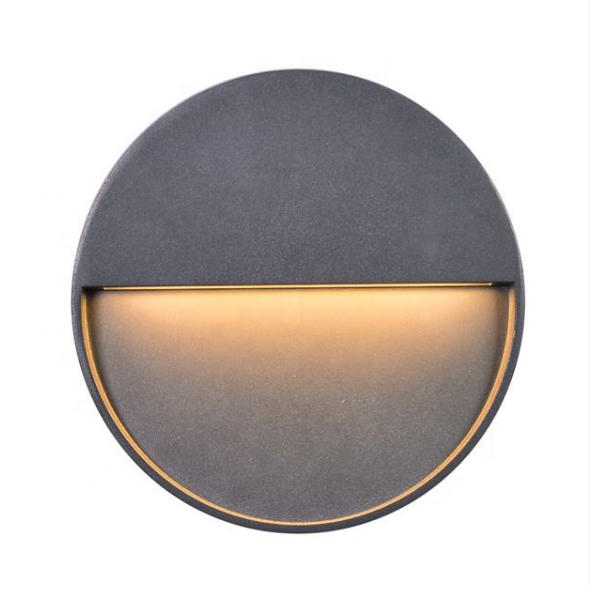

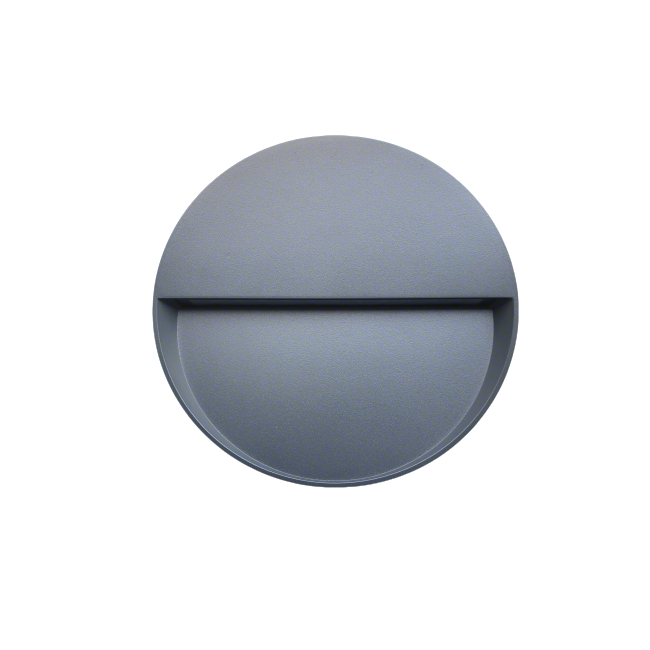

L04087 Wall lamps    IP65

Die casting aluminum and powder coating. Wall or Ceiling mounted installation.

Die casting aluminum and powder coating. Wall or Ceiling mounted installation. The standard products comes in diameter of Ø124mm and Ø220mm with an directed lighting effect. OSRAM branded LED CRI90+ , remote LED Driver version. An ideal engineering lighting solution for the mid-to-high-end market. IP65 . warranty 3 years

TECHICAL DATA

  • 350-500lm
  • Remote LED Driver

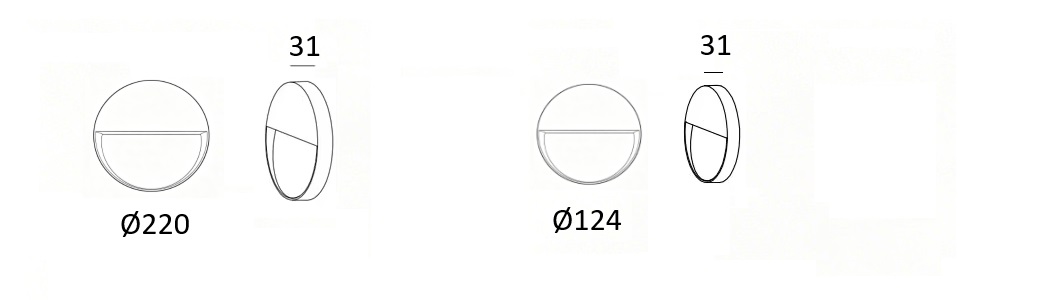

  • Ø124 I Ø220mm diameter
  • Flicker Free CRI90+ UGR<19
  • Dimmable
  • Wall or Ceiling Mounted Installations.
  • OSRAM branded LED chips,

Product is Europe Standard & CE Certificate.

LED WALL LAMPS

L04087

IP65

CLASS III

Wall Mounted Installation

Aluminum die-casting materials and powder coated.

Standard Ø124 I Ø220mm diameter with quick connector.

Eyes friendly CE certificate RoHS standard

OSRAM branded LED CRI90+

CASAMBI I Triac I 0/1-10V I DALI dimmable

Warranty 5 Years

VISUAL COMFORT AND UNIFORM DISTRIBUTION

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L04087-7 7W 350lm
124xH31mm
mm
 150mA
L04087-10 10W 500lm
220xH31mm
mm
 250mA

FEATURES

Die casting aluminum and powder coating. Wall or Ceiling mounted installation. The standard products comes in diameter of Ø124mm and Ø220mm with an directed lighting effect. OSRAM branded LED CRI90+ , remote LED Driver version. An ideal engineering lighting solution for the mid-to-high-end market. IP65 . warranty 3 years

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
7W   150mA
10W   250mA
