口125 I 口150

L06760 Spotlight    IP54

Aluminium die casting material and powder coating. Remote LED driver version. High level of visual comfort. Dimmable.

The adjustable spotlight with slim trim, high power Max.40W cutout: dia125mm. and Max.55W cutout: dia150mm. Uniform distribution . Visual comfort low glare optic with recessed light source. available for four different output beams 15/24/36/55°. Specialised optical filters honeycomb can be ordered. The decorative secondary optic available in multiple color finishing, Black I White I Chromed. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation with steel springs. Realize superior lighting space with a deep cut-off angle. The lighting fixture is 30°adjustable 355°rotation. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

TECHICAL DATA

  • 3300-4500lm
  • Remote LED Driver
  • Aluminium die-casting lighting fixture, powder coated.
  • 300-400mm cable with quick connector.
  • DALI I Triac I 0/1-10V I DTW dimming
  • Ceiling, wall recessed.
  • COB LED CRI90 3SDCM

Product is Europe Standard & CE Certificate.

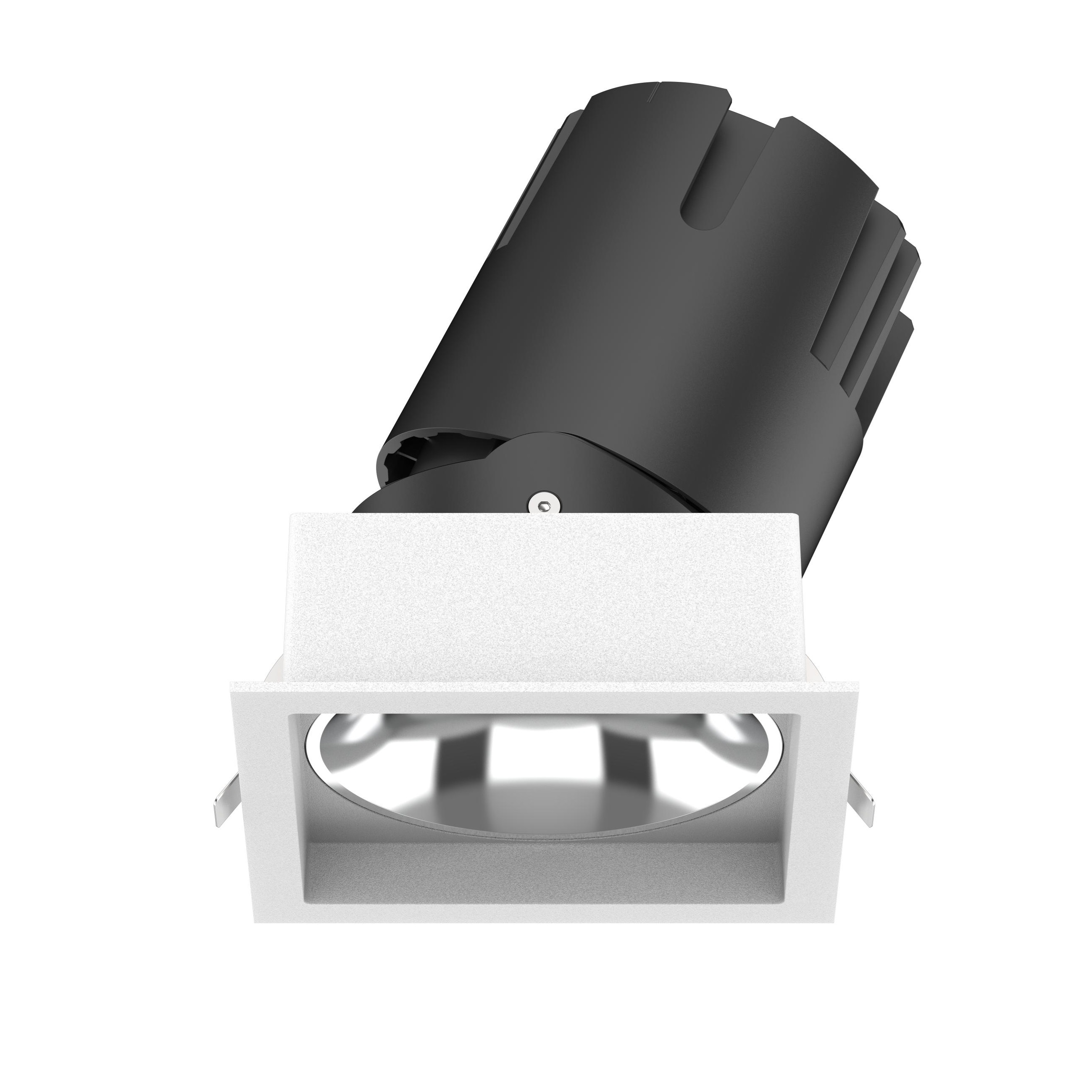

INTERIOR LED RECESSED DOWN SPOTLIGHT

L06760

IP54

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die casting material and powder coating

Ceiling recessed, Ceiling thickness 3-25mm

400-600mm cable with quick connector

COB LED 3SDCM CRI90

Flicker Free, Remote LED Driver version.

Deeply recessed light source. High level of visual comfort

0/1-10V I Triac I DALI Tunable white dimming

HIGH LEVEL OF VISUAL COMFORT AND UNIFORM DISTRIBUTION

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L06760-45 40W 3300lm
144xH171mm
125x125mm		 1000mA
L06760-60 55W 4500lm
169xH191mm
150x150mm		 1300mA

FEATURES

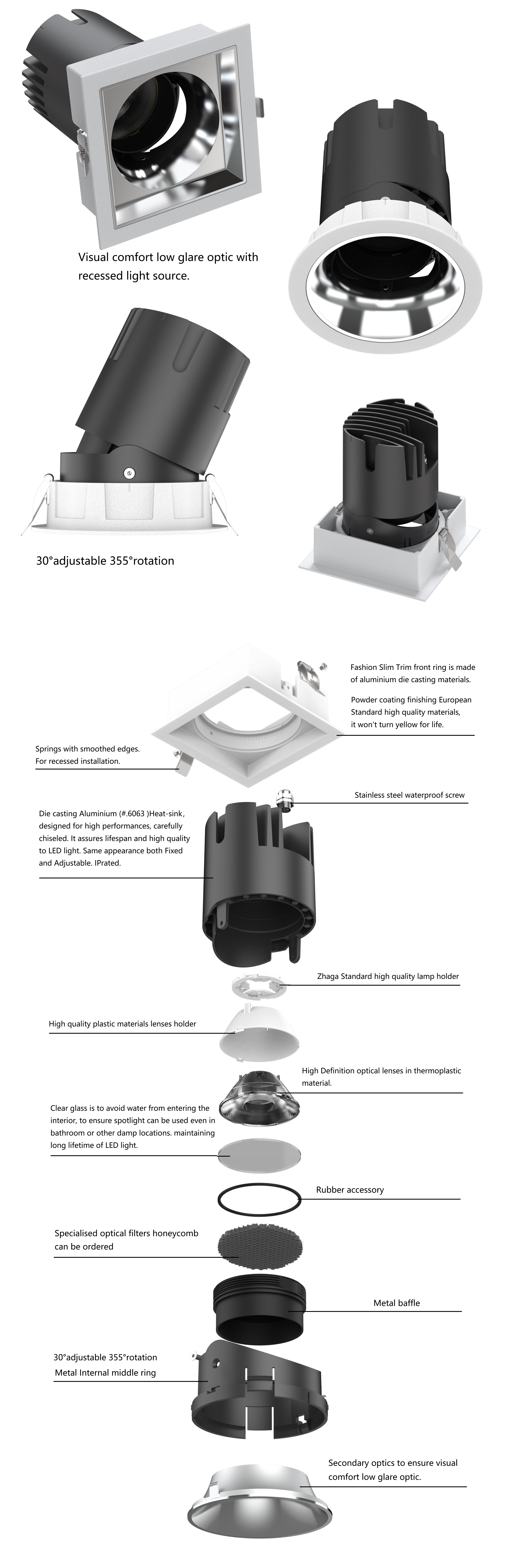

The adjustable spotlight with slim trim, high power Max.40W cutout: dia125mm. and Max.55W cutout: dia150mm. Uniform distribution . Visual comfort low glare optic with recessed light source. available for four different output beams 15/24/36/55°. Specialised optical filters honeycomb can be ordered. The decorative secondary optic available in multiple color finishing, Black I White I Chromed. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation with steel springs. Realize superior lighting space with a deep cut-off angle. The lighting fixture is 30°adjustable 355°rotation. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product. Famous brand COB LED CRI90 3SDCM. The spotlight is IP RATED, it can be used in bathroom or other damp locations.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
40W   1000mA
55W   1300mA

COB LED Chips I 3SDCM I CRI90 I Visual comfort I Dimmable I Uniform distribution I Flicker-Free I Long lifetime I Simplify and reinvent the classiceasy installation One housing, multiple options, with different light distributions for a wide varirty of applications, The spot lights offer homogeneous and uniform light distribution. soft light. easy installations. deeply recessed light source. High Definition optical lenses in thermoplastic material. Specialised optics and optical filters can be ordered. 5years warranty. Flicker-Free. Dimmable. Customized color finishing, power changes are possible depending on the request and the quantity.
