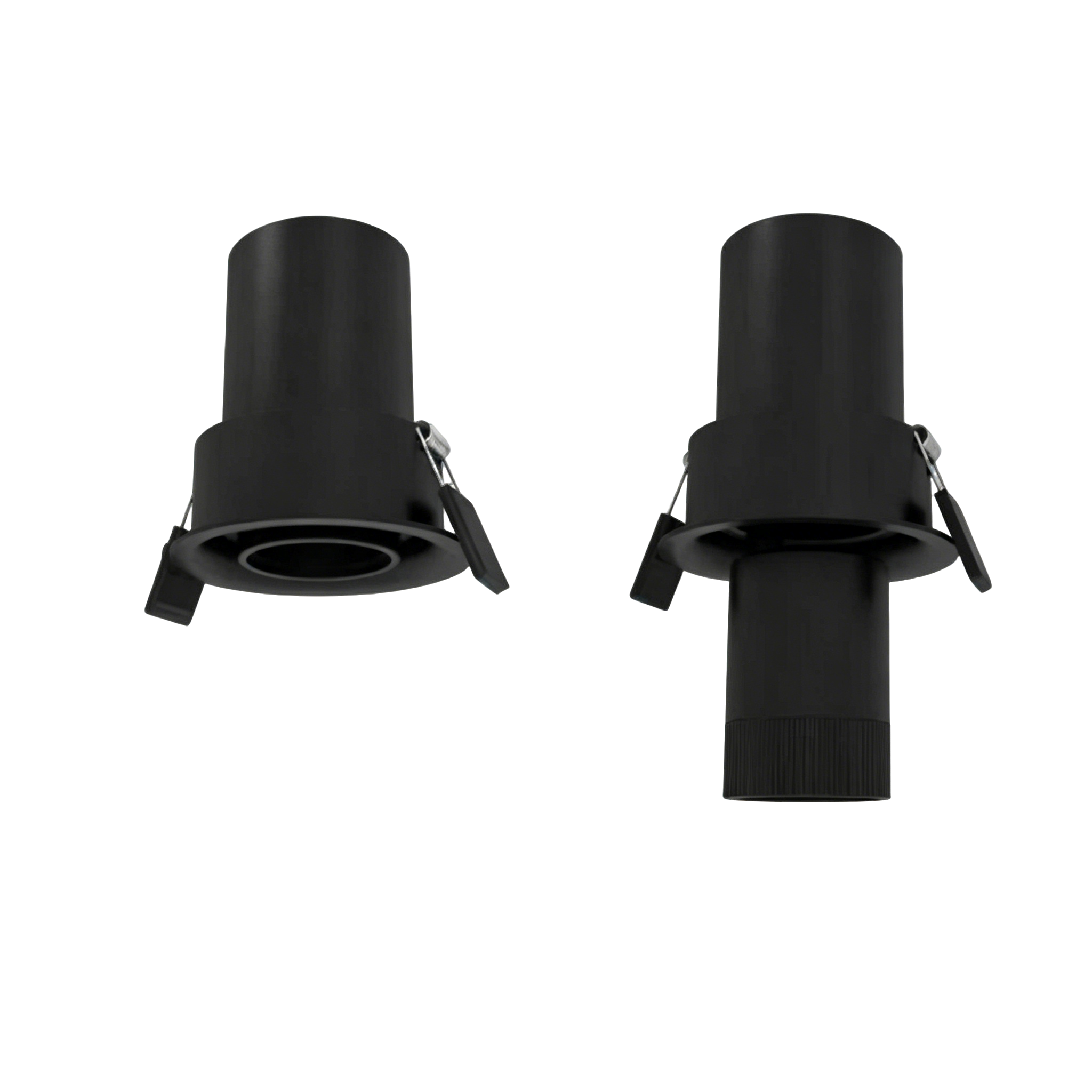

Ø75 I pull-out zoomable

L02093 Spotlight    IP20

Aluminum material and powder coating. Remote LED driver version. 90°adjustable 355°rotation, pull-out. zoomable 8°-42° . With 5× focal length, the beam angle of the spotlight can be narrowed sharply.

Double adjustability tube pull-out spotlight and zoomable , uniform distribution . Visual comfort low glare optic , recessed light source. available for different output beams 8-42°. The decorative secondary optic available in multiple color finishing, Black I White . The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple and flexible installation slimm trim with spring, The spotlight is modular design. They comprise a LED light module and mounting frame. A small downlight characterized by innovative and surprising solutions. The rotation and the right angled inclination make this product to be highly flexible and easy to handle.It is ideal for lighting architectural and artistic details up. The body can either be completely hidden into the frame or fully visible to aim it wherever you want. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more.

TECHICAL DATA

  • 450lm
  • Remote LED Driver
  • 90°adjustable 355°rotation, pull-out
  • 300-400mm cable with quick connector.
  • DALI I Triac I 0/1-10V I DTW dimming
  • Ceiling Recessed I Slim Trim
  • COB LED CRI90 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L02093

IP20

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die casting material and powder coating

Ceiling recessed I Slim Trim

400-600mm cable with quick connector

COB LED I 2SDCM I CRI90 I UGR<16

Flicker Free I Remote LED Driver version.

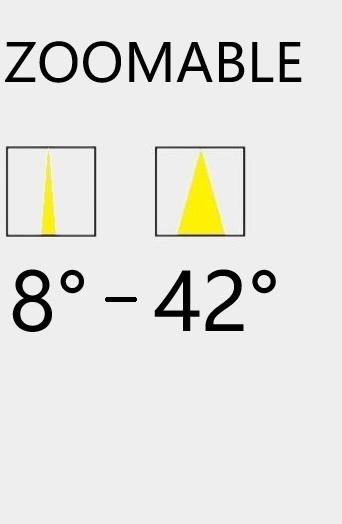

90°adjustable 355°rotation I pull-out I 8-42°

0/1-10V I Triac I DALI Tunable white dimming

UNIFORM DISTRIBUTION

Code System Power
W
Output Lumen
lm

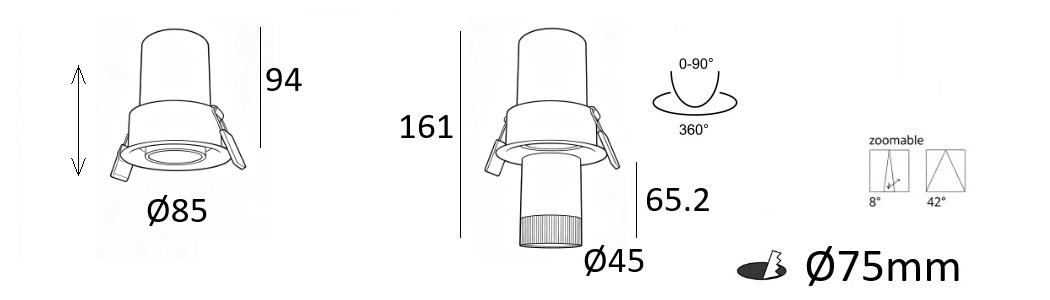

Dimension
mm
Cut Hole
mm
Power Supply
mA
L02093-7 7W 450lm
85xH94mm
75mm
150mA

FEATURES

Double adjustability tube pull-out spotlight and zoomable , uniform distribution . Visual comfort low glare optic , recessed light source. available for different output beams 8-42°. The decorative secondary optic available in multiple color finishing, Black I White . The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple and flexible installation slimm trim with spring, The spotlight is modular design. They comprise a LED light module and mounting frame. A small downlight characterized by innovative and surprising solutions. The rotation and the right angled inclination make this product to be highly flexible and easy to handle.It is ideal for lighting architectural and artistic details up. The body can either be completely hidden into the frame or fully visible to aim it wherever you want. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
7W   150mA
