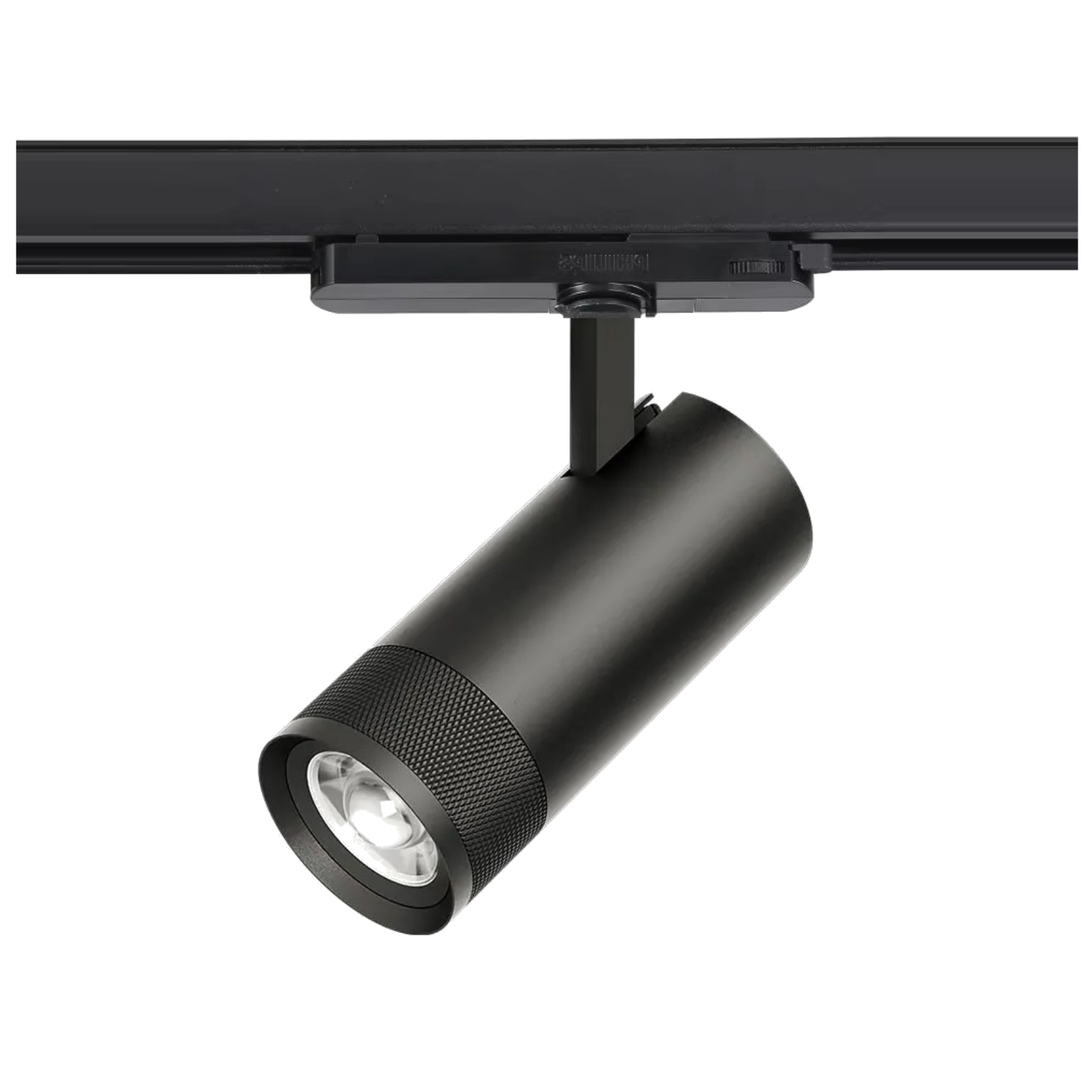

L03273 Spotlight IP20

Aluminium material and powder coating. Zoomable 15°-58° I Compatible with GLOBAL / POWERGEAR 3-phase track system.

Aluminium extrusion material and powder coating. -In-track LED Driver Trackspotlight. DALI dimmable version Beam angle zooming version, Double adjustability 90°adjustable 355°rotation, ZOOMLENS 15°-58° An ideal accent lighting in residential or commercial. -High level of visual comfort, the high performances and flexibility for every project. High Definition optical lenses in thermoplastic material. -Uniform distribution. White OR Black color finishing as standard. -- Customized power changes are possible depending on the request and the quantity. -On the request it can be offered in any RAL colour, matching the specific look and feel of your design. (DALI 1-phase 4 wires trackspotlight)

TECHICAL DATA

750-1800lm
In-track LED Driver DALI dimm
Aluminium lighting fixture, powder coated.
Flicker Free CRI90+ UGR<16
zoomable 15°-58°
Compatible with GLOBAL / POWERGEAR 3-phase track system.
Famous brand LED chips CRI90+ 3steps Dimmable

Product is Europe Standard & CE Certificate.

INTERIOR LED TRACK SPOTLIGHT

L03273

IP20

CLASS III

Compatible with GLOBAL / POWERGEAR 3-phase track system.

ECO Energy Saving

Aluminium material lighting fixture, powder coated.

Eyes friendly CE certificate RoHS standard

CRI90+ 3SDCM COB LED

DALI dimmable

Flicker Free I zoomable 15°-58°

Warranty 5 Years

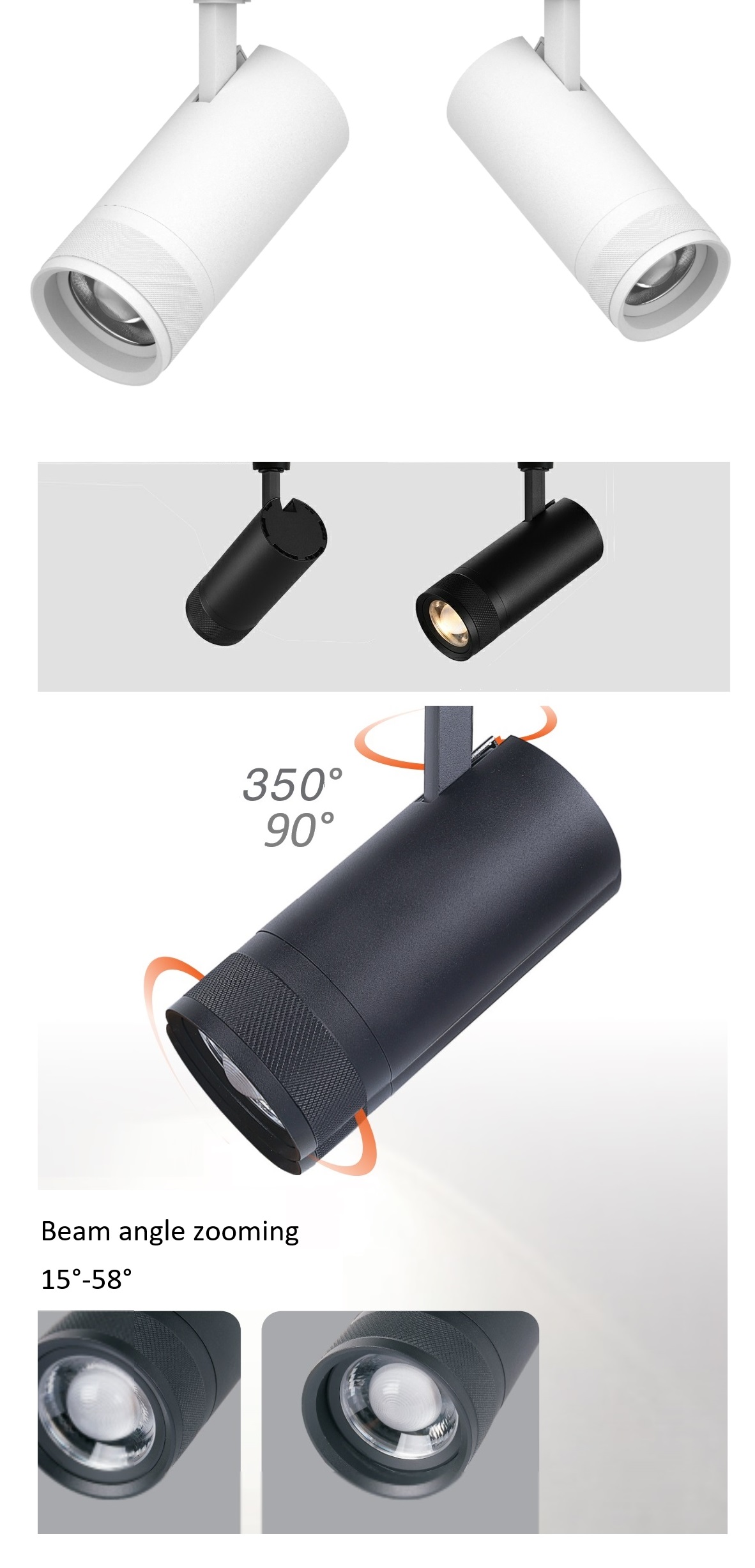

BEAM ANGLE ZOOMING VERSION 15°-58°

Code	System Power W	Output Lumen lm	Dimension mm	Cut Hole mm	Power Supply mA

Code

System Power
W

Output Lumen
lm

Dimension
mm

Cut Hole
mm

Power Supply
mA

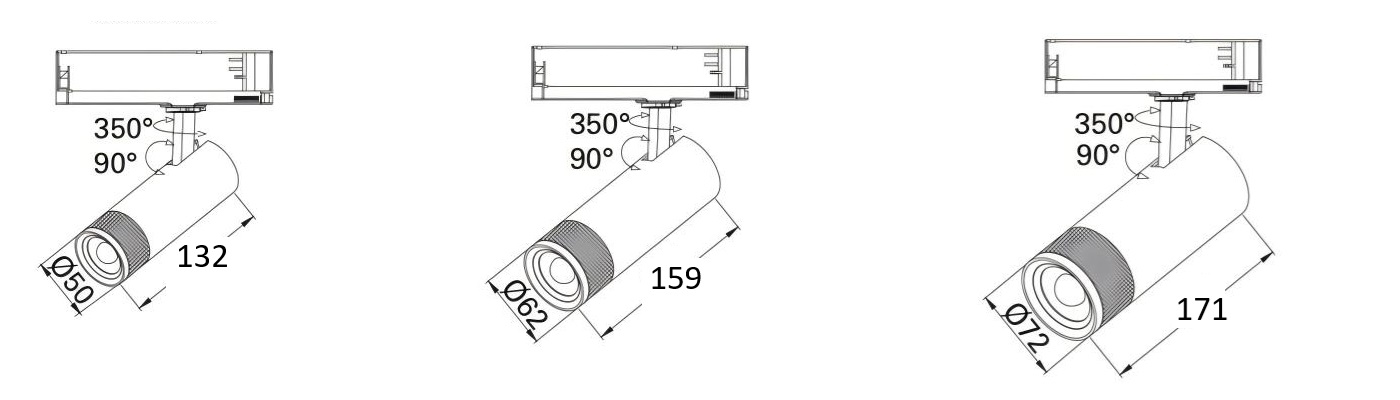

L03273-10	10W	750lm	50xH132mm	mm	250mA


L03273-15	15W	1100lm	62xH159mm	mm	350mA


L03273-25	25W	1800lm	72xH171mm	mm	650mA

FEATURES

Aluminium extrusion material and powder coating. -In-track LED Driver Trackspotlight. DALI Dimmable version Beam angle zooming version, Double adjustability 90°adjustable 355°rotation, ZOOMLENS 15°-58° An ideal accent lighting in residential or commercial. -High level of visual comfort, the high performances and flexibility for every project. High Definition optical lenses in thermoplastic material. -Uniform distribution. White OR Black color finishing as standard. -- Customized power changes are possible depending on the request and the quantity. -On the request it can be offered in any RAL colour, matching the specific look and feel of your design. Compatible with GLOBAL / POWERGEAR 3-phase track system.

In-track LED Driver DALI dimm	Accessoires	Beam Angle	Color Temperature	Finishes
10W 250mA 15W 350mA 25W 650mA

Data Sheet
