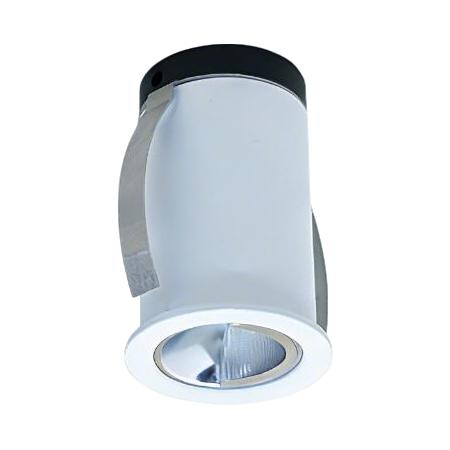

L03700 Wall washer    IP20

Aluminium material and powder coating. Remote LED driver version. Polarized light distribution.

Aluminium material and powder coating. Remote LED driver version. The beauty of lighting fixtures is the consequence of an honest. They are beautiful and pure, just like the technology which is inside them. The quality of the mechanical workings can be recognised even by touching them. Light spot uniform transition, no bright and dark stripes wall washer spotlight. The fixed wall washer spotlight Specially designed free-form reflective cup with anti-glare cover, accurate light path,active anti-glare,with higher light efficiency. Wall washing with no dark area. The splicing of multiple lamps has a better wallwashing effect. High temperature resistant material,reflective cup temperature 140℃. ·Multiple forms are available,which perfectly match various application scenarios. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation ceiling recessed with spring, Famous brand LED chips CRI90+ 2steps. Smart lighting, achieved CASAMBI I DALI 2. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

TECHICAL DATA

  • 250-600lm
  • Remote LED Driver
  • Aluminium lighting fixture and powder coating
  • Flicker Free CRI90+ UGR<19
  • DALI 2 I CASAMBI
  • Ceiling Recessed
  • Bridgelux branded LED chips

Product is Europe Standard & CE Certificate.

LED DOWN LIGHT WALL WASHING

L03700

IP20

CLASS III

Wall washing Lighting

ECO Energy Saving

Flicker Free

Eyes friendly CE certificate RoHS standard

CRI90+ Bridgelux branded SMD LED

Europe Standard & CE Certificate.

400-600mm cable with quick connector

DALI 2 I CASAMBI I 0-10V

A single lighting solution with upper wall washer

Code System Power
W
Output Lumen
lm

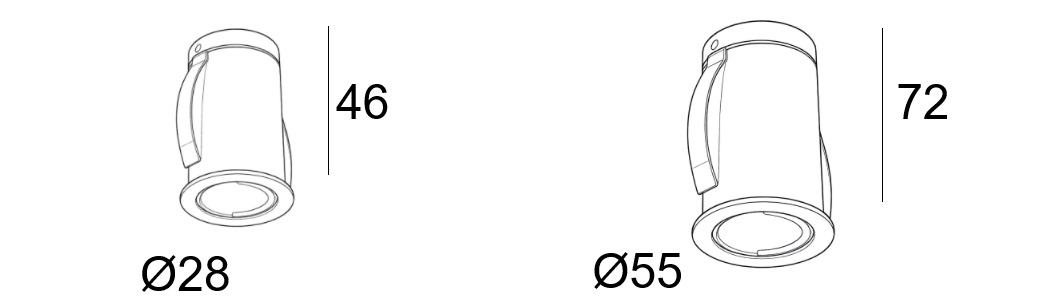

Dimension
mm
Cut Hole
mm
Power Supply
mA
L03700-5 5W 250lm
28xH46mm
26mm
150mA
L03700-12 12W 600lm
55xH72mm
50mm
300mA

FEATURES

Aluminium material and powder coating. Remote LED driver version. The beauty of lighting fixtures is the consequence of an honest. They are beautiful and pure, just like the technology which is inside them. The quality of the mechanical workings can be recognised even by touching them. Light spot uniform transition, no bright and dark stripes wall washer spotlight. The fixed wall washer spotlight Specially designed free-form reflective cup with anti-glare cover, accurate light path,active anti-glare,with higher light efficiency. Wall washing with no dark area. The splicing of multiple lamps has a better wallwashing effect. High temperature resistant material,reflective cup temperature 140℃. ·Multiple forms are available,which perfectly match various application scenarios. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation ceiling recessed with spring, Famous brand LED chips CRI90+ 2steps. Smart lighting, achieved CASAMBI I DALI 2. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
5W   150mA
12W   300mA
