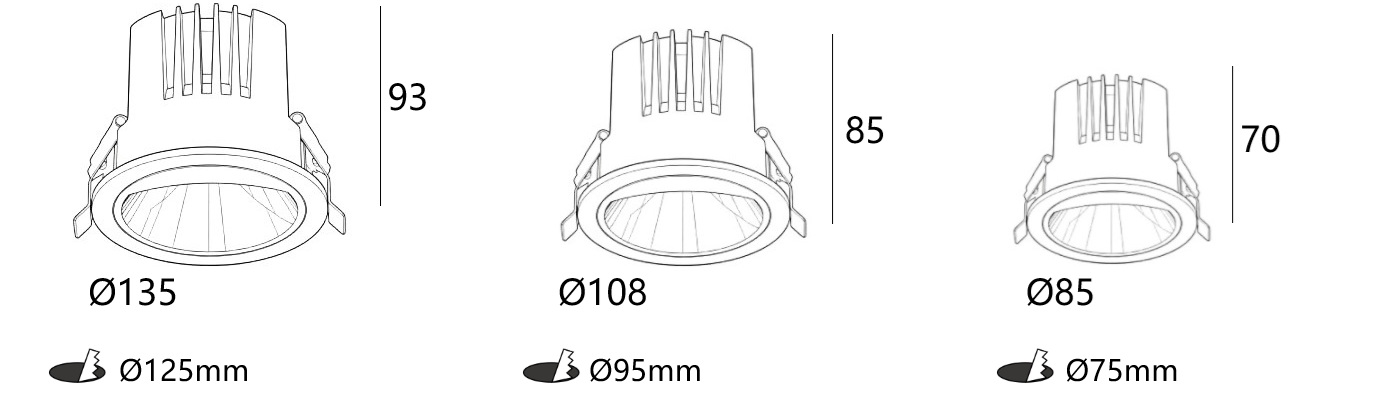

Ø75 I Ø95 I Ø125

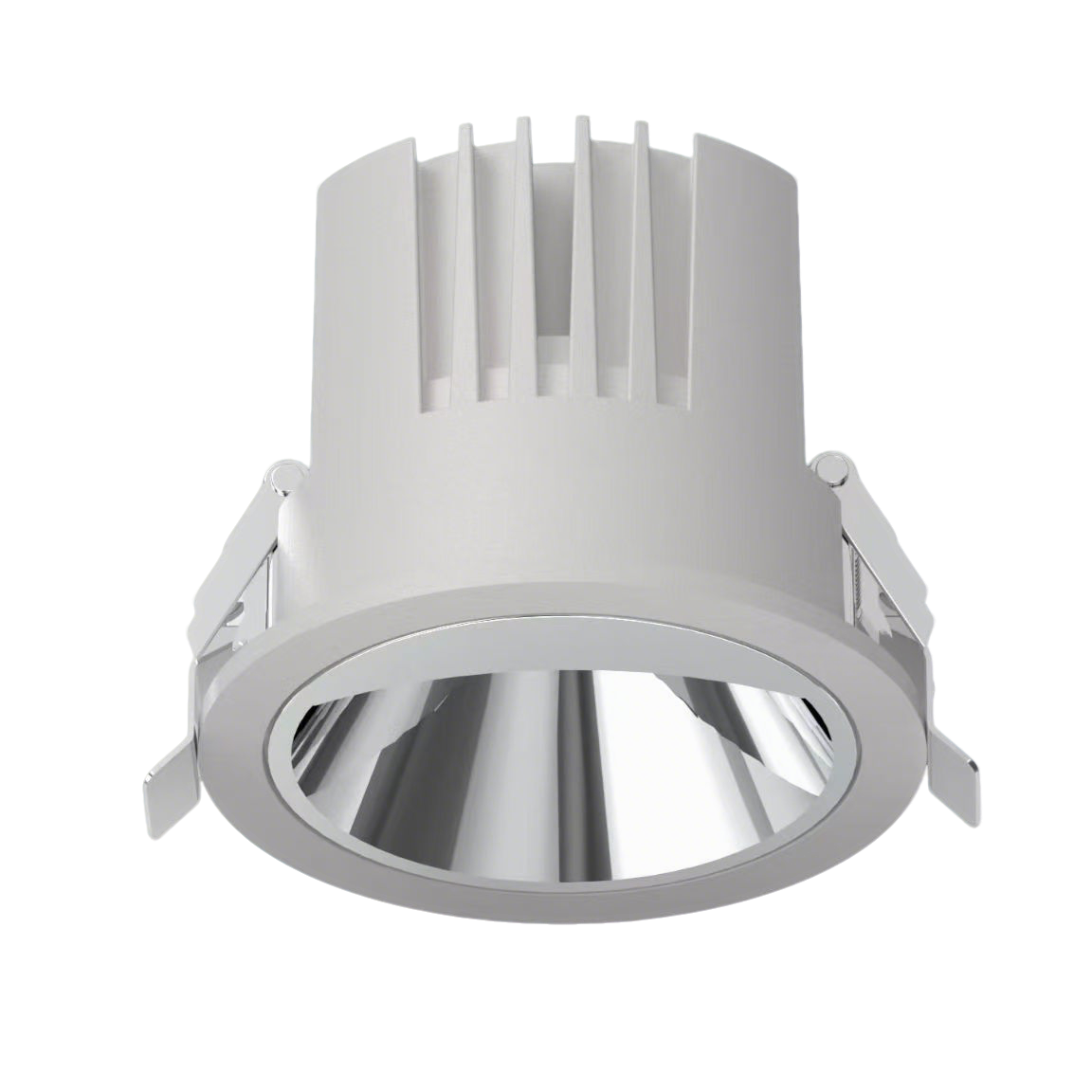

L02024 Wall washer    IP20

Aluminum die casting material and powder coating. Remote LED driver version. Polarized light distribution.

Aluminum die casting material and powder coating. Remote LED driver version. Light spot uniform transition, no bright and dark stripes wall washer spotlight. The fixed wall washer spotlight Specially designed free-form reflective cup with anti-glare cover, accurate light path,active anti-glare,with higher light efficiency. Wall washing with no dark area. The splicing of multiple lamps has a better wallwashing effect. High temperature resistant material,reflective cup temperature 140℃. ·Multiple forms are available,which perfectly match various application scenarios. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation ceiling recessed with spring, Famous brand LED chips CRI90+ 2steps. Smart lighting, achieved CASAMBI I DALI 2. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

TECHICAL DATA

  • 850-3000lm
  • Remote LED Driver
  • Aluminum die casting lighting fixture and powder coating
  • Flicker Free CRI90+ UGR<19
  • DALI 2 I CASAMBI
  • Ceiling Recessed
  • CREE branded LED chips

Product is Europe Standard & CE Certificate.

LED DOWN LIGHT WALL WASHING

L02024

IP20

CLASS III

Wall washing Lighting

ECO Energy Saving

Flicker Free

Eyes friendly CE certificate RoHS standard

CRI90+ CREE branded COB LED

Europe Standard & CE Certificate.

400-600mm cable with quick connector

DALI 2 I CASAMBI I 0-10V

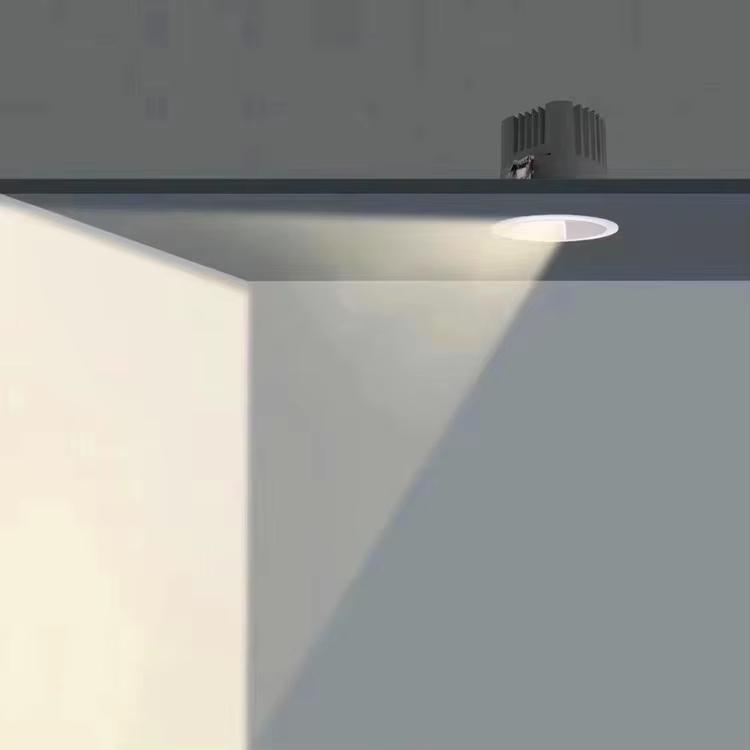

A single lighting solution with upper wall washer

Code System Power
W
Output Lumen
lm
Dimension
mm
Cut Hole
mm
Power Supply
mA
L02024-10 10W 850lm
85xH70mm
75mm
250mA
L02024-20 20W 1700lm
108xH85mm
95mm
500mA
L02024-35 35W 3000lm
135xH93mm
125mm
750mA

FEATURES

Aluminum die casting material and powder coating. Remote LED driver version. Light spot uniform transition, no bright and dark stripes wall washer spotlight. The fixed wall washer spotlight Specially designed free-form reflective cup with anti-glare cover, accurate light path,active anti-glare,with higher light efficiency. Wall washing with no dark area. The splicing of multiple lamps has a better wallwashing effect. High temperature resistant material,reflective cup temperature 140℃. ·Multiple forms are available,which perfectly match various application scenarios. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation ceiling recessed with spring, Famous brand LED chips CRI90+ 2steps. Smart lighting, achieved CASAMBI I DALI 2. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
10W   250mA
20W   500mA
35W   750mA
