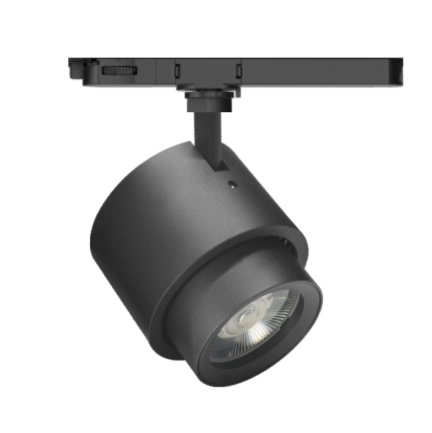

IN-TRACK DRIVER DALI

L03288 Spotlight    IP44

Aluminium cold forging material and powder coating. - Excellent cooling system. Integrated DALI dimmable I Compatible with GLOBAL / POWERGEAR 3-phase track system.

Aluminium lighting fixture, cold forging process and powder coated, Integrated cooling system to ensure the spotlight long lifetime. Luminaires are powered by a high quality Integrated DALI dimmable Driver and adaptor. An ideal solution for accent lighting. the high performances and flexibility for every project. High Definition optical lenses in thermoplastic material. -Uniform distribution. It allows 360°rotation about the vertical axis and 90° tilting relative to the horizontal plane make the spotlight highly flexible and easy to handle, the light is emitted exactly where you want it. Specialized optical filters can be ordered. The light spots were natural transition, clear and soft. 3SDCM to ensure color temperature consistency for the quality lighting. Excellent colour rendering with CRI90+, it's perfect for a wide range of food, flowers, clothes, and in general for other display lighting applications. The standard product comes in RAL 9005 Black color finishing I RAL 9016 White color finishing. On the request it can be offered in any RAL colour, matching the specific look and feel of your design. Compatible with GLOBAL / POWERGEAR 3-phase track system.

TECHICAL DATA

  • 1500-3000lm
  • Integrated LED Driver
  • Aluminium Integrated lighting fixture, powder coated.
  • Flicker Free CRI90+ UGR<16
  • DALI IN-TRACK DRIVER LED TRACKSPOTLIGHT
  • Compatible with GLOBAL / POWERGEAR 3-phase track system.
  • Famous brand LED chips CRI90+ 3steps

Product is Europe Standard & CE Certificate.

INTERIOR LED TRACK SPOTLIGHT

L03288

IP44

CLASS III

Compatible with GLOBAL / POWERGEAR 3-phase track system.

ECO Energy Saving

Flicker Free I IN-TRACK DRIVER

Eyes friendly CE certificate RoHS standard

CRI90 3SDCM Famous brand COB LED

DALI dimmable

90°adjustable 355° rotation

Warranty 5 Years

An ideal solution for accent lighting

Code System Power
W
Output Lumen
lm

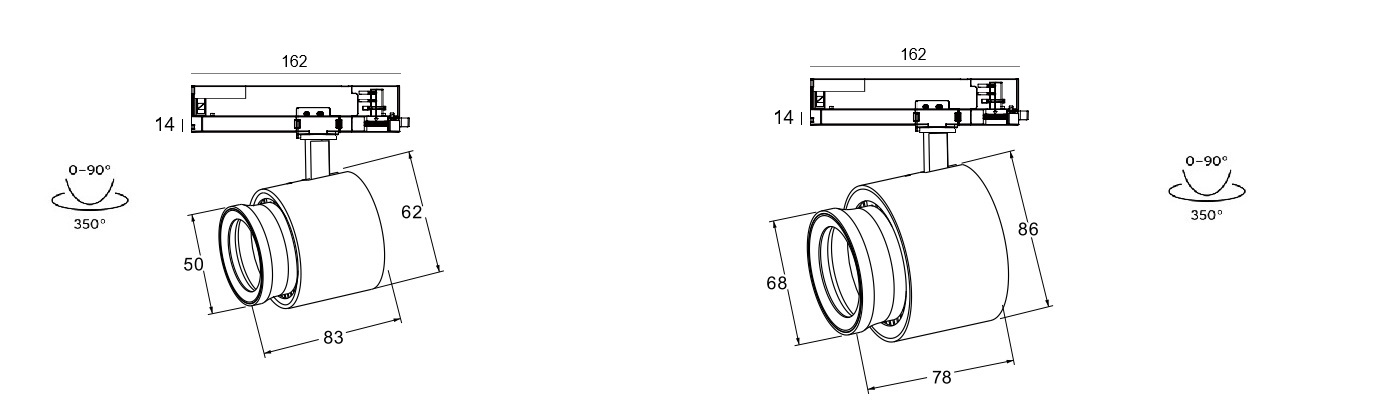

Dimension
mm
Cut Hole
mm
Power Supply
mA
L03288-15 15W 1500lm
62xH83mm
mm
350mA
L03288-30 30W 3000lm
86xH78mm
mm
750mA

FEATURES

Aluminium lighting fixture, cold forging process and powder coated, Integrated cooling system to ensure the spotlight long lifetime. Luminaires are powered by a high quality Integrated DALI dimmable Driver and adaptor. An ideal solution for accent lighting. the high performances and flexibility for every project. High Definition optical lenses in thermoplastic material. -Uniform distribution. It allows 360°rotation about the vertical axis and 90° tilting relative to the horizontal plane make the spotlight highly flexible and easy to handle, the light is emitted exactly where you want it. Specialized optical filters can be ordered. The light spots were natural transition, clear and soft. 3SDCM to ensure color temperature consistency for the quality lighting. Excellent colour rendering with CRI90+, it's perfect for a wide range of food, flowers, clothes, and in general for other display lighting applications. The standard product comes in RAL 9005 Black color finishing I RAL 9016 White color finishing. On the request it can be offered in any RAL colour, matching the specific look and feel of your design. Compatible with GLOBAL / POWERGEAR 3-phase track system.

Integrated LED Driver Accessoires Beam Angle Color Temperature Finishes
15W   350mA
30W   750mA
