on/off IN-TRACK DRIVER

L03287 Spotlight    IP44

Aluminium cold forging material and powder coating. - Excellent cooling system. Integrated ON/OFF Driver and adaptor

European standard 3-phase 4 wires trackspotlight, IN-TRACK DRIVER , Aluminium cold forging material and powder coating., Integrated cooling system to ensure the spotlight long lifetime. Luminaires are powered by a Integrated high quality on/off Driver and adaptor. An ideal solution for accent lighting. the high performances and flexibility for every project. High Definition optical lenses. -Uniform distribution. It allows 360°rotation about the vertical axis and 90° tilting relative to the horizontal plane make the spotlight highly flexible and easy to handle, the light is emitted exactly where you want it. Specialized optical filters can be ordered. The light spots were natural transition, clear and soft. CREE COB LED 3SDCM to ensure color temperature consistency for the quality lighting. Excellent colour rendering with CRI90+, it's perfect for a wide range of food, flowers, clothes, and in general for other display lighting applications. The standard product comes in RAL 9005 Black color finishing I RAL 9016 White color finishing. On the request it can be offered in any RAL colour, matching the specific look and feel of your design.

TECHICAL DATA

  • 2000-3500lm
  • IN-TRACK DRIVER LED TRACKSPOTLIGHT
  • Aluminium cold forging material and powder coating.
  • Integrated cooling system to ensure the spotlight long lifetime.
  • Double adjustability 90°adjustable 355°rotation,
  • European standard 3-phase 4 wires track rails
  • CREE branded COB LED Chips I CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.

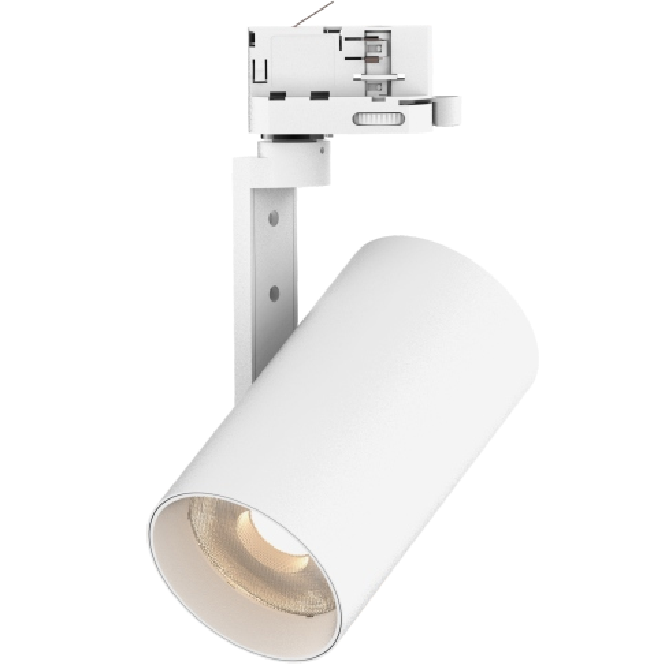

IN-TRACK DRIVER LED TRACKSPOTLIGHT

L03287

IP44

CLASS III

European standard 3-phase 4 wires track rails

ECO Energy Saving. I CE certificate I RoHS standard

Aluminium die-casting and powder coating housing.

An ideal solution for accent lighting

CREE branded COB LED Chips CRI90+ 3SDCM

IN-TRACK LED Driver and Adaptor

Double adjustability 90°adjustable 355°rotation

Warranty 5Years

EXCELLENT COOLING SYSTEM AND UNIFORM DISTRIBUTION

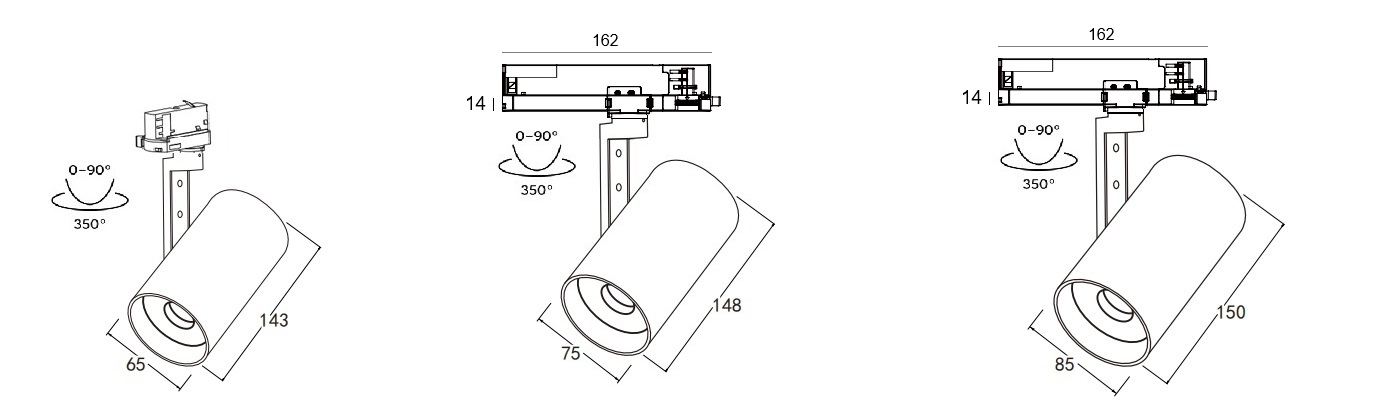

Code System Power
W
Output Lumen
lm
Dimension
mm
Cut Hole
mm
Power Supply
mA
L03287-20 20W 2000lm
65x143mm
mm
500mA
L03287-30 30W 3000lm
75x148mm
mm
700mA
L03287-35 35W 3500lm
85x150mm
mm
850mA

FEATURES

European standard 3-phase 4 wires trackspotlight, IN-TRACK DRIVER , Aluminium cold forging material and powder coating., Integrated cooling system to ensure the spotlight long lifetime. Luminaires are powered by a Integrated high quality on/off Driver and adaptor. An ideal solution for accent lighting. the high performances and flexibility for every project. High Definition optical lenses. -Uniform distribution. It allows 360°rotation about the vertical axis and 90° tilting relative to the horizontal plane make the spotlight highly flexible and easy to handle, the light is emitted exactly where you want it. Specialized optical filters can be ordered. The light spots were natural transition, clear and soft. CREE COB LED 3SDCM to ensure color temperature consistency for the quality lighting. Excellent colour rendering with CRI90+, it's perfect for a wide range of food, flowers, clothes, and in general for other display lighting applications. The standard product comes in RAL 9005 Black color finishing I RAL 9016 White color finishing. On the request it can be offered in any RAL colour, matching the specific look and feel of your design.

IN-TRACK DRIVER LED TRACKSPOTLIGHT Accessoires Beam Angle Color Temperature Finishes
20W   500mA
30W   700mA
35W   850mA
