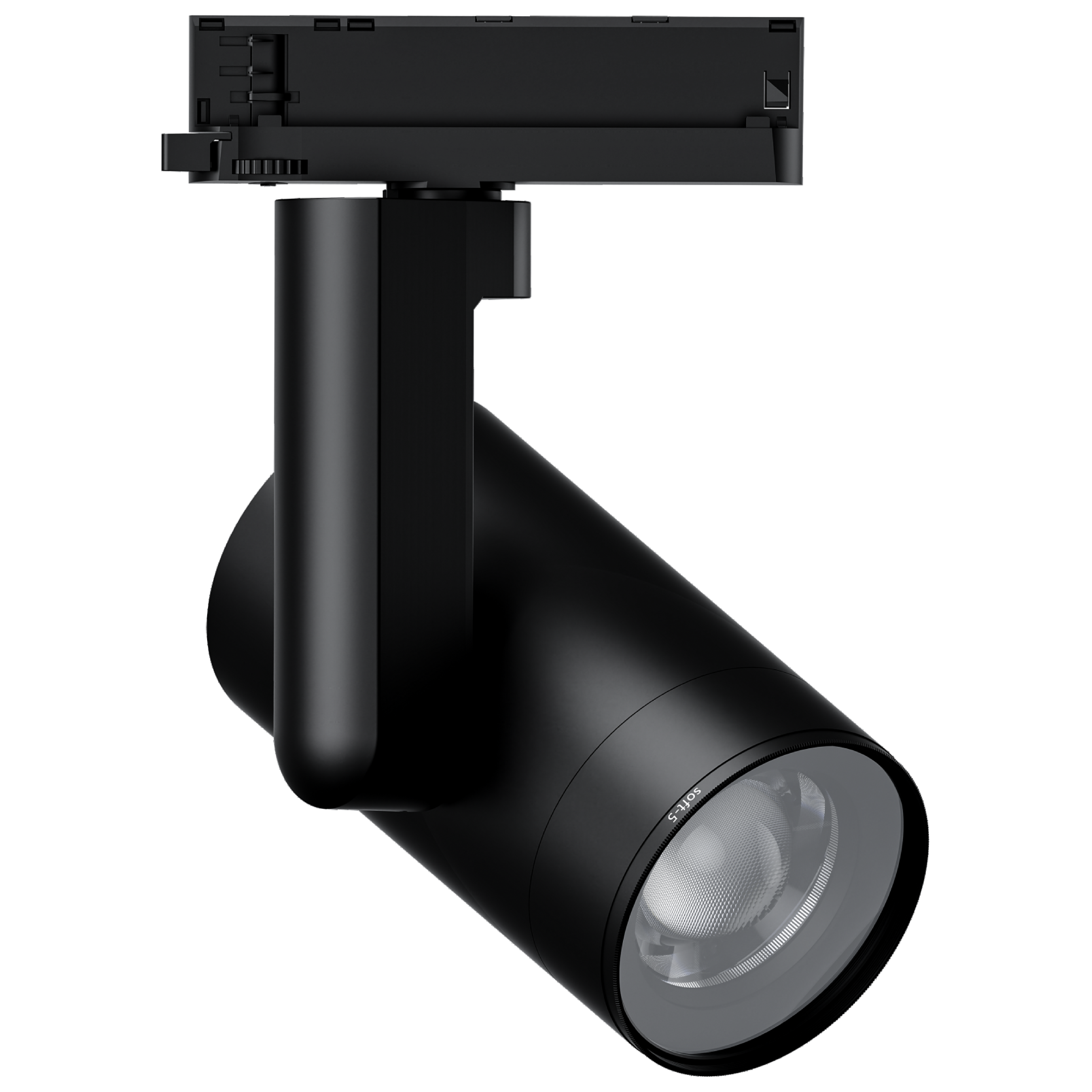

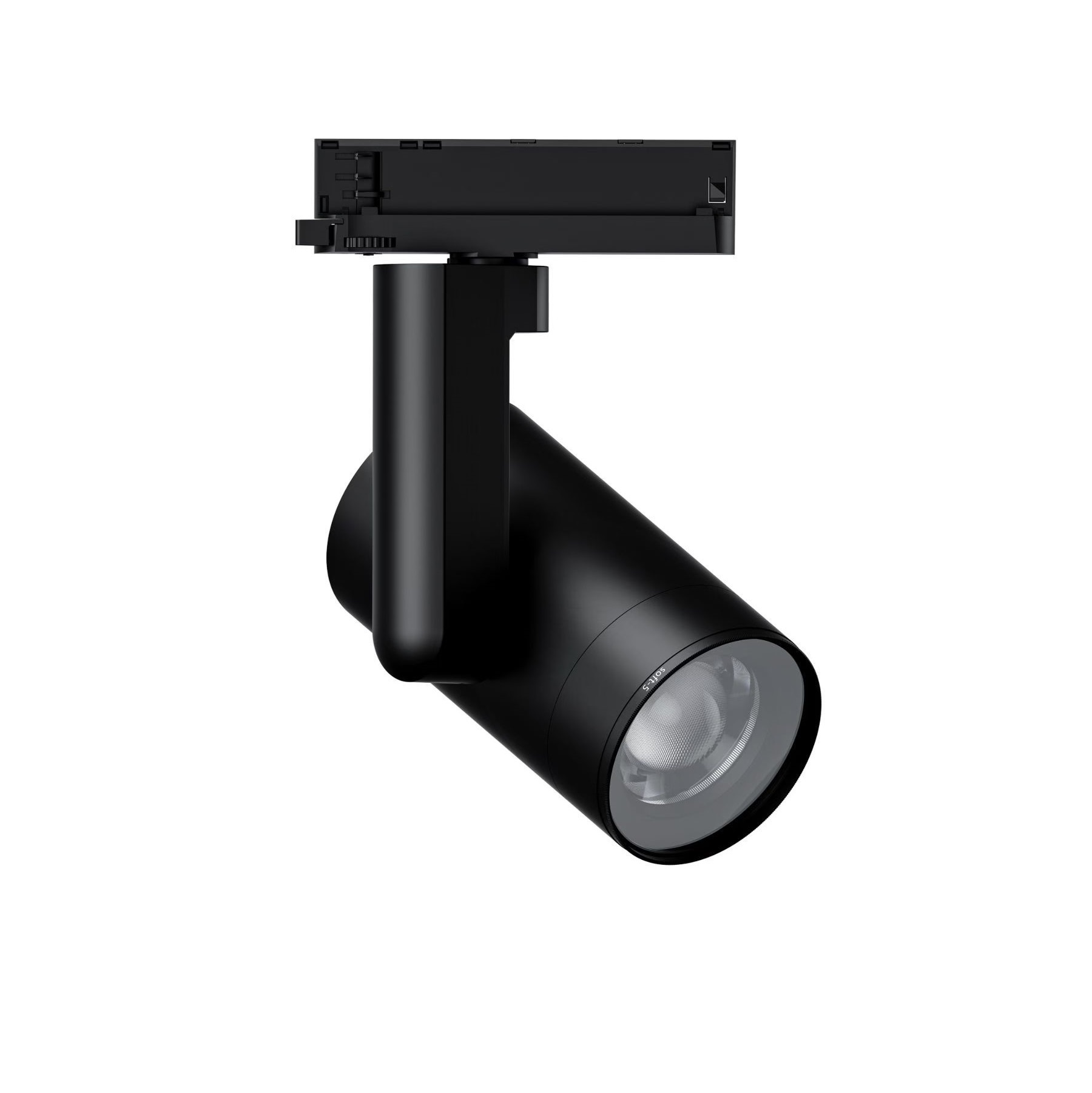

L09123 Spotlight    IP44

European standard 3-phase 4 wires trackspotlight. Compatible with GLOBAL / POWERGEAR 3-phase track system.

Aluminium cold forging material and powder coating. Integrated cooling system to ensure the spotlight long lifetime. Luminaires are powered by a 3-phase adaptor . An ideal solution for accent lighting. the high performances and flexibility for every project. This electric focusing track light is powerful, featuring 325° horizontal (Pan) rotation, 260° vertical (Tilt) rotation, 10°–50° electric zoom, 0%–100% brightness adjustment, and 2700K–6500K color temperature adjustment. CRI97, It is also compatible with a wide range of optical accessories, including diffusers, beam shapers, various filters, and anti-glare accessories. Controlled by CASAMBI, it offers fast, stable operation and supports one‑click scene preset switching. Suitable for commercial, art, residential, and office spaces, it easily creates the ideal lighting atmosphere.

TECHICAL DATA

  • 1200-2500lm
  • Integrated LED Driver
  • Aluminium lighting fixture, powder coated.
  • Flicker Free CRI97 UGR<16
  • CASAMBI
  • 3-phase Track Rails
  • CREE branded LED chips I CRI90+ 3steps

Product is Europe Standard & CE Certificate.

INTERIOR LED TRACK SPOTLIGHT

L09123

IP44

CLASS III

3-phase Track Rails

ECO Energy Saving

Aluminium material lighting fixture, powder coated.

CE certificate RoHS standard

CRI97+ 3SDCM CREE COB LED

CASAMBI

Flicker Free

Warranty 5 Years

HIGH LUMINOUS EFFICIENCY AND UNIFORM DISTRIBUTION

Code System Power
W
Output Lumen
lm

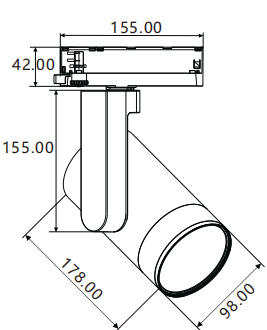

Dimension
mm
Cut Hole
mm
Power Supply
mA
L09123-20 20W 1200lm
98x178xH155mm
mm
500mA
L09123-30 30W 1800lm
98x178xH155mm
mm
750mA
L09123-40 40W 2500lm
98x178xH155mm
mm
1000mA

FEATURES

Aluminium cold forging material and powder coating. Integrated cooling system to ensure the spotlight long lifetime. Luminaires are powered by a 3-phase adaptor . An ideal solution for accent lighting. the high performances and flexibility for every project. This electric focusing track light is powerful, featuring 325° horizontal (Pan) rotation, 260° vertical (Tilt) rotation, 10°–50° electric zoom, 0%–100% brightness adjustment, and 2700K–6500K color temperature adjustment. CRI97, It is also compatible with a wide range of optical accessories, including diffusers, beam shapers, various filters, and anti-glare accessories. Controlled by CASAMBI, it offers fast, stable operation and supports one‑click scene preset switching. Suitable for commercial, art, residential, and office spaces, it easily creates the ideal lighting atmosphere.

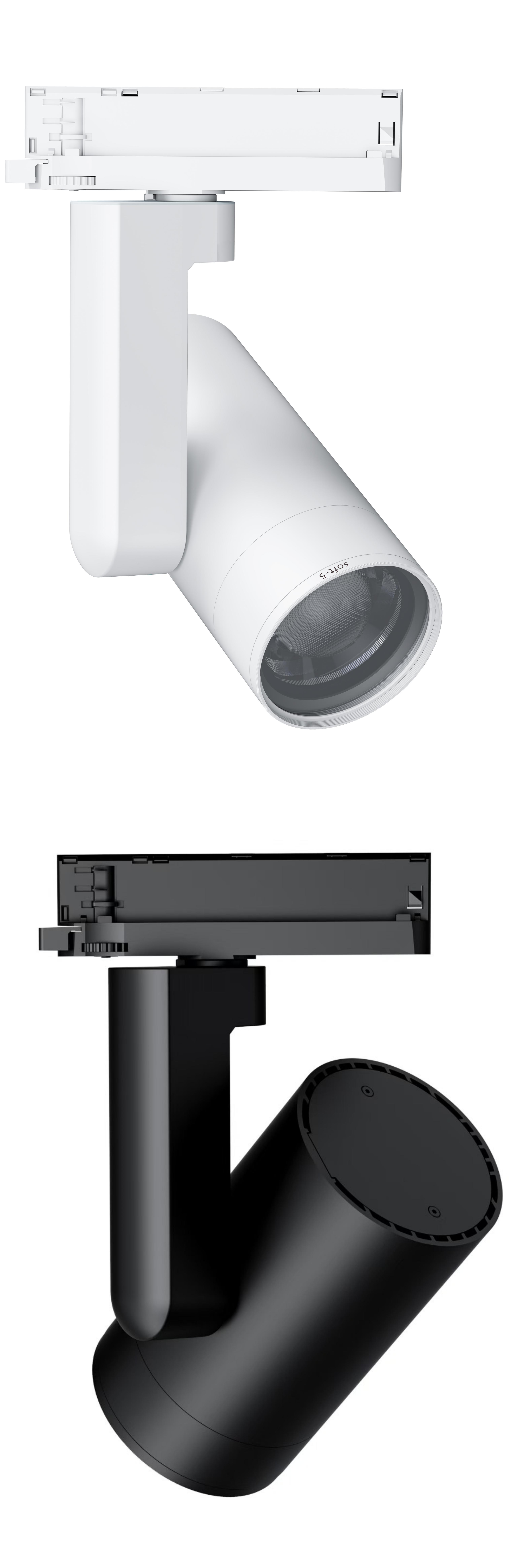

Integrated LED Driver Accessoires Beam Angle Color Temperature Finishes
20W   500mA
30W   750mA
40W   1000mA
