L03162 Spotlight    IP44

Aluminum material and powder coating. - lens version. -Flicker-Free

The spotlight achieved 90°adjustable 355°rotation, thanks to the rotation design and the right angled inclination make this product to be highly flexible and easy to handle. The light is emitted exactly where you want it. CRI90, High consistency 2-3SDCMs to ensure color temperature consistency for the quality lighting. The high performances and flexibility for every project. The ceilling recessed luminaire with a decorative metal baffle. The new lens optic creates homogeneous lighting .Uniform distribution. The basic model comes in white and black colors. Specialised optical filters can be ordered. The spotlight features a clean design and excellent anti-glare performance, providing comfortable, non-dazzling lighting. An ideal engineering lighting solution for the mid-to-high-end market. On the request it can be offered in any RAL colour or length of tube matching the specific look and feel of your design. Smart lighting, achieved CASAMBI I Dali I DMX control. 5-year warranty provided.

TECHICAL DATA

  • 560-1800lm
  • Remote LED Driver
  • Aluminum lighting fixture, powder coated.
  • Flicker Free CRI90+ UGR<19
  • DALI I Triac I 0/1-10V I Tunable white dimming
  • Ceiling, wall recessed. With a decorative trim.
  • Famous brand LED chips,- CRI90+ 3steps

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWNLIGHT

L03162

IP44

CLASS III

Ceiling, wall recessed.

Aluminum lighting fixture, powder coated.

Flicker Free

Eyes friendly CE certificate RoHS standard

CRI97 3SDCM CITIZEN COB LED

Triac I 0/1-10V I DALI dimmable

Tunable White dimming

Warranty 5 Years

HIGHLY FLEXIBLE SPOTLIGHT AND UNIFORM DISTRIBUTION

Code System Power
W
Output Lumen
lm
Dimension
mm
Cut Hole
mm
Power Supply
mA
L03162-7 7W 560lm
30xH80mm
45mm
150mA
L03162-9 9W 800lm
40xH100mm
45mm
250mA
L03162-12 12W 1100lm
52xH120mm
55mm
350mA
L03162-20 20W 1800lm
63xH140mm
55mm
500mA

FEATURES

The spotlight achieved 90°adjustable 355°rotation, thanks to the rotation design and the right angled inclination make this product to be highly flexible and easy to handle. The light is emitted exactly where you want it. CRI90, High consistency 2-3SDCMs to ensure color temperature consistency for the quality lighting. The high performances and flexibility for every project. The ceilling recessed luminaire with a decorative metal baffle. The new lens optic creates homogeneous lighting .Uniform distribution. The basic model comes in white and black colors. Specialised optical filters can be ordered. The spotlight features a clean design and excellent anti-glare performance, providing comfortable, non-dazzling lighting. An ideal engineering lighting solution for the mid-to-high-end market. On the request it can be offered in any RAL colour or length of tube matching the specific look and feel of your design. Smart lighting, achieved CASAMBI I Dali I DMX control. 5-year warranty provided.

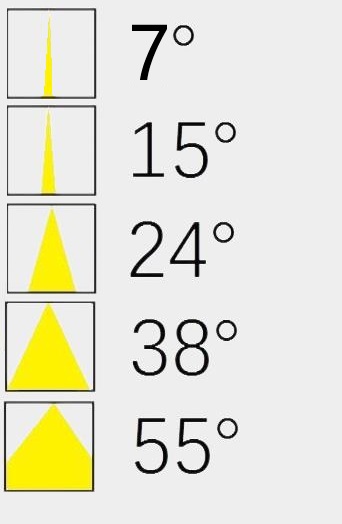

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
7W   150mA
9W   250mA
12W   350mA
20W   500mA
