Ø73

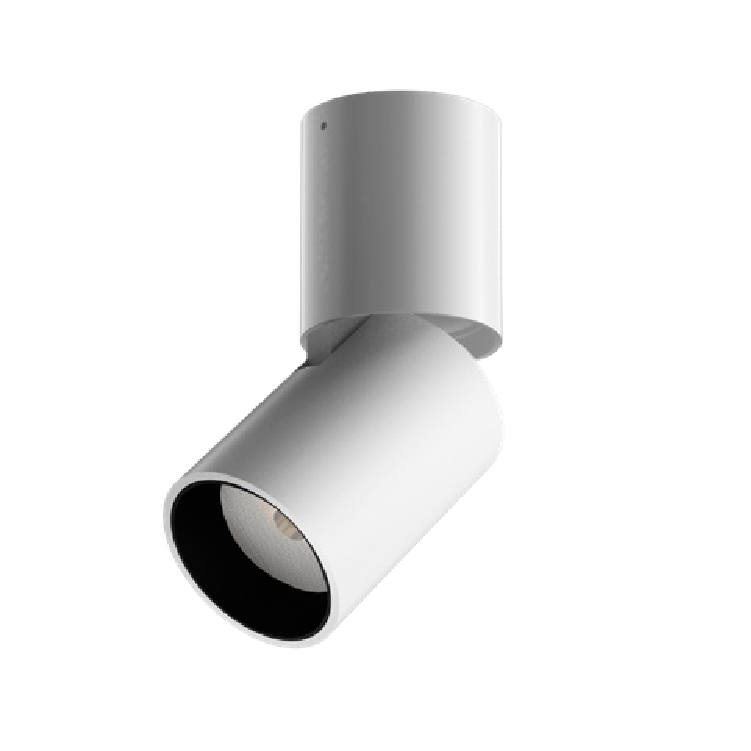

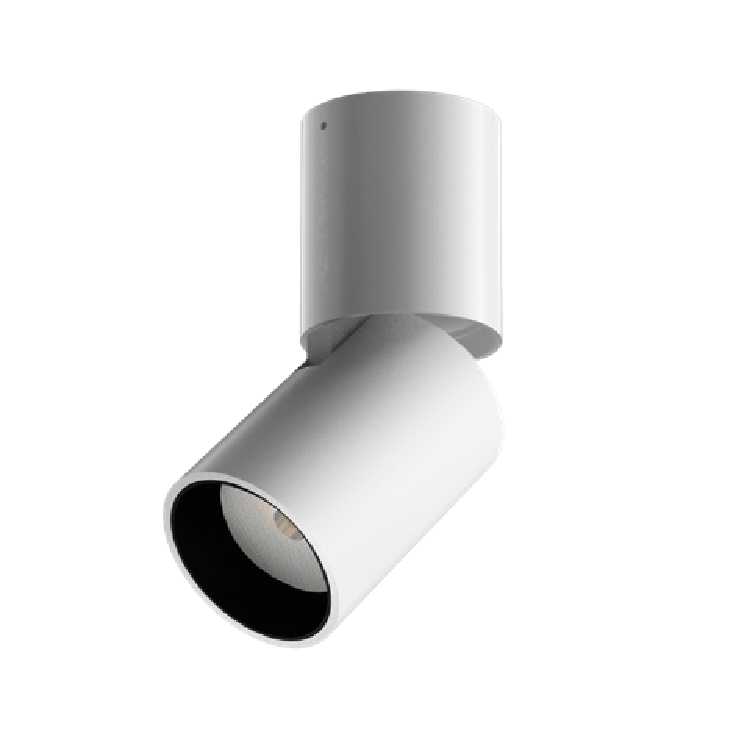

L08123 Spotlight    IP20

Aluminum materials and powder coating housing . Ceiling mounted installation.

Aluminum materials and powder coating , ceiling mounted installation. The standard products comes in diameter of Ø73mm I Ø93mm with an elongated cylindrical housing. and a metal baffle which is available in a few different color, black / white / bronze / golden / matt silver. A lens in used instead of a conventional reflector. soft lighting effect, it allows to create directional and powerful luminous flux. UGR<16 . Up to 4 types of beam angle, 15° I 24° I 36° I 50° . Plug in design achieves easy and quick installation. the product comes with a safety cable as well. CITIZEN branded COB LED Chips, 2SDCM. CRI97+ built in LED Driver. Customized size, IP rating, color finishing, beam angles, control systems and power changes are possible depending on the request and the quantity. An ideal engineering lighting solution for the mid-to-high-end market.

TECHICAL DATA

  • 600-800lm
  • Built-in LED Driver
  • Ø73 I Ø93mm diameter
  • Flicker Free CRI97 UGR<19
  • DALI I Casambi
  • Ceiling Mounted Installations.
  • CITIZEN branded COB LED chips, CRI97 2steps

Product is Europe Standard & CE Certificate.

INTERIOR LED SPOTLIGHT - CEILING MOUNTED

L08123

IP20

CLASS III

Ceiling Mounted Installation

Aluminium lighting fixture, powder coated.

Standard Ø73 I Ø93mm diameter with quick connector.

Eyes friendly CE certificate RoHS standard

CITIZEN branded COB LED CRI97 2SDCM

CASAMBI I Triac I 0/1-10V I DALI dimmable

Tunable White dimming

Warranty 5 Years

VISUAL COMFORT AND UNIFORM DISTRIBUTION

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L08123-7 7W 600lm
40xH300mm
mm
 150mA
L08123-10 10W 800lm
50xH300mm
mm
 250mA

FEATURES

Aluminum materials and powder coating , ceiling mounted installation. The standard products comes in diameter of Ø73mm I Ø93mm with an elongated cylindrical housing. and a metal baffle which is available in a few different color, black / white / bronze / golden / matt silver. A lens in used instead of a conventional reflector. soft lighting effect, it allows to create directional and powerful luminous flux. UGR<16 . Up to 4 types of beam angle, 15° I 24° I 36° I 50° . Plug in design achieves easy and quick installation. the product comes with a safety cable as well. CITIZEN branded COB LED Chips, 2SDCM. CRI97+ built in LED Driver. Customized size, IP rating, color finishing, beam angles, control systems and power changes are possible depending on the request and the quantity. An ideal engineering lighting solution for the mid-to-high-end market.

Built-in LED Driver Accessoires Beam Angle Color Temperature Finishes
7W   150mA
10W   250mA
