Ø85

L08082 Spotlight    IP20

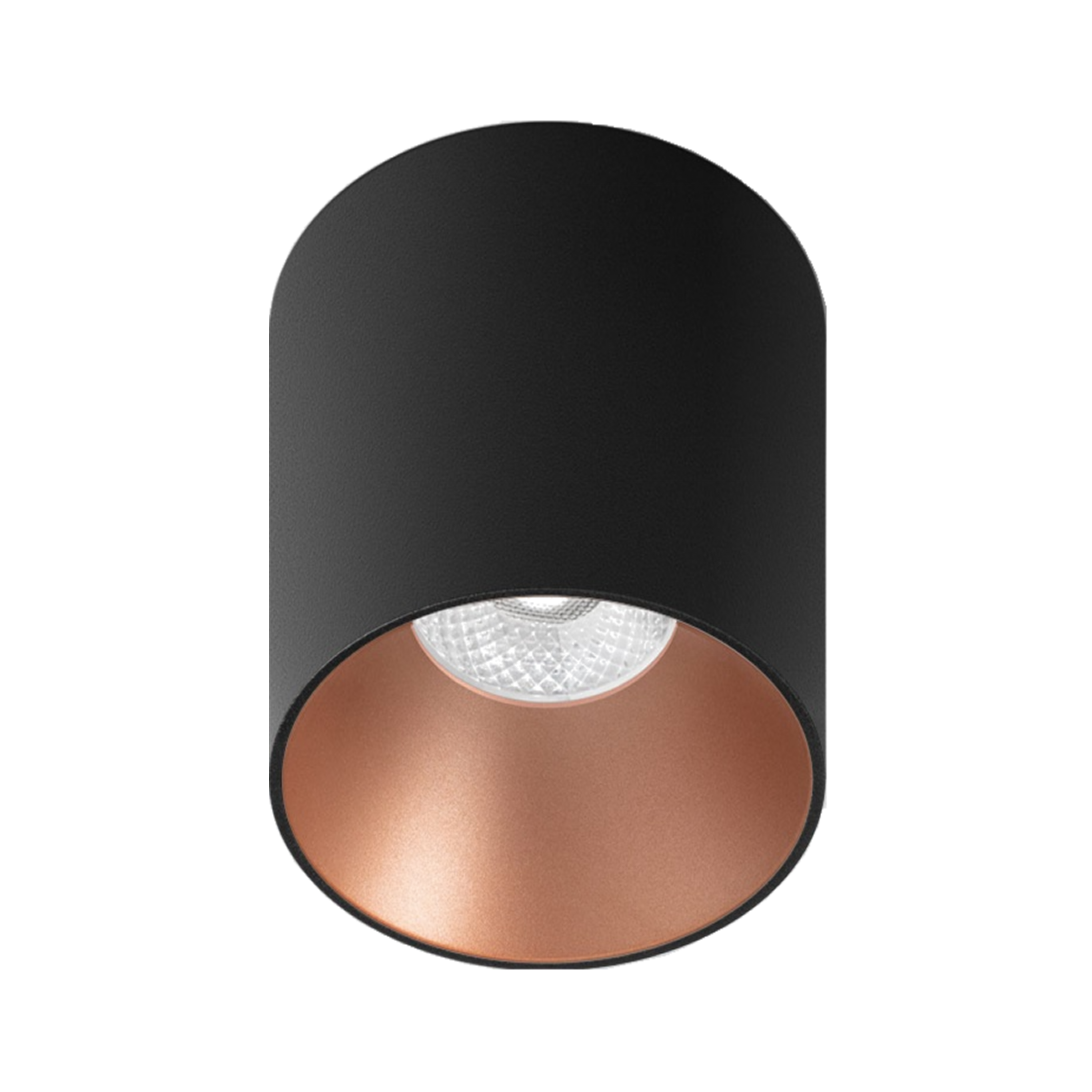

Aluminum materials and powder coating housing . Ceiling mounted installation.

Aluminum materials and powder coating , ceiling mounted installation. The standard products comes in diameter of Ø85mm with an elongated cylindrical housing. and a metal baffle which is available in a few different color, black / white / bronze / golden / matt silver. A lens in used instead of a conventional reflector. soft lighting effect, it allows to create directional and powerful luminous flux. UGR<16 . Up to 4 types of beam angle, 15° I 24° I 36° I 50° . Plug in design achieves easy and quick installation. the product comes with a safety cable as well. CREE branded COB LED Chips, 2SDCM. CRI90+ built in LED Driver. Customized size, IP rating, color finishing, beam angles, control systems and power changes are possible depending on the request and the quantity. An ideal engineering lighting solution for the mid-to-high-end market.

TECHICAL DATA

  • 1000lm
  • Built-in LED Driver
  • Ø85 mm diameter
  • Flicker Free CRI90+ UGR<19
  • DALI I Triac dimming
  • Ceiling Mounted Installations.
  • CREE branded COB LED chips, CRI97 2steps

Product is Europe Standard & CE Certificate.

INTERIOR LED SPOTLIGHT - CEILING MOUNTED

L08082

IP20

CLASS III

Ceiling Mounted Installation

Aluminum die casting lighting fixture, powder coated.

Standard Ø85mm diameter with quick connector.

Eyes friendly CE certificate RoHS standard

CREE branded COB LED CRI90+ 2SDCM

CASAMBI I Triac I 0/1-10V I DALI dimmable

Tunable White dimming

Warranty 5 Years

VISUAL COMFORT AND UNIFORM DISTRIBUTION

Code System Power
W		 Output Lumen

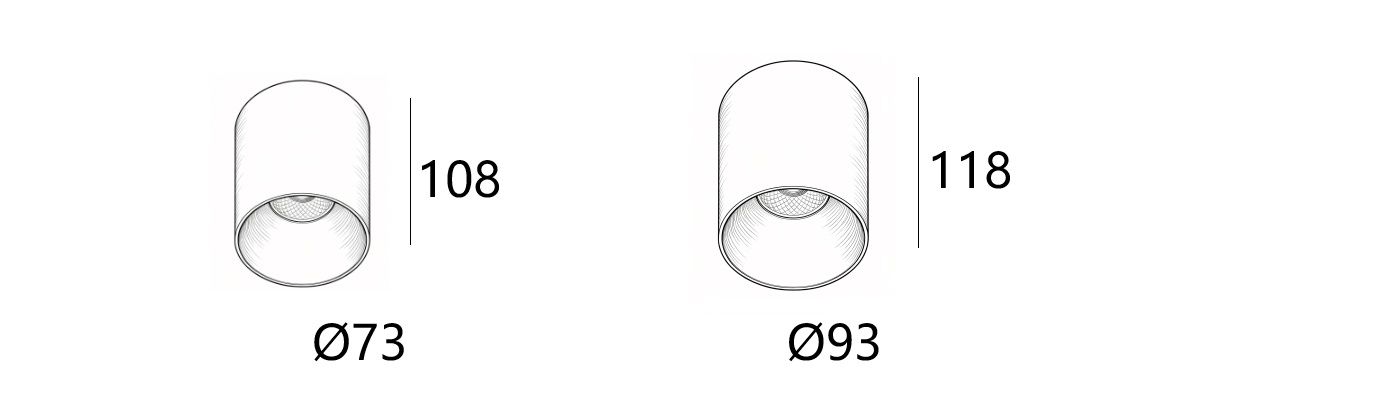

lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L08082-12 12W 1000lm
85xH74mm
mm
 300mA

FEATURES

Aluminum materials and powder coating , ceiling mounted installation. The standard products comes in diameter of Ø85mm with an elongated cylindrical housing. and a metal baffle which is available in a few different color, black / white / bronze / golden / matt silver. A lens in used instead of a conventional reflector. soft lighting effect, it allows to create directional and powerful luminous flux. UGR<16 . Up to 4 types of beam angle, 15° I 24° I 36° I 50° . Plug in design achieves easy and quick installation. the product comes with a safety cable as well. CREE branded COB LED Chips, 2SDCM. CRI90+ built in LED Driver. Customized size, IP rating, color finishing, beam angles, control systems and power changes are possible depending on the request and the quantity. An ideal engineering lighting solution for the mid-to-high-end market.

Built-in LED Driver Accessoires Beam Angle Color Temperature Finishes
12W   300mA
